Usage

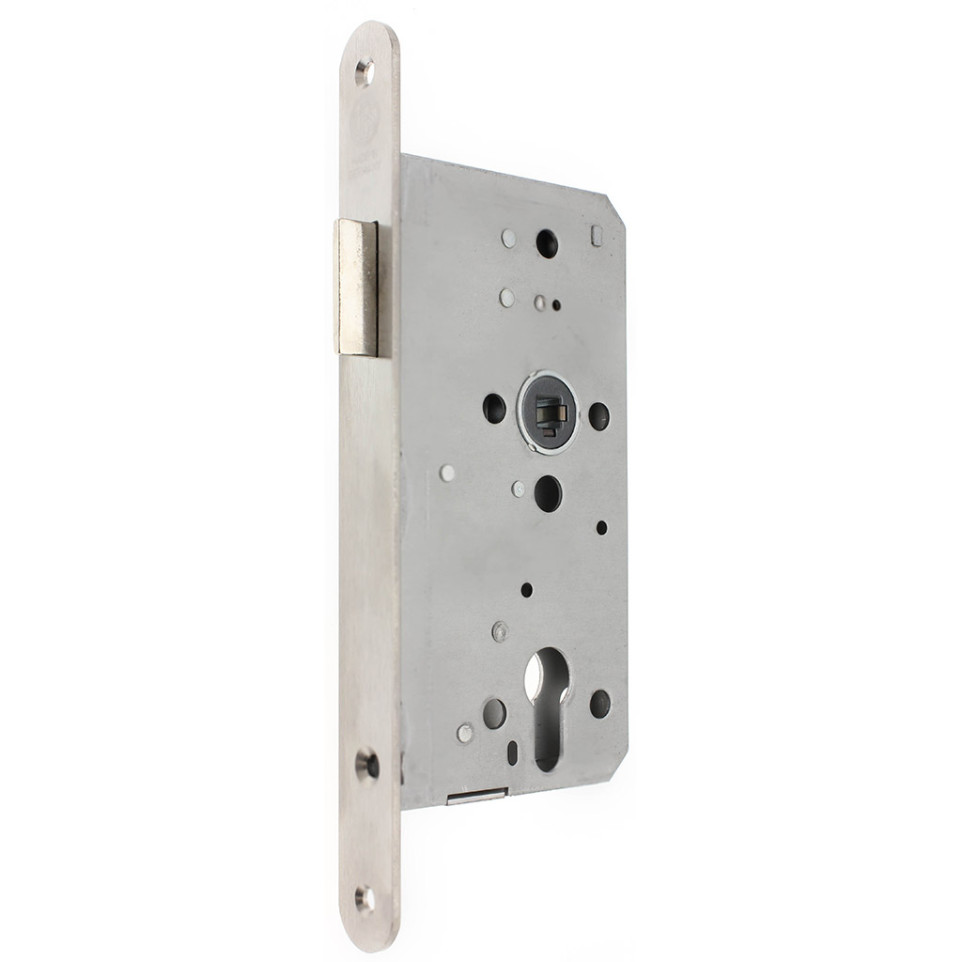

The CES 334-01-SL PZW left-handed notch lock is designed for securing single-leaf doors in residential, commercial, or technical settings where a 1 point locking system is required. Ideal for installation on inward-opening doors with DIN right-hand orientation.
Advantages
- Provides reliable basic security for internal or external doors using a single latch mechanism.
- Compact design fits narrow profiles and modern door constructions without compromising aesthetics.
- Simple mechanism allows quick installation and low maintenance demands over time.
- Durable materials ensure extended service life under regular use conditions.
- Lacks advanced features such as multi-point locking or electronic access; suitable primarily for standard security needs.[1][2]
Specifications
- The lock features a galvanized steel case with a precision latch bolt operation and PZ euro profile cylinder compatibility.[4][10]
- Suits DIN standards for reliability; can be used on fire-resistant or heavy-duty wooden, metal, or composite doors as part of regulated installations.[4]
- Main measurements: Backset of 55 mm, center distance (follower to cylinder) of 72 mm, faceplate width of roughly 24 mm rounded; overall robust construction supports repeated cycles without deformation.[4]
- Differentiated by its handedness—left/DIN right configuration—and suitability for single-point security applications in public or private buildings.[4][10]
How it works
This lock operates via a projecting latch that secures the door when engaged. The user inserts a key into the euro profile cylinder to actuate the mechanism from either side, allowing straightforward locking and unlocking in day-to-day access scenarios.
