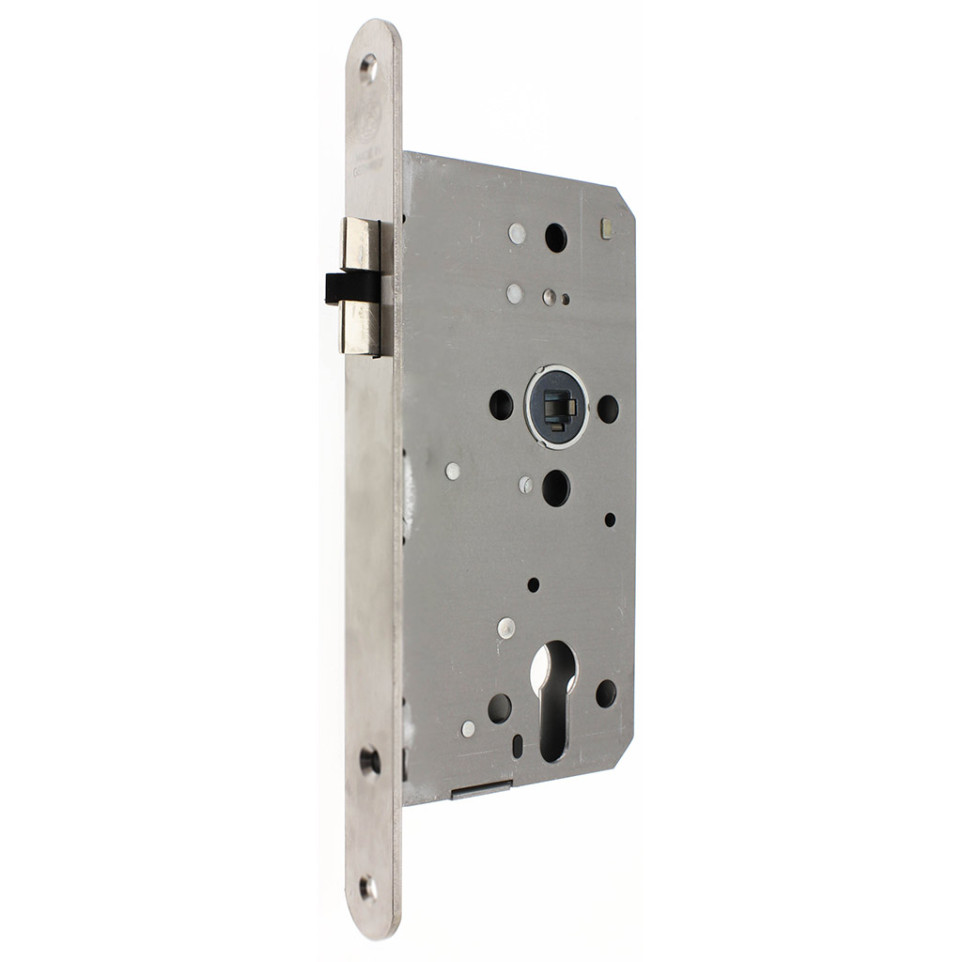

DIN Mortice Lock for Projects Lancant Anti-Friction 334-01 PZW 55/72 Stainless Steel TA24 Left/DIN R / pc

DIN Mortice Lock for Projects Lancant...

Estimated delivery date :  Friday 12 June
€32.18 HT
In stock (2)

Ref : FGT-113095

Variantes

Anti-friction latch CES 334-01 PZW 55/72 Stainless Steel TA24 Right/DIN R / pce Anti-friction latch CES 334-01 PZW 55/72 Stainless Steel TA24 Right/DIN R / pce
Quantity

Add to your shopping List

You must be logged


Related Products

Description

Usage

The Serrure DIN Lancant anti-friction 334-01 PZW 55/72 INOX TA24 gauche/DIN R is designed for securing external doors in public or commercial buildings, where reliable one-point locking and ease of operation are required.

Advantages

  • Manufactured with brushed austenitic stainless steel AISI 304 for enhanced corrosion resistance
  • Anti-friction latch mechanism reduces wear and ensures smooth door movement
  • DIN-standard design simplifies installation on compatible doors with left push (DIN R) opening direction
  • High-strength electrogalvanized steel case increases durability and resists deformation under stress
  • Latch only; does not include strike plate, requiring separate purchase if needed

Specifications

  • Têtière: Rounded faceplate, width of 24 mm; latch operated by profile cylinder (PZ)
  • Main materials: Brushed AISI 304 stainless steel front plate (3 mm thick), heavy-gauge electrogalvanized steel housing
  • Centring distance: Standard DIN measurement at 72 mm; backset/input at 55 mm for precise fitting in European door preps;
  • No included strike plate; compatible with standard DIN strikes and suitable for left-handed applications (push left/DIN right)

How it works

The lock installs into the designated mortise of a door. Once fitted, the latch engages when the door is closed, providing secure one-point locking that can be disengaged via a key or thumbturn using a standard profile cylinder.

See more

Product Details

Brand CES
Finishing inox
Use type public
Lock type lançant seul
Centre distance (mm) 72
Opening direction poussé gauche (DIN R)
Input (mm) 55
Headrest têtière arrondie 24 mm
External door oui
Key type PZ
FGT-113095
