Product

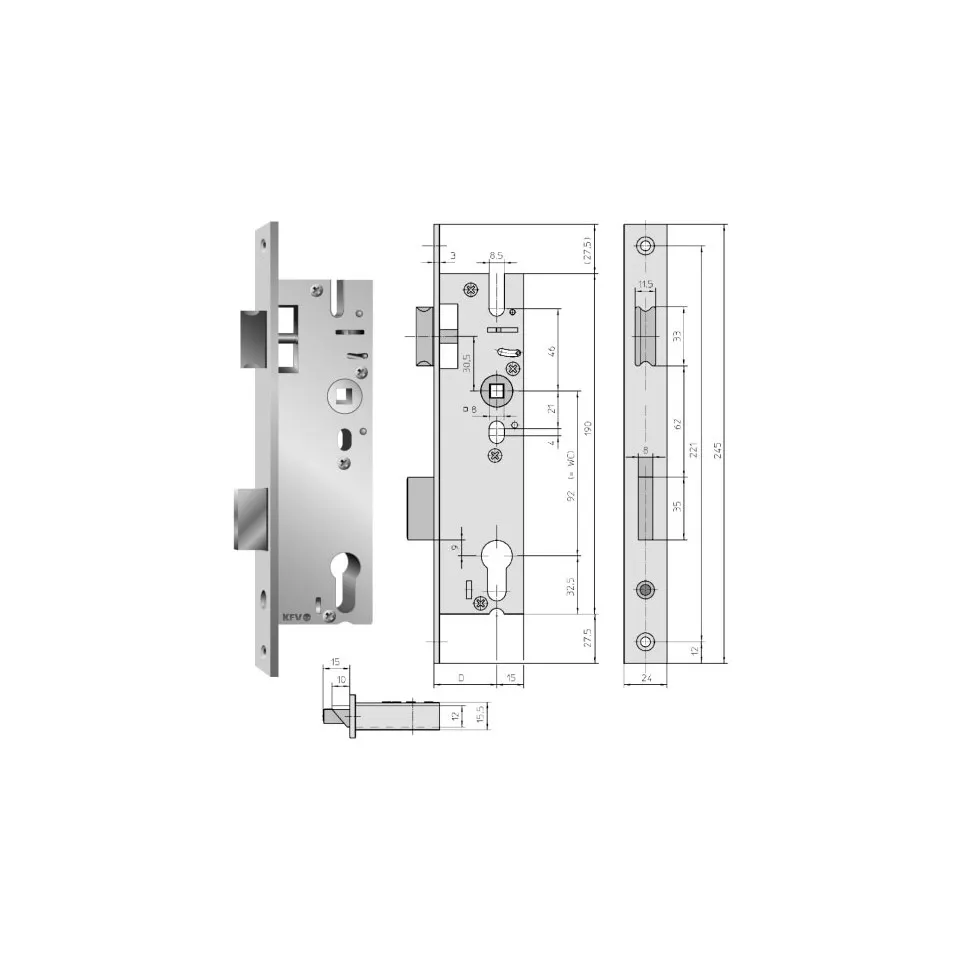

Single-point mortise lock for profile cylinders, designed for tubular frame doors. Suitable for residential and commercial use, this KFV model features a robust galvanized case and is adaptable for both left and right-hand installations.
Specifications
- Zinc-plated lock case with a flat steel faceplate measuring 245 mm x 24 mm
- Bright nickel-plated 10 mm latch bolt and single-turn 15 mm deadbolt
- 8 mm square spindle follower; profile cylinder entrance 40 mm; 92 mm center distance
- Reversible latch without disassembly, DIN 18251-2 and 12209 tested, class 1 security standard
- Enhanced security with steel pins for setup protection; supplied without strike plate
Usage
The lock is installed into tubular frame doors to provide secure single-point locking. Its reversible latch allows flexible use on either door orientation without requiring disassembly. Compatible with standard Euro profile cylinders, it ensures secure closure in one full turn with a nickel-plated deadbolt.
FAQ
-
What type of doors is this lock compatible with?
- It is designed for tubular frame doors with a profile cylinder.
-
Is the lock reversible for left or right-handed doors?
- Yes, the latch is fully reversible without the need for disassembly.
-
What are the main dimensions of the faceplate?
- The faceplate measures 245 mm in length and 24 mm in width.
-
Can this lock be used with any standard Euro profile cylinder?
- Yes, it is compatible with standard profile cylinders featuring a 40 mm entrance.
-
Does the product include a strike plate?
- No, the lock is supplied without a strike plate.
