Product
The Litto M2452 single-point notch lock is engineered for secure locking of PVC, metal, and wooden doors. Designed for right-hand installation, it combines a robust construction with versatile applications for residential and commercial environments.
Specifications

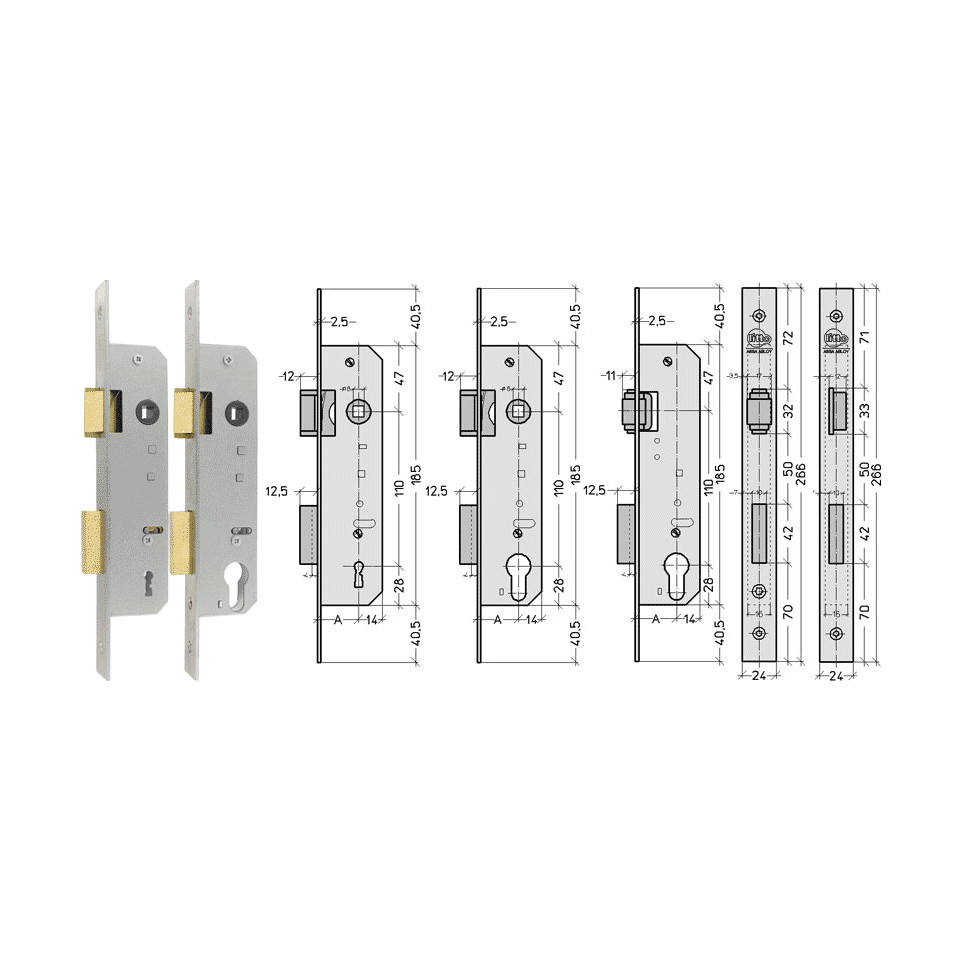

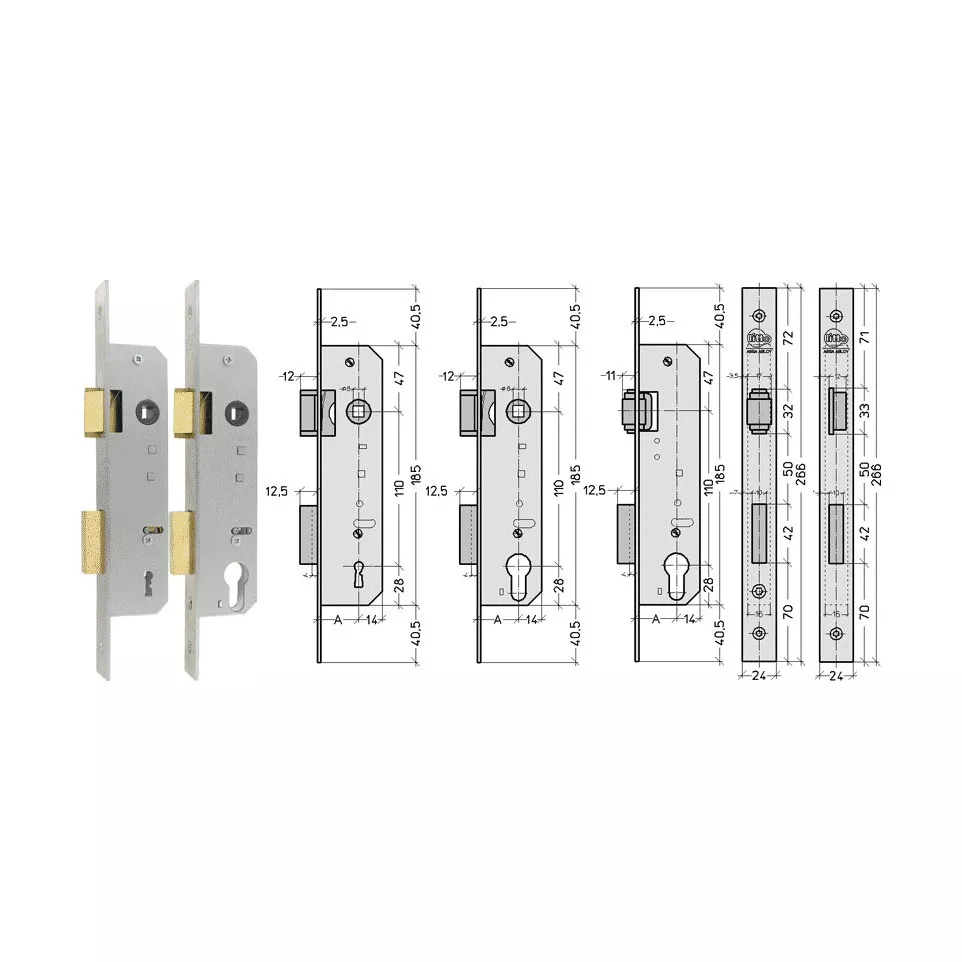

- Closed epoxy-coated case with stainless steel flat faceplate (24 mm width, 266 mm length); features a launching spring and handle counter-spring
- Durable build using brass for the 4-lever mechanism, supplied with 2 nickel-plated keys and 18 unique locking variations
- 12.5 mm deadbolt travel; 8 mm spindle; one-turn deadbolt
- Balancer system integrates latch and deadbolt functions
Usage
Install the lock on compatible PVC, metal, or wooden doors by securing the case and connecting the spindle and keys. The lock operates with a brass 4-lever system, ensuring controlled access and smooth locking. Two keys enhance convenience and security for daily use.
FAQ
-
What door types is the Litto M2452 suitable for?
The lock is designed for PVC, metal, and wooden doors.
-
How many keys are included?
This lock set comes with two nickel-plated keys.
-
What is the deadbolt travel distance?
The deadbolt moves 12.5 mm per activation.
-
How many unique locking options are available?
There are 18 distinct locking variations in this series.
-
Is the lock compatible with cylinder systems?
The M2452 uses a 4-lever key system; for PZ cylinder compatibility, see models M2652 and M5652.
