Litto SELECT 5M Euro Profile Cylinder with Shortened Cam / pc
€26.64
In stock
Usage

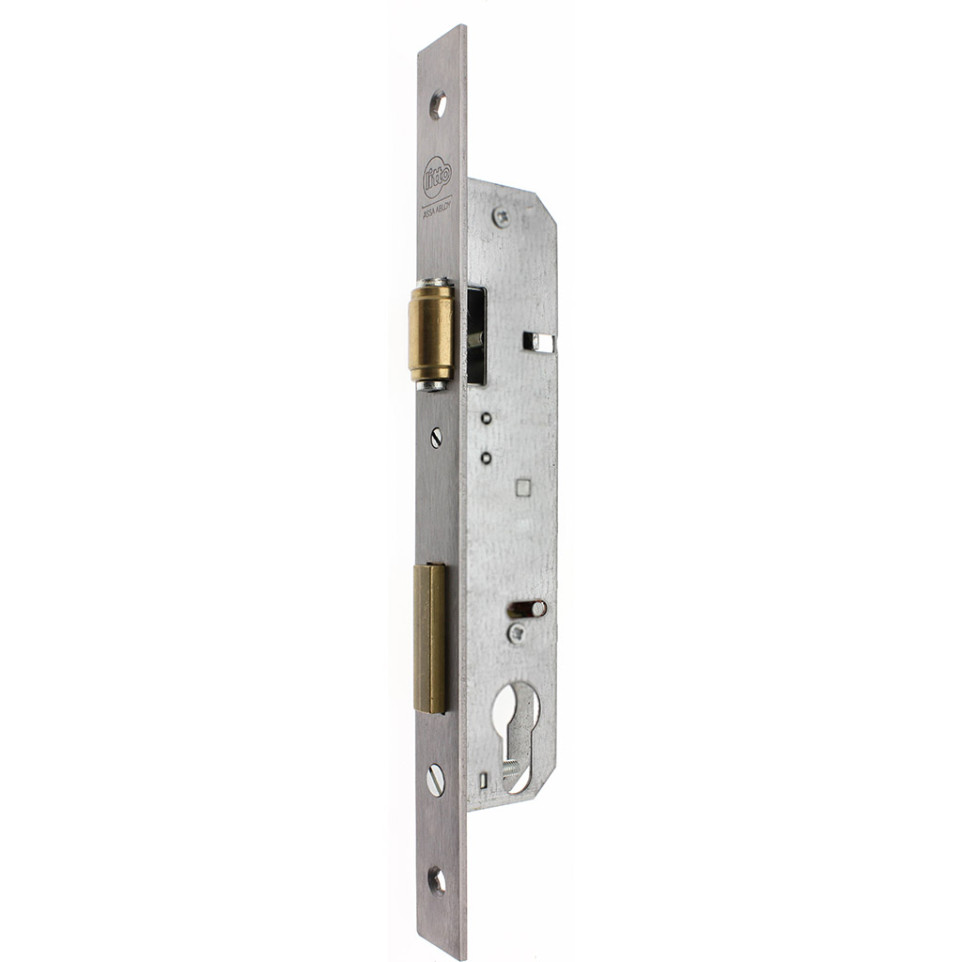

The Serrures Litto M5652 is designed for secure locking of PVC, metal, and wooden doors in residential or commercial environments where a single-point notch lock with a PZ cylinder is required.
Advantages
- Compatible with PVC, metal, and wood doors for versatile installation contexts
- Reversible design allows use on both left- and right-opening doors without extra modification
- Durable epoxy-lacquered case provides long-lasting protection against corrosion and wear
- Smooth roller latch mechanism minimizes door frame damage over repeated use
- PZ cylinder compatibility enables integration with standardized keying systems; however, requires a specific shortened tailpiece (10 mm)
Specifications
- The lock body is constructed from steel with an epoxy lacquer finish for enhanced durability; the latch components feature brass elements.
- Suits doors requiring moderate security; suitable for exterior applications in compliance with residential standards.
- Main dimensions: backset of 23 mm; distance between handle axis and cylinder (center distance) of 110 mm; deadbolt travel of 12.5 mm; square spindle size (noix): 8 mm.
- Differentiating features include a reversible spring latch, one-turn deadbolt operation, compatibility with PZ-profile cylinders featuring a shortened cam/panneton (10 mm), and a rectangular faceplate measuring approximately 24 mm wide.
How it works
The lock operates by turning the compatible PZ cylinder to extend or retract the deadbolt into the door frame. The roller latch holds the door closed without locking until engaged via key or thumbturn. Its reversible mechanism allows quick adaptation to either opening direction without disassembly.
