Ferrure d'assemblage à excentrique Hettich VB 36D panneaux 16mm / pce

Usage

The Hettich VB 36D eccentric connector is designed for assembling 16 mm thick furniture panels in frames, cabinets, and shelving. It enables precise, concealed joining of side and shelf elements in wood-based materials for indoor furniture projects.

Advantages

• Allows sturdy, friction-locked connections using the proven eccentric latching principle
• Supports assembly even with a gap up to 2 mm between panels for ease during installation
• Pressed into double holes spaced at 32 mm—compatible with standard System 32 drilling patterns
• Eccentric can be tightened from above if a through hole is provided in the panel, increasing flexibility during assembly and disassembly
• The load capacity depends on the panel quality; not suitable for heavy structural loads or outdoor use

Specifications

• Manufactured with die-cast zinc construction and nickel-plated finish for durability and corrosion resistance [3][4]
• Suits panels with thickness of exactly16 mm [4][7]

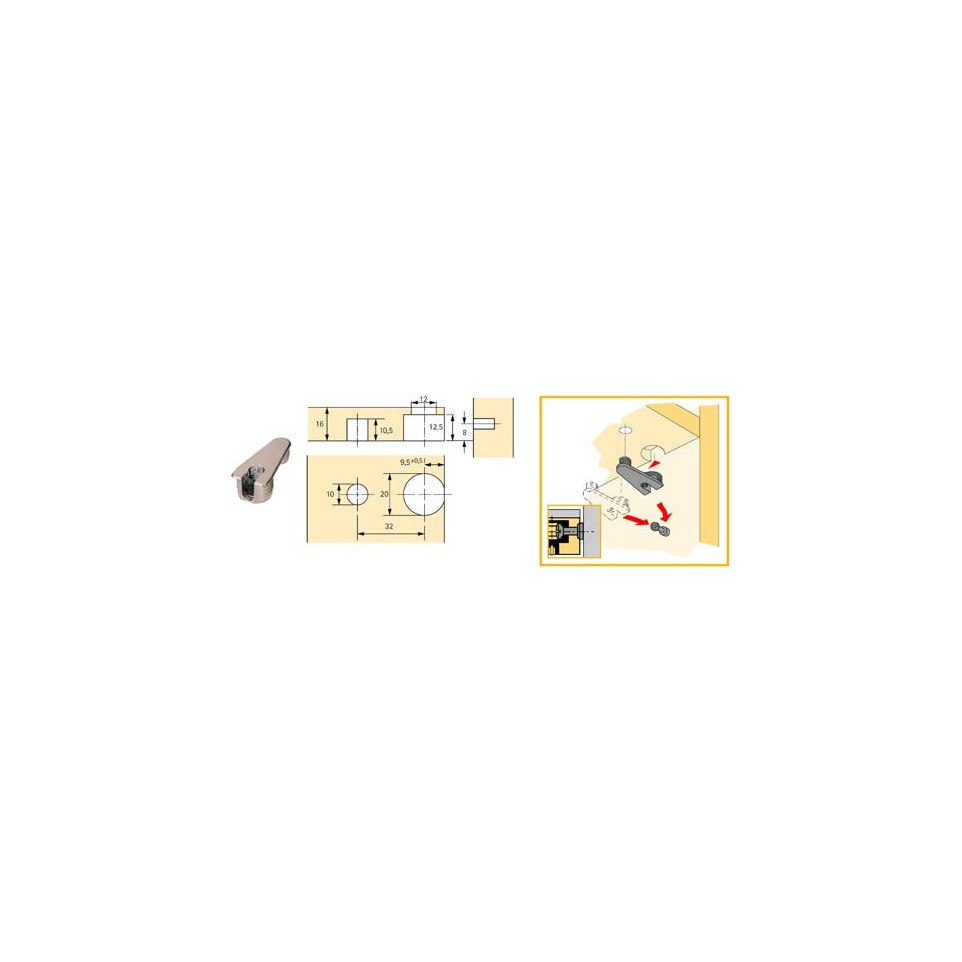

• Requires two entry holes: one at Ø20 mm and another at Ø10 mm; holes spaced at standard System 32 intervals (32 mm apart) [4][7]
• Spherical eccentric mechanism ensures secure locking action between connected parts [4][7]

How it works

This fitting is inserted into pre-drilled double holes on both connecting panels. Turning the cam tightens the joint by drawing together the components via an internal latch mechanism, ensuring solid alignment without visible fasteners from outside surfaces.
