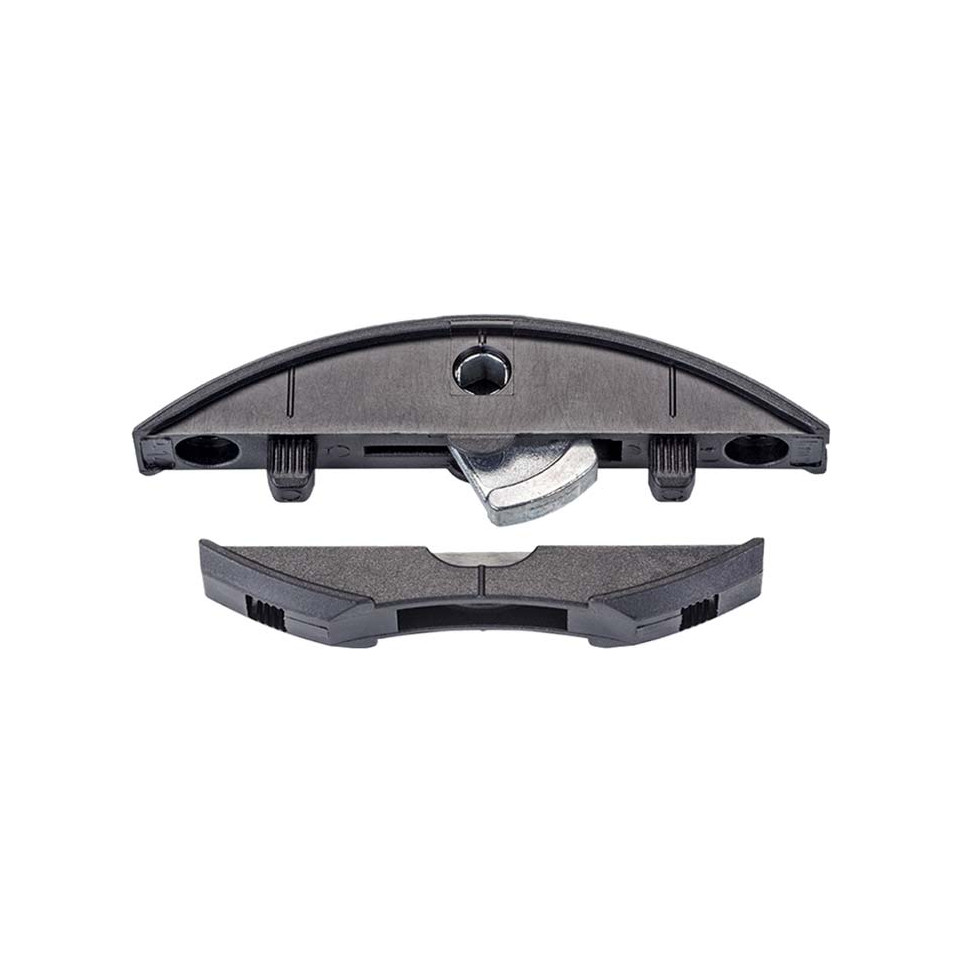

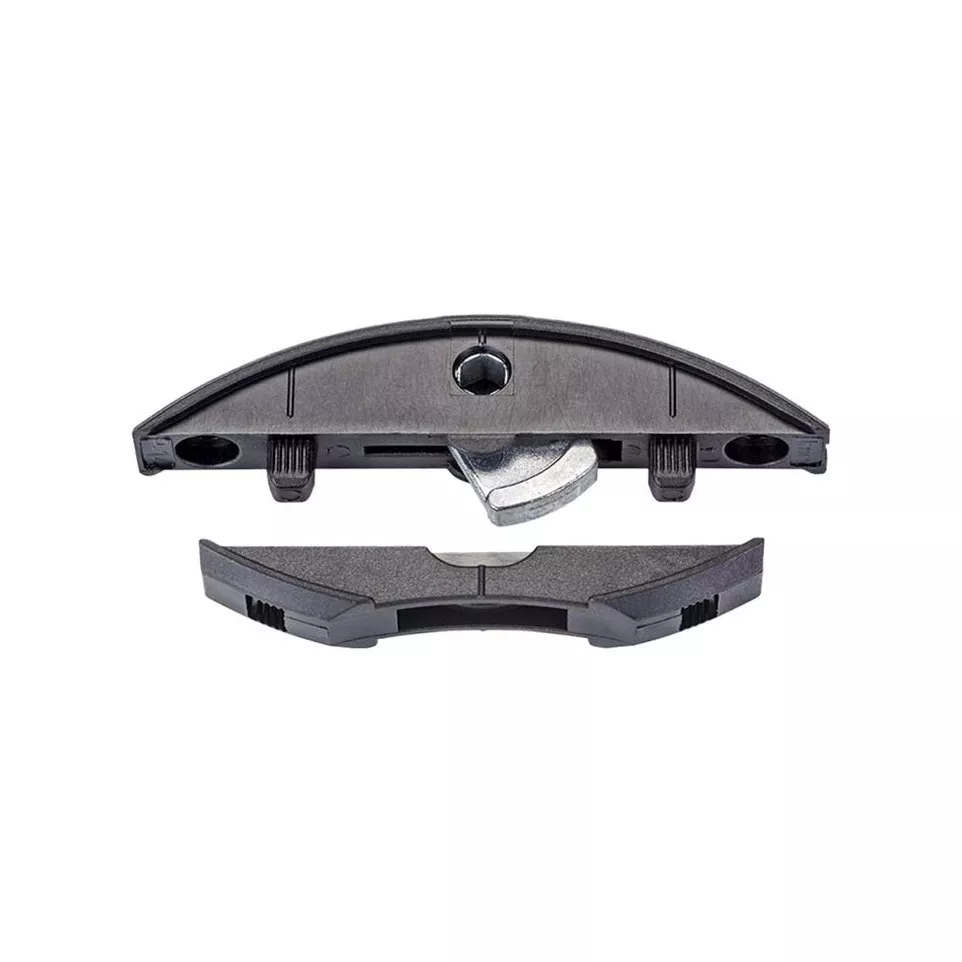

Lamello Clamex P-14, 80 pieces

Product

The Lamello Clamex P-14 is a detachable furniture assembly connector designed for fast, tool-free installation in furniture frames and woodworking projects. Ideal for 90° connections with panels as thin as 16 mm and for mitre joints from 19 mm, it offers versatility for both professional and DIY applications.

Specifications

• Made from fiberglass-reinforced plastic with a zinc die-cast lever for secure, long-lasting performance
• Compact installation depth of 14 mm; connector size 64 × 27 × 9.7 mm
• Suitable for particle board, MDF, plywood, hardwood, and softwood panels
• Installation tolerance: longitudinal ± 1 mm, radial ± 1 mm
• Supports high clamping force and detachment for reconfiguration or transport

Usage

Clamex P-14 connects panels via the P-System groove, locking securely with a lever through a minimal 6 mm access hole. It requires no glue or screws, enabling quick assembly and disassembly for both permanent and temporary joints—especially well-suited for cabinets, display structures, and modular furniture.

FAQ

1. What panel thicknesses are compatible with Clamex P-14?
   For 90° joints, a minimum panel thickness of 16 mm is required; for mitre joints, 19 mm panels are recommended.

2. Is special equipment needed for installation?
   The connector is installed using a P-System groove cutter such as the Lamello Zeta P2 or a compatible CNC machine.

3. Can the connector be reused after disassembly?
   Yes, Clamex P-14 is designed for multiple assembly and disassembly cycles without loss of performance.

4. Does Clamex P-14 require glue or screws?
   No, it achieves secure connections through a mechanical latch, eliminating the need for adhesives or traditional fasteners.

5. Is the connection visible after assembly?
   The connector's access point is minimal and can be concealed with a cover cap, maintaining a clean and aesthetic finish.
