Brass Wear Rings for 13x8x3mm Hinges / pc
€0.80
In stock
Product

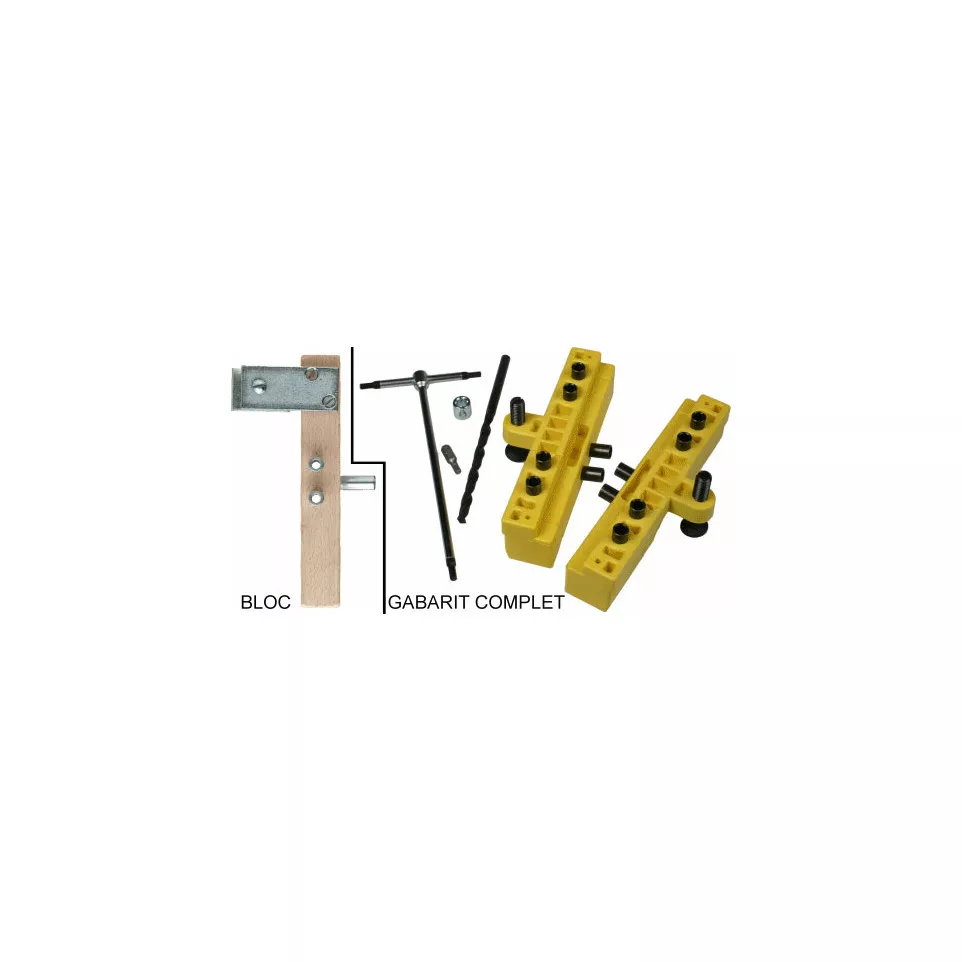

The Gabarits with Ø16mm pins and 3 rods "HERCULA" is a professional jig set designed for precise installation of Otlav 320 Ø16mm hinges. Ideal for carpenters and installers working with doors or frames requiring accurate hinge placement.
Specifications
- Includes two jig blocks, a stepped drill bit, an adjustment key, and a hex screwdriver bit
- Designed specifically for use with Otlav 320 Ø16mm hinges
- Manufactured with robust materials to ensure durability and repeatable accuracy
- Three-rod configuration provides enhanced stability during setup
- Supports standardized installation processes for hinges, plugs, and related accessories
Usage
Position the jig blocks on the workpiece according to the desired hinge location. Use the included stepped drill bit for guided drilling at Ø16mm. Adjust settings with the supplied key for optimal fit. The hex bit assists in securely driving screws or pins during installation.
FAQ
-
What is included in the set?
- The set contains two jig blocks, a stepped drill bit, an adjustment key, and a hex screwdriver bit.
-
Which hinge models are compatible?
- It is designed for Otlav 320 Ø16mm hinges.
-
Can this jig be used for both left and right installations?
- Yes, the design supports symmetrical installation on either side.
-
Is the jig reusable?
- Yes, the robust construction allows for repeated use on multiple projects.
-
Does the kit require specific tools for operation?
- Only standard drilling and fastening tools, as the required bit and key are included.
