Usage

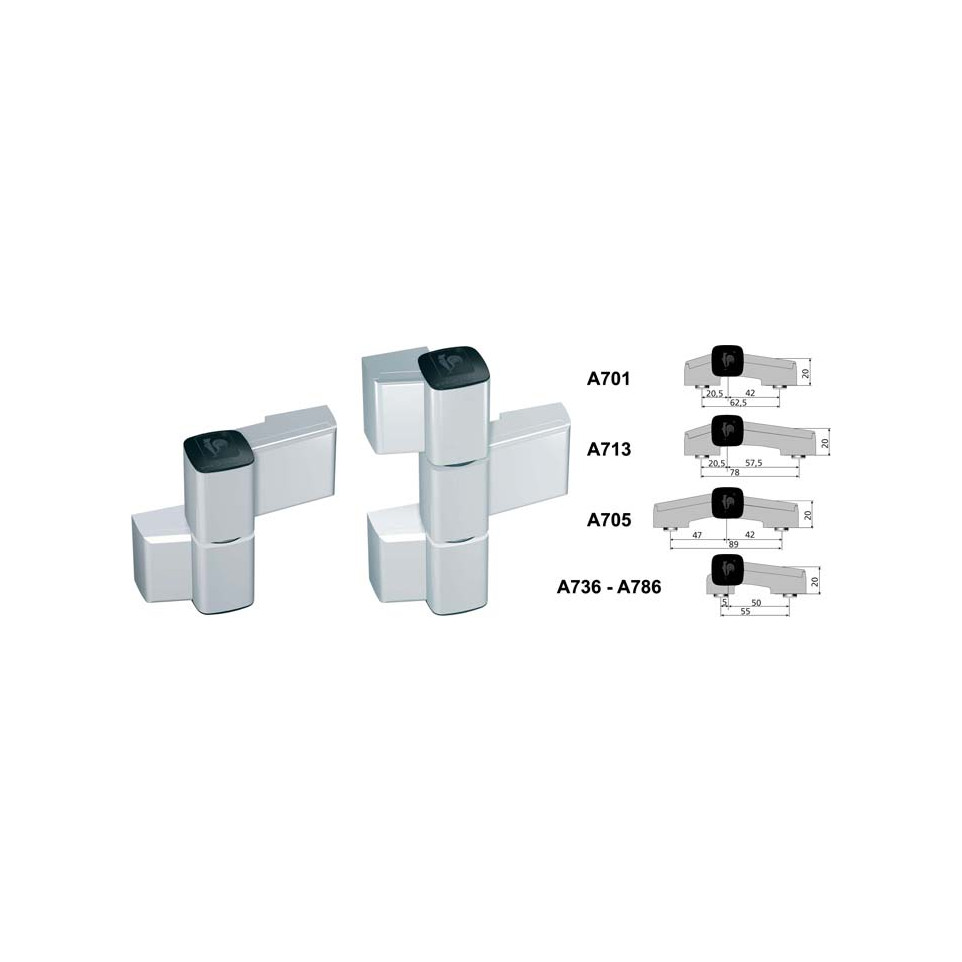

The Dr. Hahn AT 60 hinge with two or three blades is designed for mounting aluminum doors, offering reliable support and precise adjustability in high-use commercial, industrial, or residential environments.
Advantages
- Adjustable in six directions even while the door leaf is installed, allowing effortless alignment
- Capable of supporting up to 220 kg (three-blade version) or 140 kg (two-blade version), depending on the profile design
- High corrosion resistance ensures lasting performance indoors and outdoors
- Bearing points are maintenance-free—no lubrication required for long-term reliability
- Certified to EN 1935:2002 standard, hinge class 14, confirming robust quality and safety compliance
Specifications
- The hinge body is crafted from extruded aluminum with a white RAL 9016 powder-coated finish for aesthetic integration with most doors.
- This model meets CE requirements and is certified according to EN 1935:2002 (hinge class 14).
- The three-blade variant supports up to 220 kg; the two-blade variant supports up to 140 kg. The axis measures 55 mm; recouvrement (overlay) 10 mm.
- This universal hinge fits most common aluminum and steel profile systems and can be used for inward- or outward-opening doors. It allows horizontal adjustment of ± 2.5 mm and vertical adjustment between +3 mm/–2 mm.
How it works
The Dr. Hahn AT 60 hinge mounts onto aluminum door profiles using anchor screws or reinforcement plates. Once installed, its design enables quick multi-directional adjustments—without removing the door—ensuring consistent operation throughout intensive use cycles.
