Product

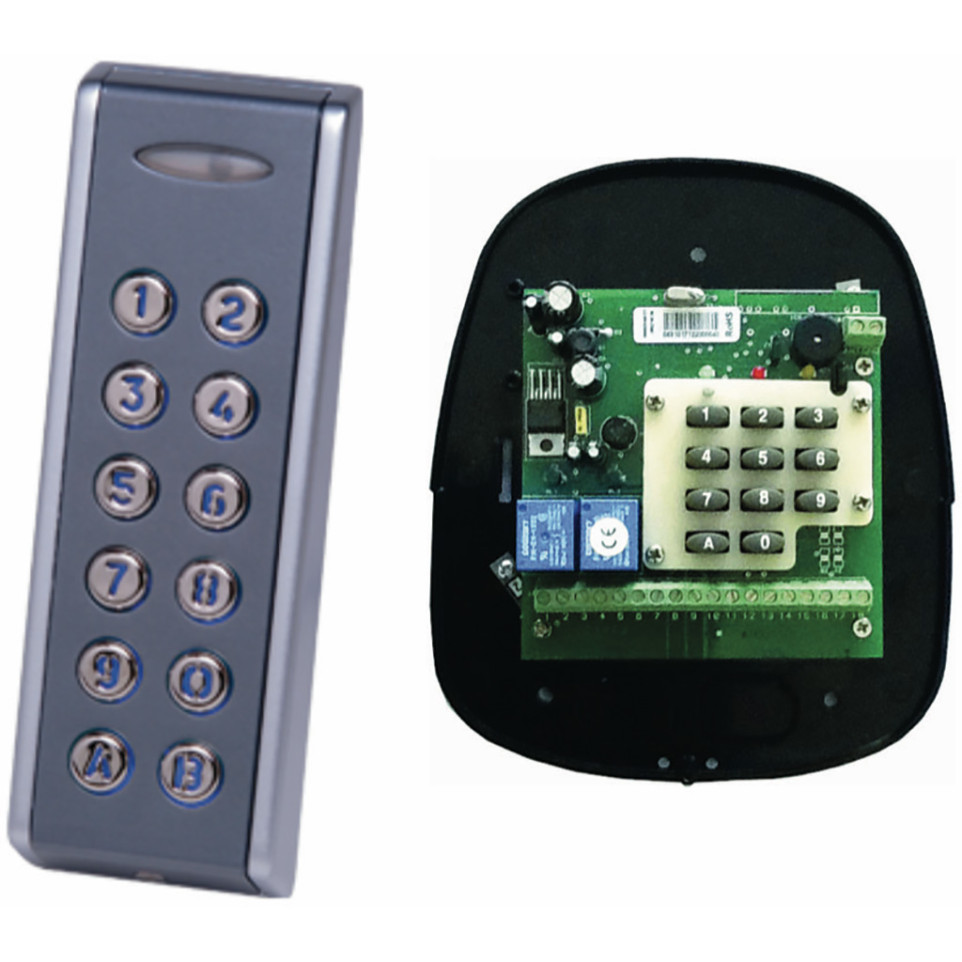

The INOX-C keypad with remote electronics is a narrow-format, anti-vandal zinc alloy keypad engineered for high-security access control in harsh or demanding environments. It is designed to function exclusively when connected to a central control unit.
Specifications
- Rugged design with zinc alloy construction for vandal resistance
- Remote electronic module for added security and maintenance flexibility
- Supports industry protocols: CODIX, DATA/CLOCK, WIEGAND 26 and 30 (selectable at installation)
- Weather-resistant: IP67 protection ensures performance against dust and water ingress
- Operating temperature: -15°C to +75°C; tolerates 0% to 95% non-condensing humidity
- Power supply: 12 Vdc via communication bus
- Current draw: 25 mA at rest, up to 800 mA during operation
- User codes: Stores up to 99 individual codes
- Dimensions: 150 mm x 50 mm x 25 mm; Weight: 570 g
- Visual indicators: 3 LEDs (red, green, yellow) for keypress feedback, programming, and code status
- Acoustic feedback: integrated buzzer for keypress and status prompts
- Backlighting: keypad illuminated for 10 seconds after each use
- Interface: 1-meter, 12-conductor cable; 3-wire CODIX communication bus
Usage
Connect the INOX-C keypad to your access control system’s central unit using the supplied cable. Select the appropriate communication protocol during installation. Enter user codes on the illuminated, vandal-resistant keypad; feedback is provided via LEDs and buzzer. Its robust design ensures secure operation in both indoor and outdoor high-risk areas.
FAQ
-
What protocols does this keypad support?
The keypad supports CODIX, DATA/CLOCK, and both WIEGAND 26 and 30 protocols for seamless integration with a variety of access control systems.
-
Can this keypad be used outdoors?
Yes, it has an IP67 rating and operates from -15°C to +75°C, making it suitable for outdoor and industrial settings.
-
How many user codes can be stored?
It can store up to 99 distinct user codes for secure and flexible access management.
-
What is the keypad made of?
The INOX-C uses a zinc alloy casing for enhanced resistance to vandalism and environmental stress.
-
How is installation performed?
Installation requires connecting the keypad to a central unit with the provided 1-meter cable and selecting the desired protocol during setup.
