Security door handle set - Tigra Dieckmann 72 PZ handle / pc

Security door handle set - Tigra Dieckmann 72 PZ handle / pc
Security door handle set - Tigra Dieckmann 72 PZ handle / pc
Security door handle set - Tigra...
Security door handle set - Tigra...

Estimated delivery date :  Wednesday 10 June
€90.75 HT
In stock

Ref : FGT-100250

Variantes

Security handle set - Tigra Dieckmann 110 PZ handle / pc Security handle set - Tigra Dieckmann 110 PZ handle / pc
Quantity

Add to your shopping List

You must be logged


Description

Usage

The Garniture de sécurité poignée Tigra Dieckmann 72 PZ is designed for secure and durable door operation in residential or commercial environments, offering enhanced protection for entrance doors with European profile cylinders.

Advantages

  • Robust construction in solid aluminium for both exterior and interior plates
  • Integrated hardened steel reinforcement (2.0 mm) on the exterior plate increases security against forced entry
  • Cylinder protector with internal spring adapts to cylinder projections from 12 to 17 mm
  • Quick and straightforward installation, thanks to internal M6 double screw fixation
  • Suits door thicknesses from approximately 50–65 mm by trimming screws; minor drawback: compatibility limited outside this range

Specifications

  • The set includes robust aluminium outer (15 mm thick) and inner (6 mm thick) escutcheons, reinforced externally with a hardened steel insert of 2.0 mm thickness[1][3].
  • Cylinder protector is self-adjusting to cylinder projection between 12–17 mm[1][3]. Meets common standards for mechanical security fittings.

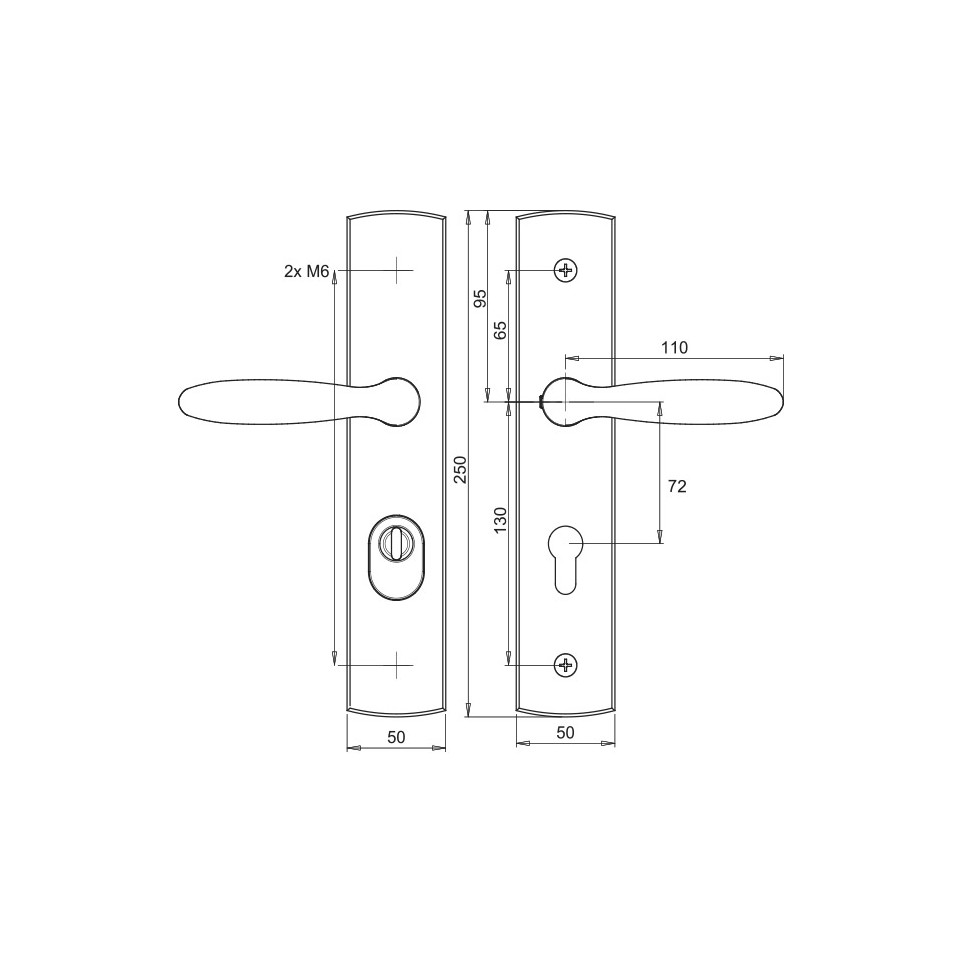

  • Shaft size: square spindle of Ø8 mm; fixing centres at a distance of 195 mm; suitable for profile cylinder locks with a centre distance of72mm PZ[1][3]. Designed for doors from ~50–65mm thick using included trimmable screws.
  • Differentiating features include invisible screw fixing from inside (M6), special threaded square spindle tip (M12), and an integrated protector spring mechanism for the cylinder[1][3].

How it works

This door handle set mounts with concealed internal screws. When installed, the reinforced outer plate resists mechanical attacks while the adaptive cylinder guard protects against tampering. Suitable for standard European profile cylinders on entrance or security doors.

See more

Product Details

Brand Dieckmann
Finishing F1
Material used aluminium anodisé
Trim ensemble sur plaque
Use type public intensif
Sécurity oui
Footprint PZ
Centre distance (mm) 72
Suitable for outdoor oui
