Half set of Hoppe New-York 92 PZ door fitting, model 1810, designed for use with profile doors. Features a cream finish, cast aluminium handle and backplate, and robust technical components for secure installation.
Specifications
- Model 1810 lever in cast aluminium; backplate 3357N also in cast aluminium alloy with return spring

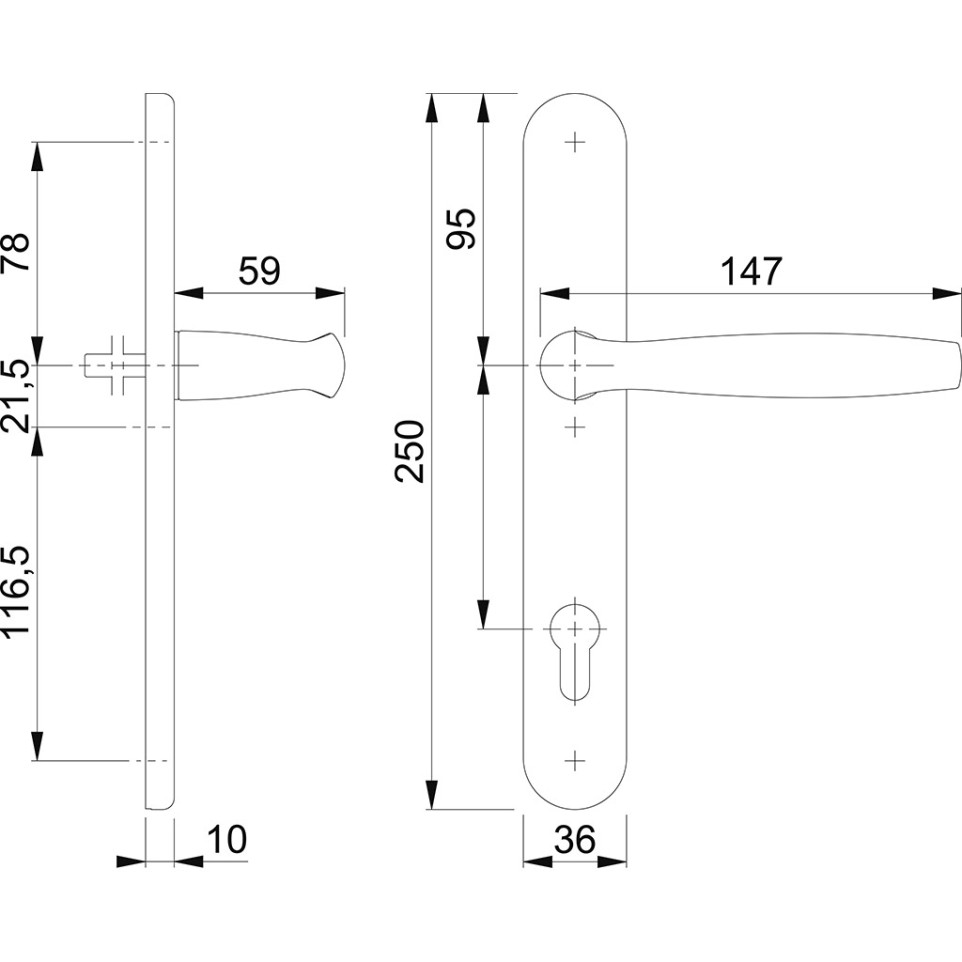

- Clip-on cover: 250 x 36 x 10 mm; includes mounting sleeve for easier fixing
- Meets DIN EN 1906 standards for strength and durability; resistant to wear with maintenance-free slide bearing
- For keyhole distance: 92 mm, compatible with Euro profile cylinders
- For door thickness: 67–72 mm; 8 mm spindle; M6 through bolts for secure, visible interior fixing
Usage
Install the Hoppe New-York 92 PZ half set on profile doors requiring a European cylinder and 92 mm keyhole spacing. The handle provides smooth operation and a secure grip, with a return spring to ensure the lever returns to its horizontal position after use. Suitable for both residential and commercial applications demanding reliability and simple maintenance.
FAQ
-
What door thickness does this handle set fit?
- It is designed for doors with a thickness of 67–72 mm.
-
Is the handle set reversible for left or right-handed doors?
- Yes, the set can be used on both left and right-handed doors.
-
What is the material of the handle and backplate?
- Both are made from high-quality cast aluminium alloy for durability.
-
Does the handle include a return spring mechanism?
- Yes, the backplate is equipped with an integrated return spring.
-
Is the installation hardware included?
- The set includes all necessary mounting components, including the fixing sleeve and M6 bolts.
