The Hoppe Atlanta 1530 door handle set combines a lever handle and security handle with integrated cylinder protection, offering robust security and smooth operation for residential and commercial doors. Designed for use with multipoint locks (92 mm PZ), in a brown RAL 8077 finish.
Specifications
- Cast aluminium handle and interior base (3357N) with return spring for longevity and consistent action
- Hardened steel exterior base (3359ZA) with return spring, providing anti-tamper protection
- Cylinder protection: anti-pull, hardened steel collar, covers cylinders projecting 10–18 mm

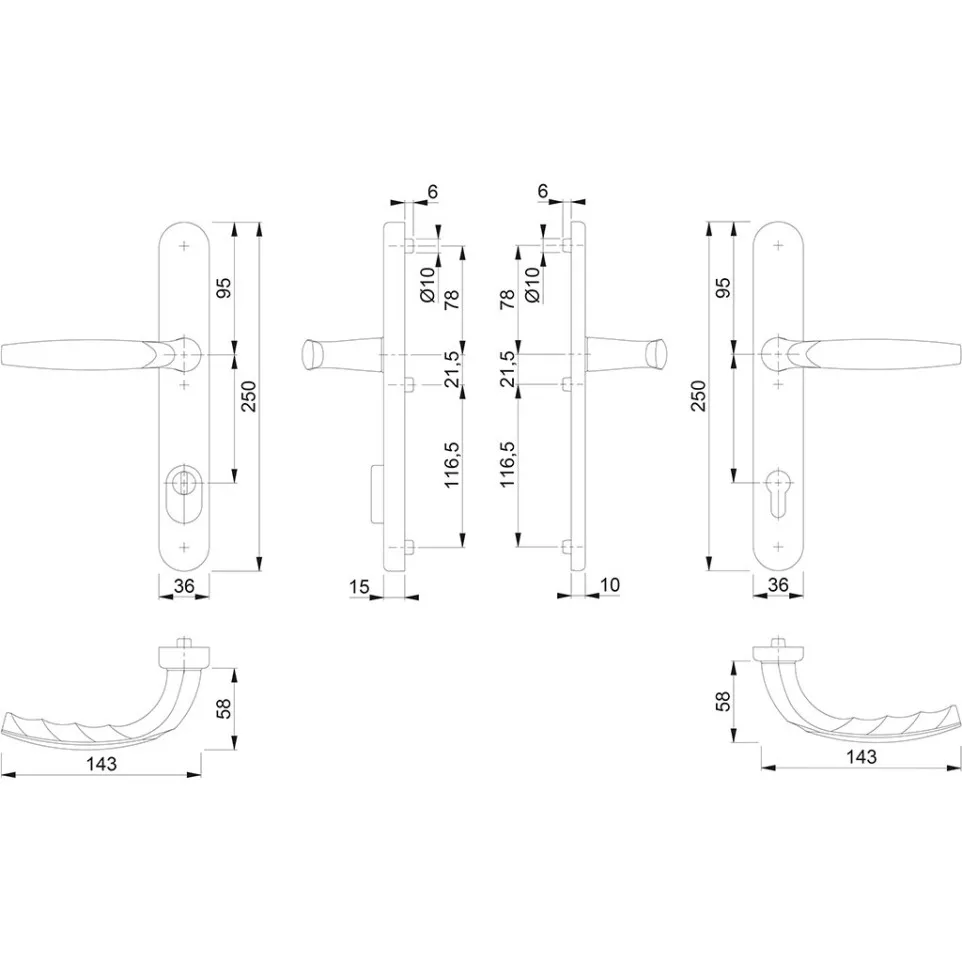

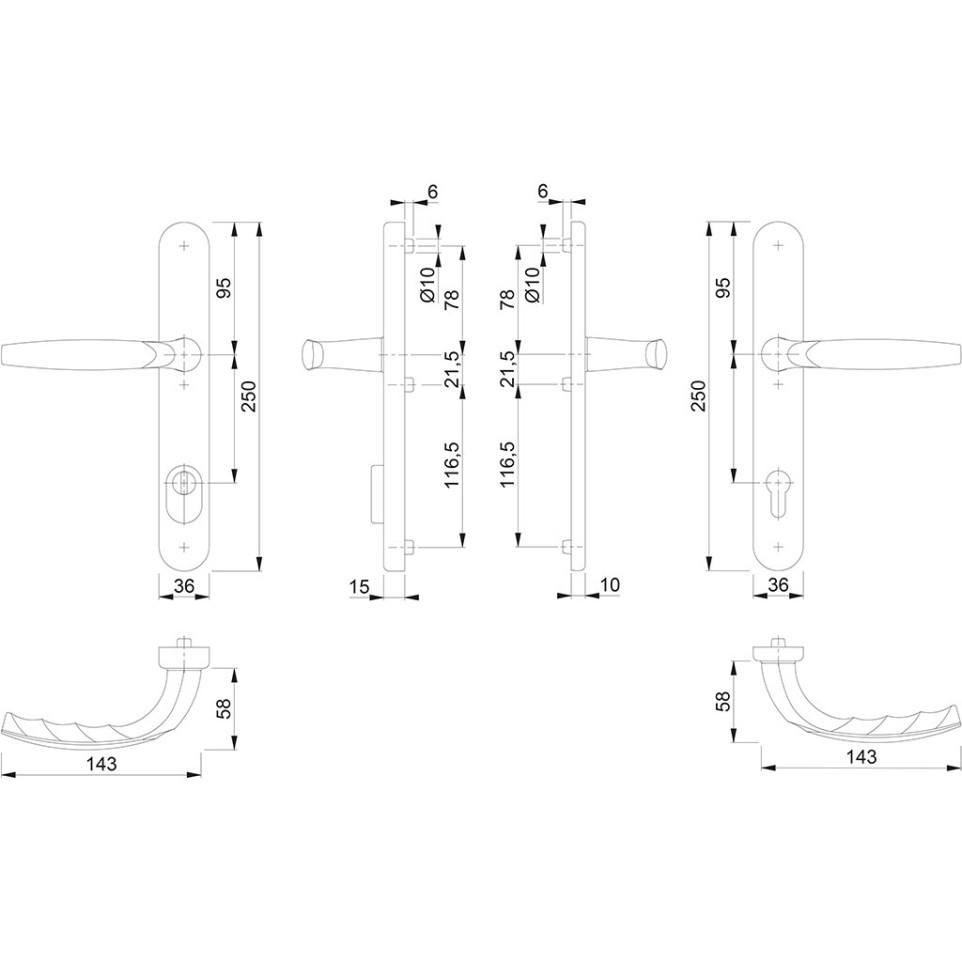

- Snapped-on cover plates: inside 250 × 36 × 10 mm; outside 250 × 36 × 15 mm
- Positioning pegs: 10 mm diameter for secure installation
- Fixing: Invisible M6 screws for clean aesthetics
- Certified to SKG®*** security standard
- Supplied with fixing screws and spindle for doors 67–72 mm thick
Usage
Install the Hoppe Atlanta 1530 handle set on doors with 67–72 mm thickness and a 92 mm PZ centre lock. It secures the cylinder with a robust anti-pull shield, provides smooth handle return, and fits left or right-handed doors. Ideal for doors needing advanced security and certified protection.
FAQ
-
What door thickness is this handle set compatible with?
It is suitable for doors 67–72 mm thick.
-
Does the set include all necessary fixings?
Yes, fixing screws and spindle are included for installation.
-
What security features does this handle provide?
It includes SKG®***-certified anti-pull protection for the cylinder and hardened steel elements.
-
Can it be used on both left and right-handed doors?
Yes, the design is reversible for both orientations.
-
What cylinder projections are supported?
Cylinder protection covers projections from 10 mm up to 18 mm.
