Usage
This security handle and pull set is designed for exterior doors requiring enhanced protection of the lock cylinder, making it suitable for commercial, residential, or public building entrances.
Advantages
- Integrated cylinder protection increases resistance against forced entry.
- Durable aluminum construction offers corrosion resistance and longevity.
- PZ92 profile ensures compatibility with most European profile cylinders.
- Clean white (RAL 9016) finish enhances modern door aesthetics.
- Suits a range of door thicknesses from approximately 67 to 72 mm; check technical details before installation[2][3].
Specifications

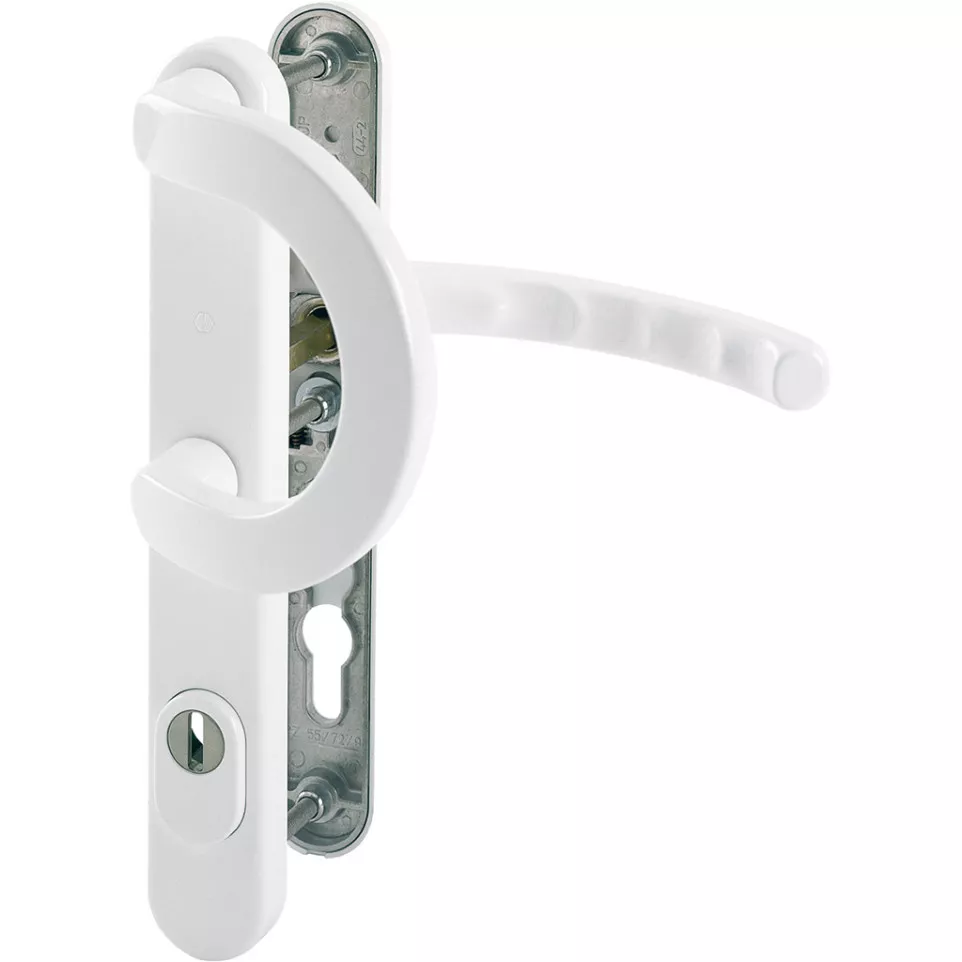

- The set includes a lever handle and pull, narrow plate style, constructed from robust anodized aluminum for both indoor and outdoor use[3][7].
- Cylinder protection shield meets SKG*** security rating standards; tested to DIN EN requirements for durability and anti-burglary performance[9][2].

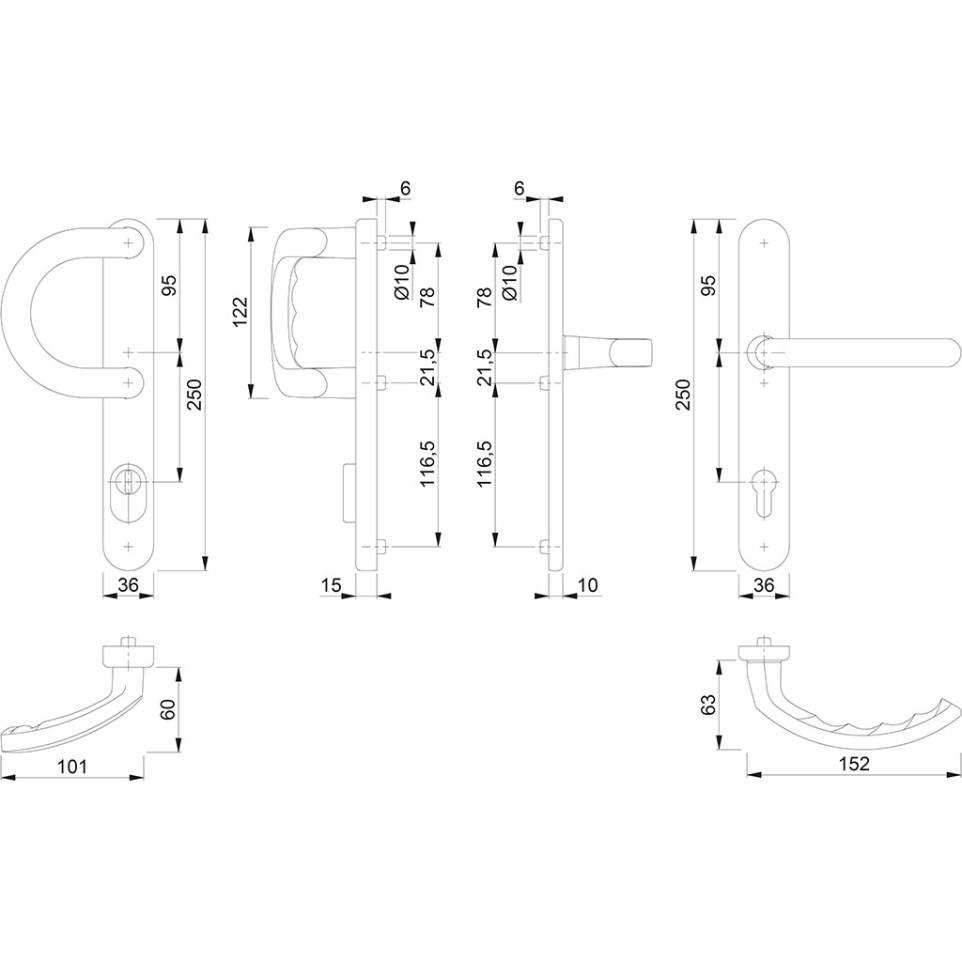

- PZ (distance between key cylinder center and handle): precisely 92 mm. Compatible with standard euro-profile cylinders. Suited for doors with thickness in the range of ~67–72 mm[3][5].
- The solid mounting system utilizes an M8 spindle. The maintenance-free slide bearing ensures smooth operation over time[9]. The finish is white RAL 9016 powder coating.
How it works
This set replaces existing handles on compatible profile doors. The exterior shield covers the lock cylinder to prevent drilling or extraction attempts, while the lever allows smooth opening from inside. Installation uses concealed screws for added tamper resistance.
