Usage

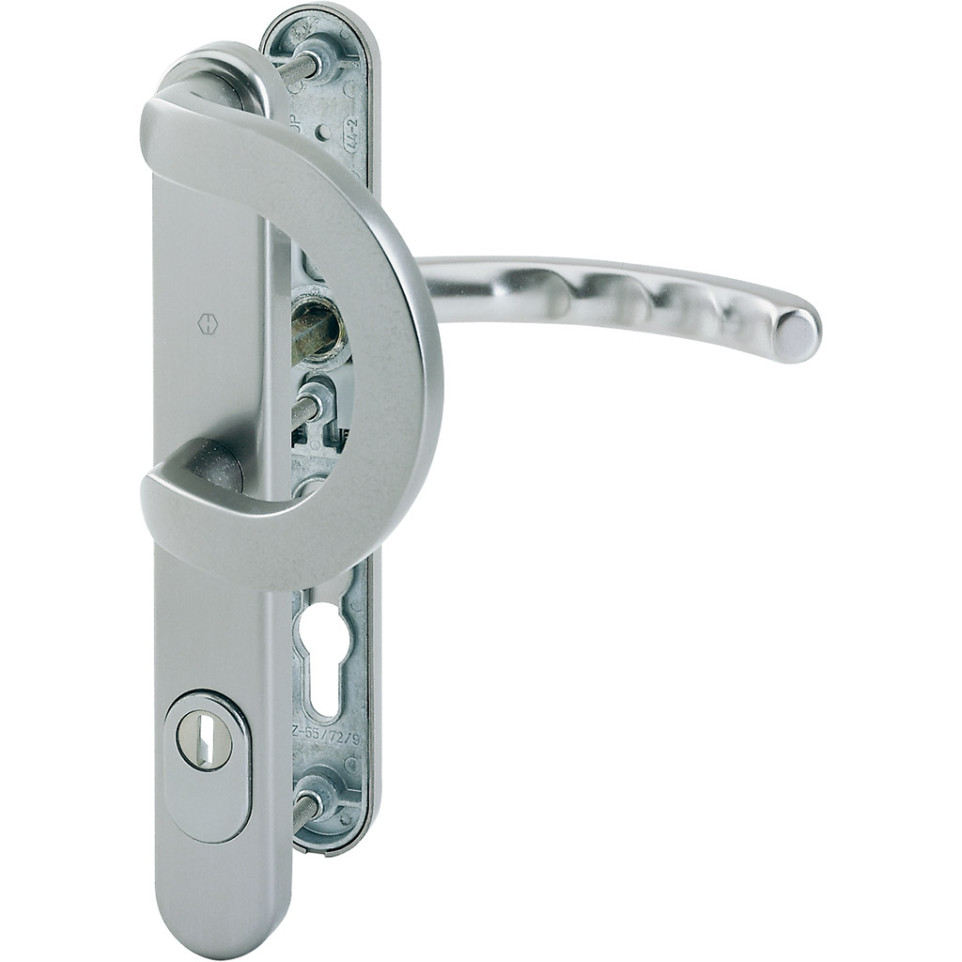

This Hoppe Luxembourg 92 PZ security handle and pull set is designed for entrance doors requiring elevated protection. Ideal for residential or commercial settings, it combines robust security features with a functional pull grip and integrated cylinder protection.
Advantages
- Provides reinforced burglary resistance with steel cylinder guard
- Compatible with profile cylinders spaced at 92 mm PZ standard
- Suits door thicknesses from 67 to 72 mm, ideal for most entry doors[1][4]
- Easy-care, corrosion-resistant aluminium construction in F9 steel grey finish[1][5]
- No visible external screws enhance tamper resistance[5]
Specifications
- Narrow plate set made from anodized aluminium alloy with F9 steel grey surface; includes fixed/movable lever handle and secure pull grip[1][5]
- Bearing mechanism uses maintenance-free plain or slide bearings; tested to DIN EN standards for durability (EN1906:26-0130U)[2]

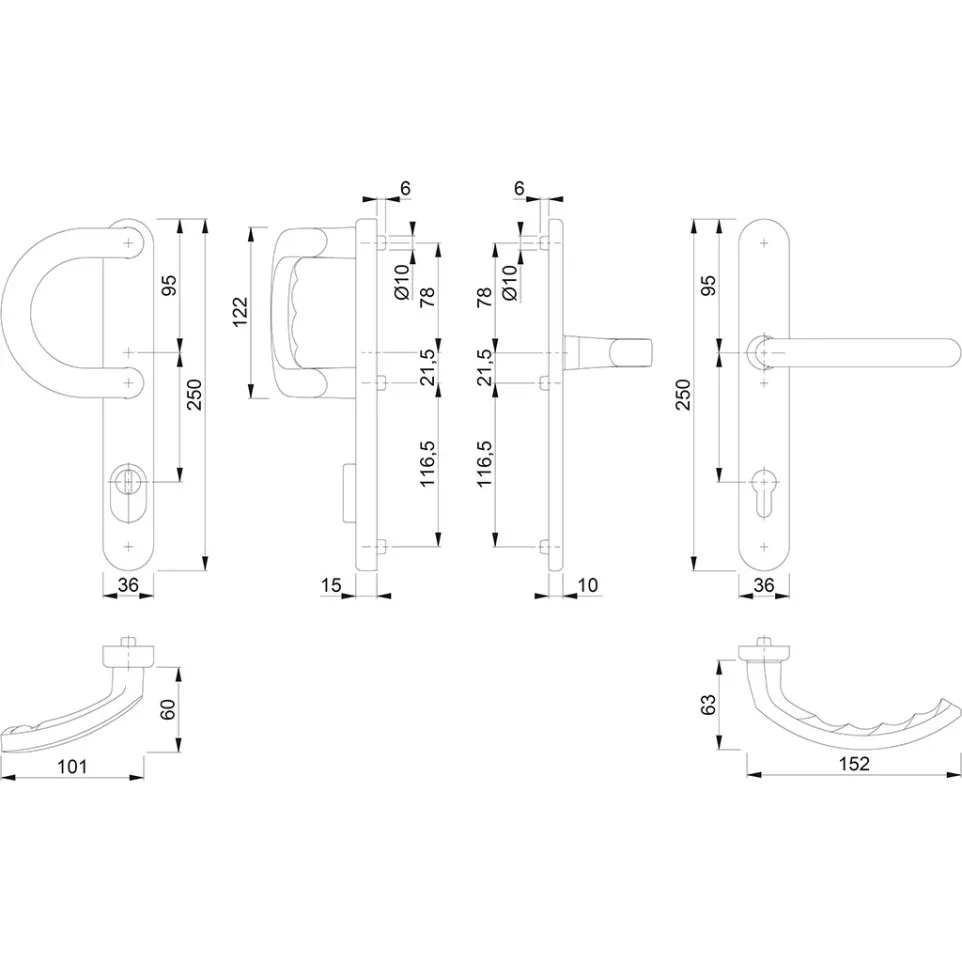

- PZ lock spacing: 92 mm; supports door thickness: minimum 67 mm, maximum 72 mm; plate thickness approx. 12 mm[1][4][5]
- Cylinder shield integrates drilling protection; secured from the interior to prevent tampering — suitable for left/right-handed use and compatible with most European profile cylinders[1][5]
How it works
The handle and pull set mounts directly onto the door, securing via internal fixings. The lever operates the latch while the long protective plate shields the lock cylinder against forced entry. The design ensures straightforward daily operation while maintaining high-level physical security.
