Porcelain Escutcheon PZ Satsuma Pink per piece
€11.54
In stock
Product

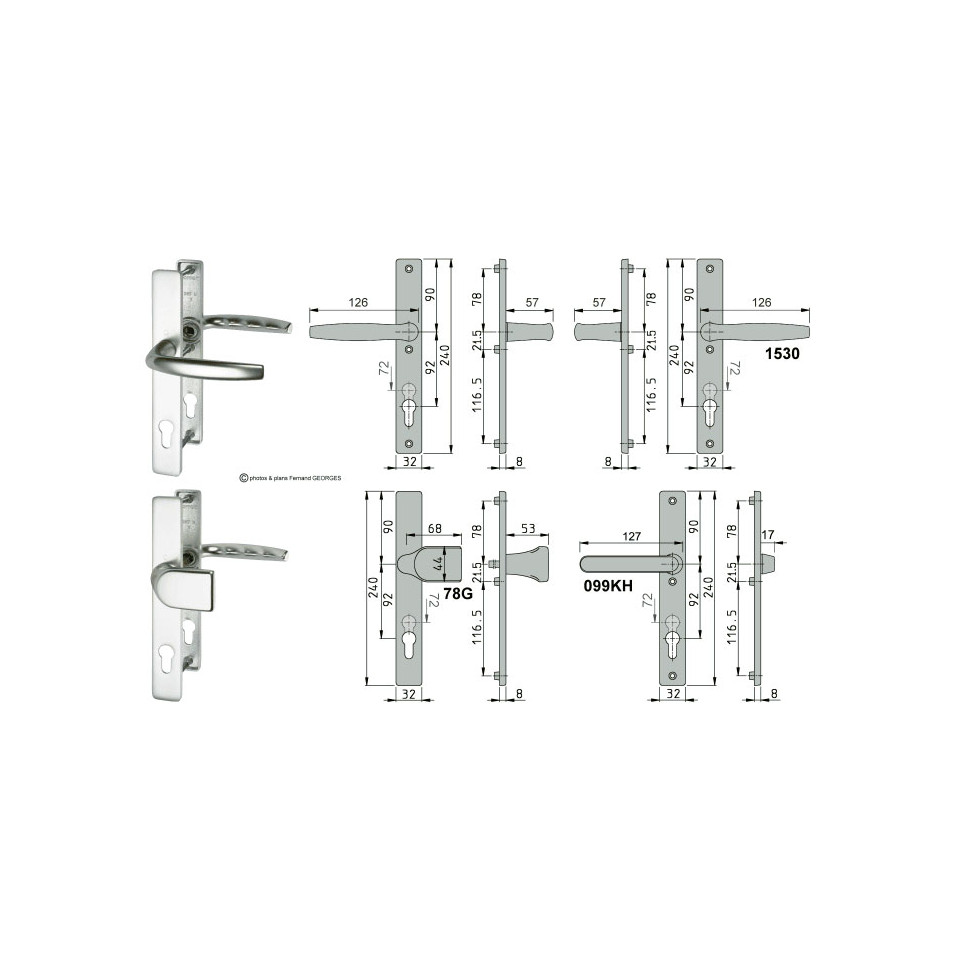

Hoppe Atlanta 92 PZ handle set includes an interior lever handle (1530G) and an exterior fixed pad handle ("099KH" Luxembourg), both made from cast aluminium. Designed for door thicknesses of 67–72 mm, it features a raw, unfinished surface ready for painting and is suitable for doors requiring robust security and customization.
Specifications
- Cast aluminium inner and outer handles; sand-cast aluminium alloy baseplate (240 x 32 x 8 mm)
- 92 mm PZ centres; 8 mm spindle; positioning pins with 10 mm diameter
- Visible M6 fixing screws (interior side) with matching screw covers
- Supplied with spindle and fixing screws for door thicknesses 67–72 mm
- Durable, corrosion-resistant construction; designed for painting or custom finishing
- Compatible with Euro profile cylinders and multipoint locks
Usage
Install the Hoppe Atlanta handle set by attaching the baseplate and securing it with the provided screws through predrilled positioning holes. The interior lever operates the latch, while the exterior pad is fixed for security. Suitable for both new installations and replacements on compatible doors, the set is easily customized with your preferred lacquer or paint.
FAQ
-
Is this handle set suitable for both left- and right-hinged doors?
Yes, the handles are non-handed and can be fitted on either side. -
Can I install this on a door outside the 67–72 mm thickness range?
The supplied spindle and screws are optimized for 67–72 mm; other thicknesses may require additional parts. -
Does the product come pre-finished or must I paint it?
The surface is unfinished (raw), intended to be lacquered or painted after installation to match your décor. -
Are all necessary fixings included in the package?
Yes, all required screws, spindle, and covers are included for standard installation. -
Is this handle compatible with all Euro profile cylinders?
It is designed for standard 92 mm PZ Euro cylinders, commonly used in multipoint lock systems.
