Wide Square Hinge with Rolled Pin Brass Axis 80x40mm per piece
€2.12
In stock
Usage

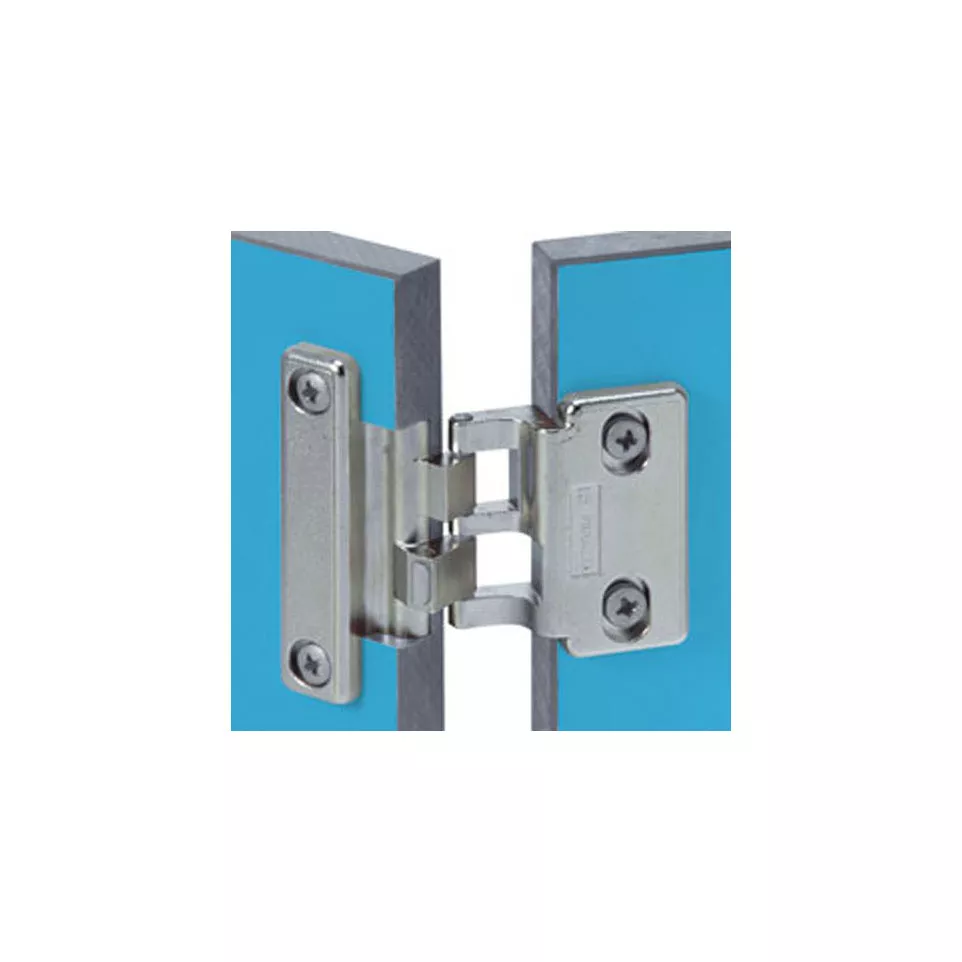

This flat hinge is designed for mounting thin or laminated panels with a thickness of 10 to 13 mm on single semi-overlay doors, commonly used in furniture assemblies or modular systems.
Advantages
- Compatible with panel thicknesses of 10 mm and 13 mm, allowing versatility in installation contexts.
- Enables door opening up to 240°, providing wide access without obstruction.
- No door offset from the cabinet plane when opened at angles of 140° or more, ensuring smooth operation.
- Features adjustable overlay (±1 mm) and vertical alignment (±2 mm) for precise positioning.
- Permanently lubricated plastic pivot bearings reduce maintenance needs and ensure quiet movement.
Specifications
- The hinge arm is made from robust zinc alloy with a stainless steel finish for corrosion resistance and durability. The axle is hardened steel, with self-lubricating plastic bushings.
- Suits modular system applications. Designed in compliance with usage in furniture construction requiring robust hardware for thin or composite panels[1].

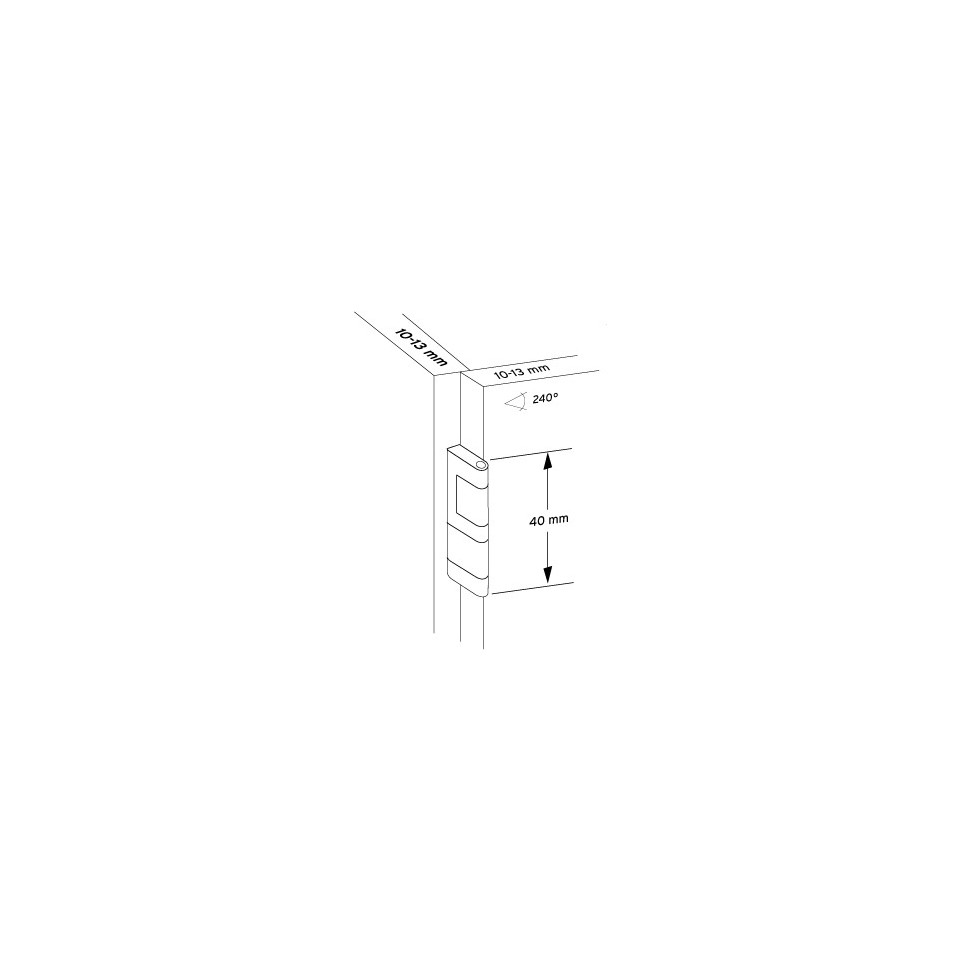

- Total hinge thickness: arm measures approximately 4.5 mm. Door overlay adjustment ±1 mm, height adjustment ±2 mm. Door coverage: up to 3.5 mm (or 2 mm when installed on a 10 mm panel).
- Differentiating features include an integrated latch mechanism and a secure axle design that enhances both safety and operational life span[1][7].
How it works
The hinge mounts onto thin or stratified panels using appropriate screws. Its flat arm accommodates semi-overlay doors by attaching directly to the panel's edge, providing stable support while enabling full opening up to 240°, without causing interference between the door and adjacent surfaces at large opening angles[1][7]. Precise adjustments allow optimal alignment during installation.
