Usage
This aluminium straightening fitting is designed to stabilize and align wooden sliding or hinged doors with a height between 2040 mm and 2600 mm, ensuring smooth operation in residential or commercial installations.
Advantages
- Stabilizes doors, preventing warping and misalignment for long-term reliability
- Suitable for a wide range of door dimensions: width from 300 to 1600 mm, thickness from 16 to 50 mm
- Flexible installation: can be glued or fixed with screws according to requirements
- Silent performance due to stable construction, minimizing operational noise
- Not suitable for use with hardwood doors (minor drawback)
Specifications

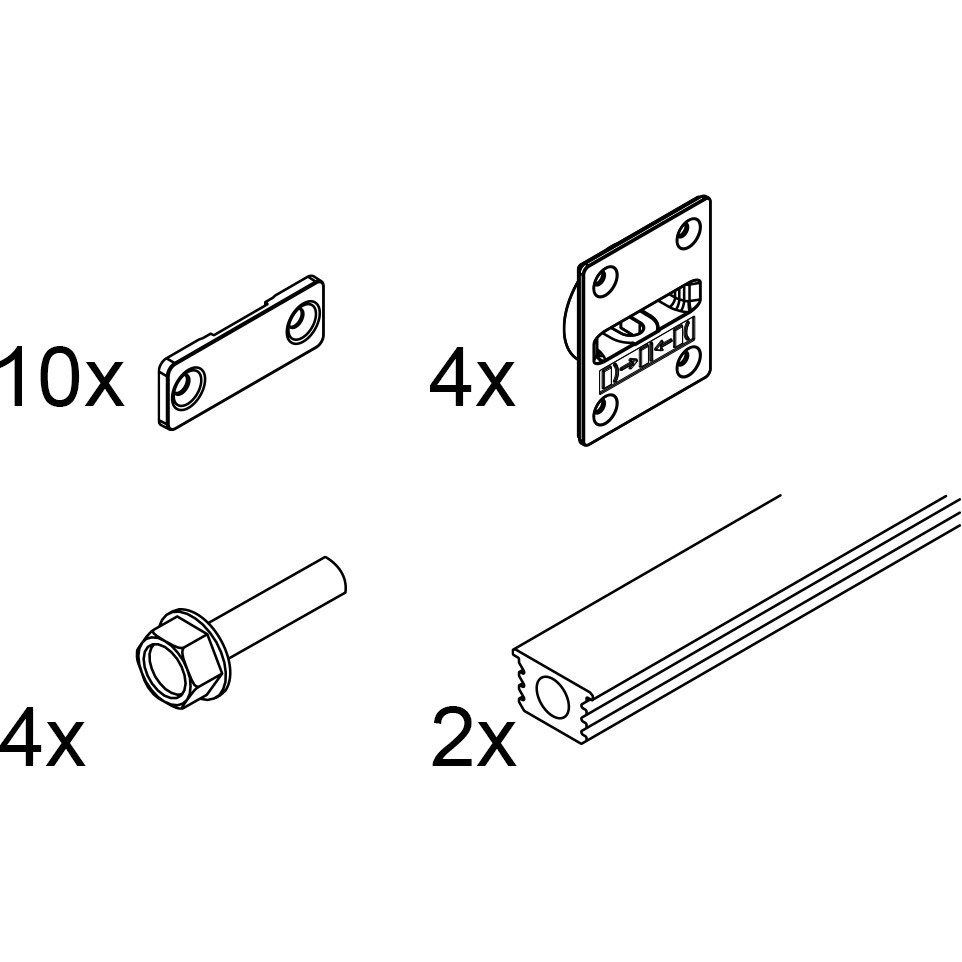

- Made of raw or anodized aluminium; set includes plastic anchoring elements, steel screws (M6x40 mm), and mounting brackets[2][3]
- Suits interior wooden doors; not intended for hardwood; conforms to common door hardware installation standards[1][3]
- Covers door heights from 2040 mm up to max. height of 2600 mm; compatible with widths of up to 1600 mm and thicknesses between 16–50 mm[3]
- The fixing profile can be shortened as needed for custom fit; available in multiple surface finishes according to project needs[1][3]
How it works
The fitting is attached along the vertical edge(s) inside the door leaf. Once installed by gluing or screwing, it counteracts any warping forces on the panel, keeping the door flush and aligned across its full height during daily use.
