Anthracite Drawer Side Kit Height 120mm with Soft Close Slides Depth 450mm Max 40kg Slim per piece

Product

Slim anthracite drawer sides kit, 120mm height, with soft-close runners for 450mm depth drawers, supporting up to 40kg. Designed for contemporary drawer units where a streamlined, rectilinear aesthetic is desired.

Specifications

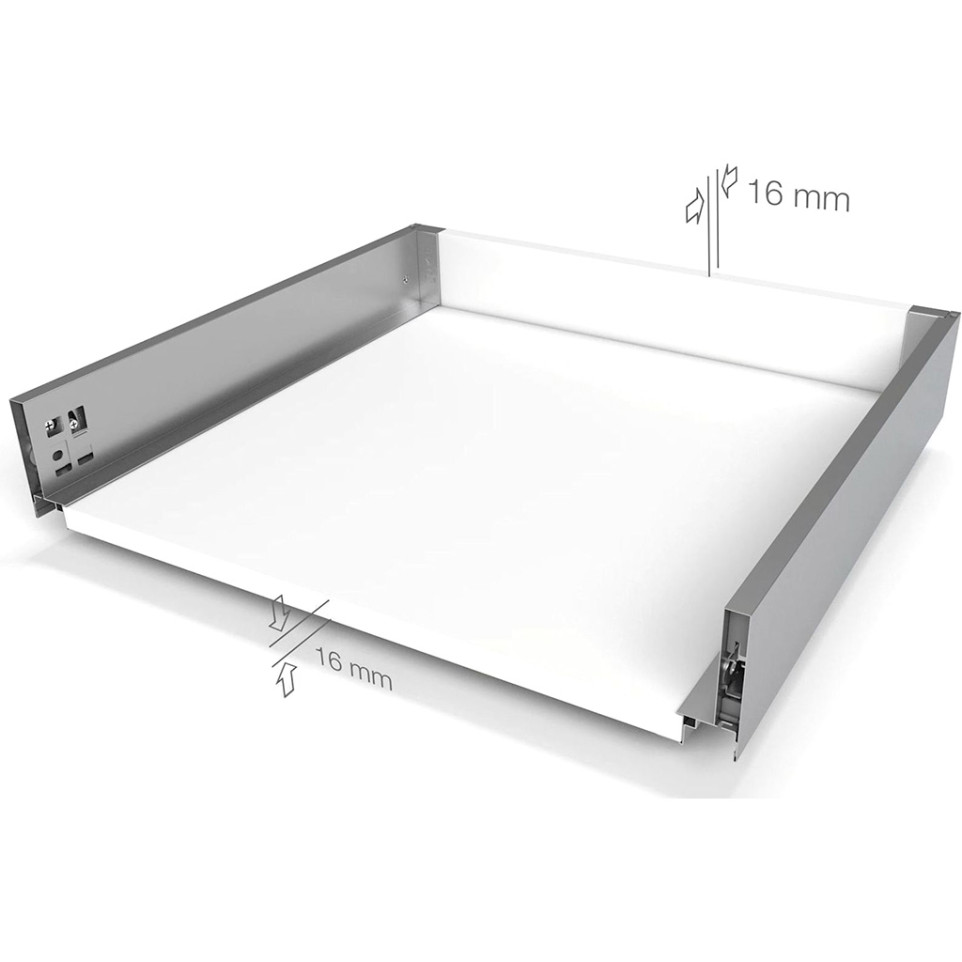

• Features 13mm thin side walls for a clean, modern look
• Available in four standard heights: 84mm, 120mm, 167mm, 199mm
• Durable powder-coated finish in white or anthracite
• Integrated soft-close mechanism for smooth, silent closure
• Maximum load capacity: 40kg per drawer

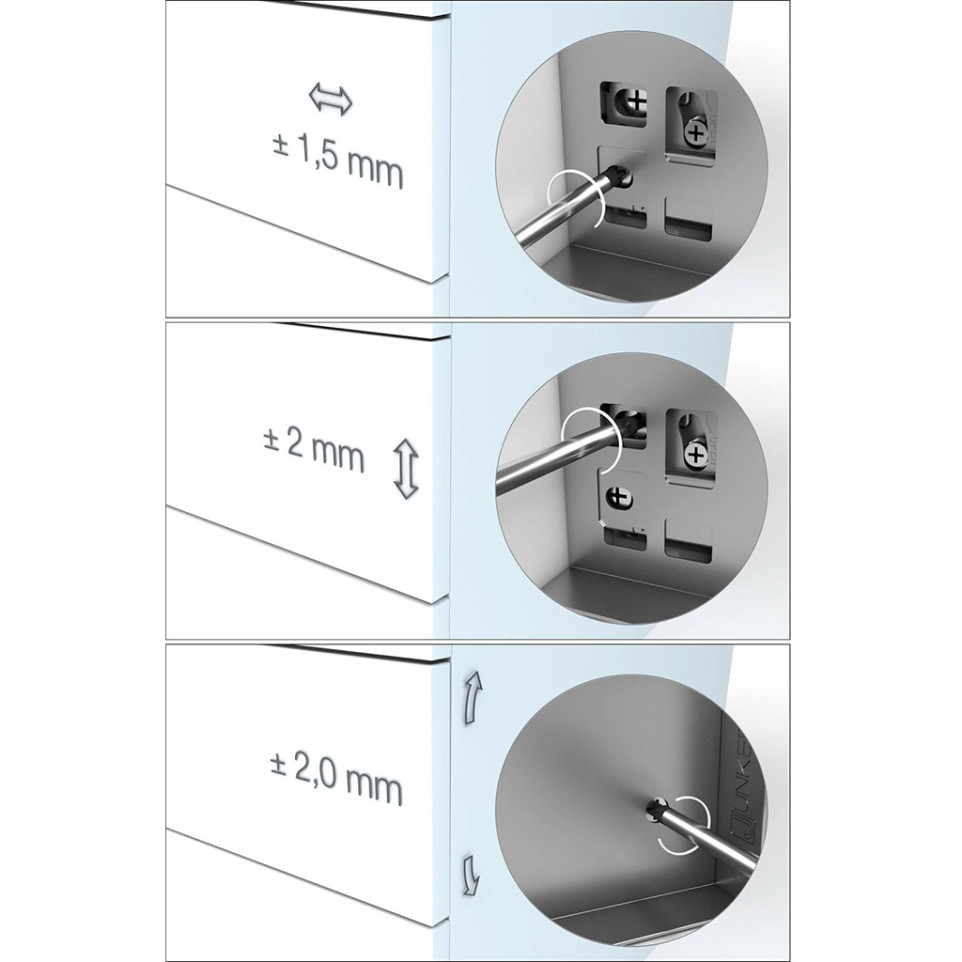

• Horizontal (+/- 1.5mm), vertical (+/- 2mm), and tilt (+/- 2mm) adjustment for precise alignment

Usage

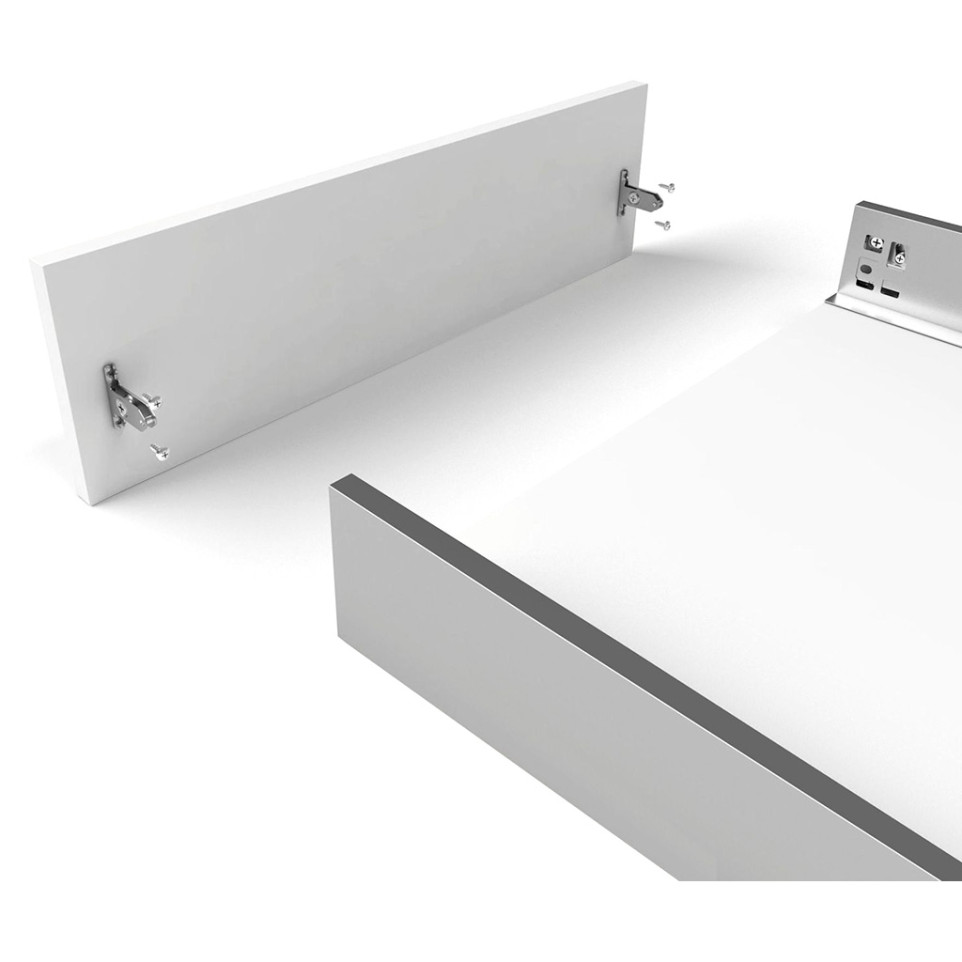

Install the drawer sides and soft-close runners in compatible cabinet carcasses to create a functional, high-capacity drawer. Adjust the front face easily in three directions for perfect alignment. The kit suits both new installations and upgrades in residential or commercial environments.

FAQ

1. Which drawer depths does this kit support?
   The supplied soft-close runners are suitable for drawers up to 450mm deep.

2. In which finishes is this kit available?
   The kit is available in anthracite and white finishes.

3. What is included in the kit?

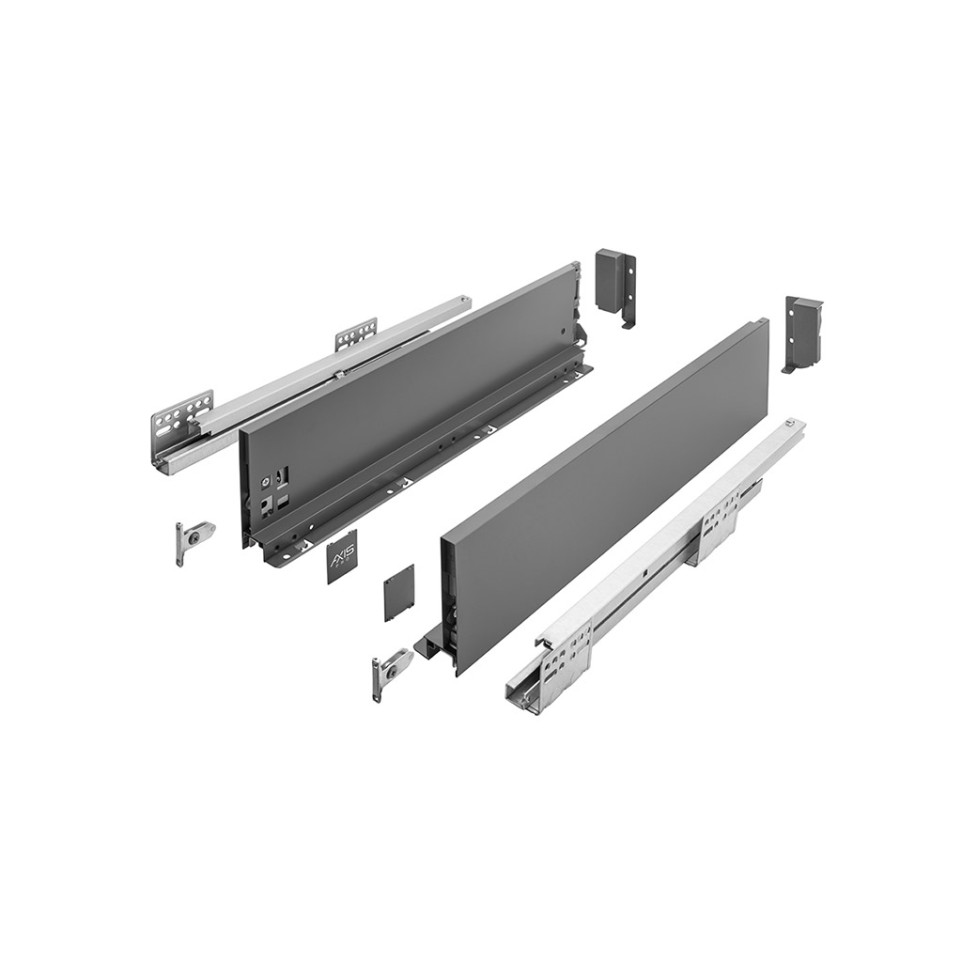

   The kit includes two drawer sides, one pair of soft-close runners, two screw-on front connectors, two rear connectors, caps, and screws.

4. Can the drawer front be adjusted after installation?
   Yes, the drawer front can be adjusted vertically, horizontally, and for tilt to ensure optimal alignment.

5. What is the maximum weight the drawer can support?
   The drawer supports up to 40kg when installed with the supplied runners.
