Usage

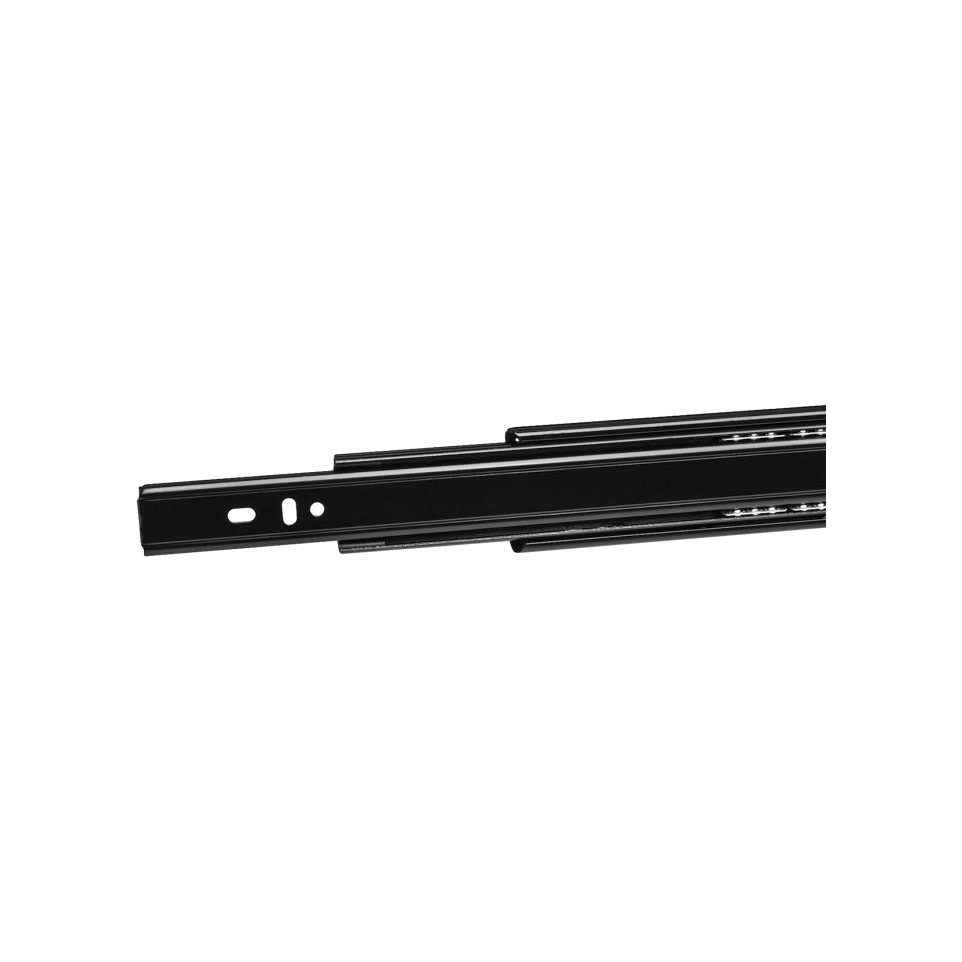

This full-extension black steel ball bearing slide is designed for smooth, silent operation in drawers up to 300mm deep, commonly used in furniture, cabinetry, and industrial applications requiring reliable lateral movement and high load capacity.
Advantages
- Supports loads up to 45 kg per pair—suitable for heavy-duty storage needs.
- Total extension mechanism provides unobstructed access to the entire drawer depth.
- Smooth and quiet sliding action due to hardened steel ball bearings.
- Durable black lacquered steel resists wear and maintains appearance over time.
- Lateral mounting design fits a wide range of drawer units; may require minimum internal width clearance of approximately 12.7 mm per side.
Specifications
- Constructed from black-lacquered steel with hardened steel ball bearings for guidance and durability.
- No formal certification listed; engineered for long service life under recommended maximum load of up to 45 kg when mounted vertically (load reduces if mounted horizontally).
- Main dimensions: length—300 mm; height—45 mm; thickness—12.7 mm per slide. Full-extension feature allows complete access to the drawer contents;
- Differentiating features include soft-close operation, total extension capability, compatibility with standard cabinet designs, and simple installation on left or right side of the drawer unit.
How it works
The slide set mounts laterally on both sides of a drawer. Precision-hardened balls roll between raceways as the drawer opens or closes, allowing stable movement along the full length until fully extended or closed again. Designed for frequent use without performance loss.
