Usage

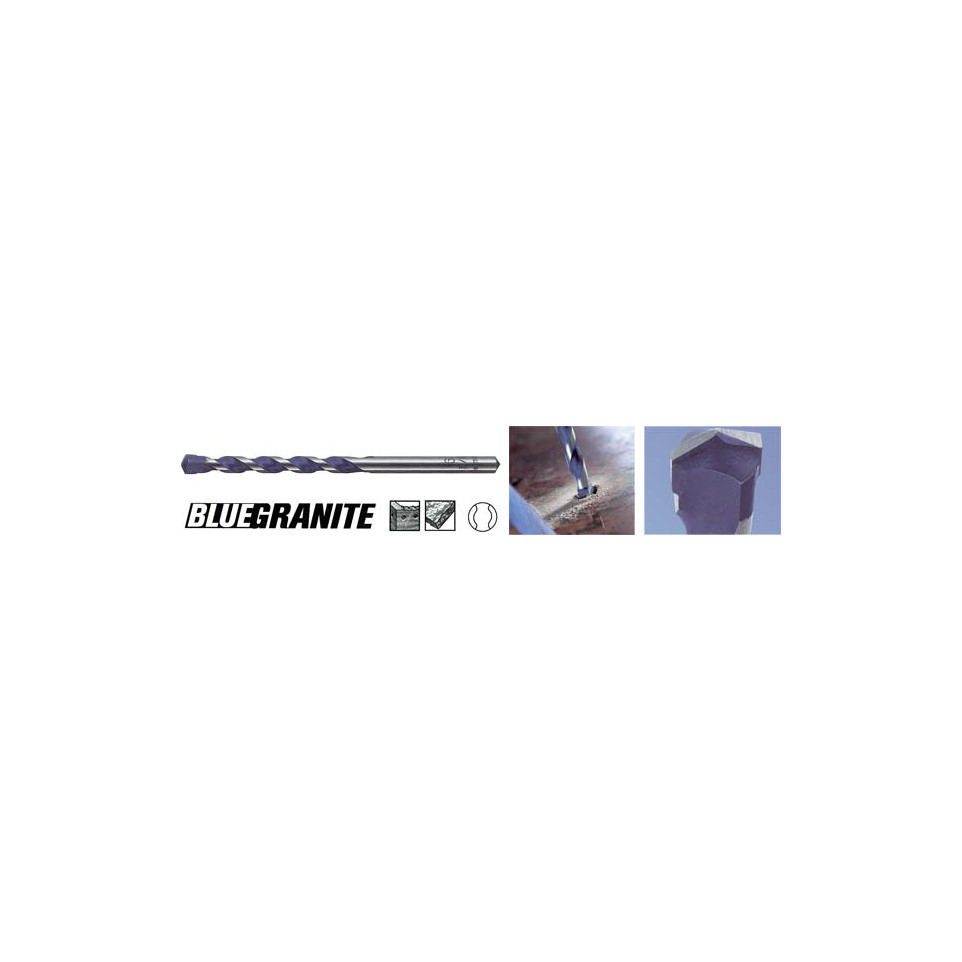

The Bosch Blue Granite Ø5mm concrete drill bit is designed for precise drilling in concrete, granite, stone, masonry, and brick using percussion drills up to 1000 W. Ideal for anchor holes and regular construction tasks.
Advantages
- High-performance drilling in hard materials such as concrete and natural stone
- Tungsten carbide tip brazed at high temperature for improved wear resistance
- Unique U-flute design efficiently removes dust and reduces blockages during drilling
- Dried-finish corrosion protection adds durability without harmful chemicals
- Engineered to minimize tip breakage through a wide and deep carbide seat; suitable only with compatible percussion drills (up to 1000 W)
Specifications
- Toughened steel body with milled U-flute; tungsten carbide tip conforms to DIN 8039 standard; four-edge grind enhances speed and precision[4][3][6]
- Built according to ISO 5468 standards; suitable for hammer drills up to maximum power of 1000 W[4][3]
- Total length: approximately 85 mm; working length: approximately 50 mm; diameter: Ø5 mm; shank diameter: approx. Ø4.5 mm[4]
- The deep U-groove prevents clogging by clearing debris rapidly, improving efficiency over standard bits[3][4]
How it works
The Bosch Blue Granite Ø5mm drill bit is mounted into a compatible hammer or percussion drill. Its carbide tip penetrates tough masonry while the optimized flute ejects dust quickly, ensuring clean holes with minimal effort.
