Effeff 118.53 ProFix2 Narrow Electric Strike Symmetrical Box 10-24 Vac/dc Without Faceplate per piece

Product

The Effeff 118.53 ProFix2 electric strike is a narrow, symmetrical access control component for door entry systems, designed to operate on universal voltages from 10–24 Vac/dc. It’s suitable for both vertical and horizontal installations on DIN left or right doors, and is compatible with all standard mortise locks and ProFix 2 faceplates.

Specifications

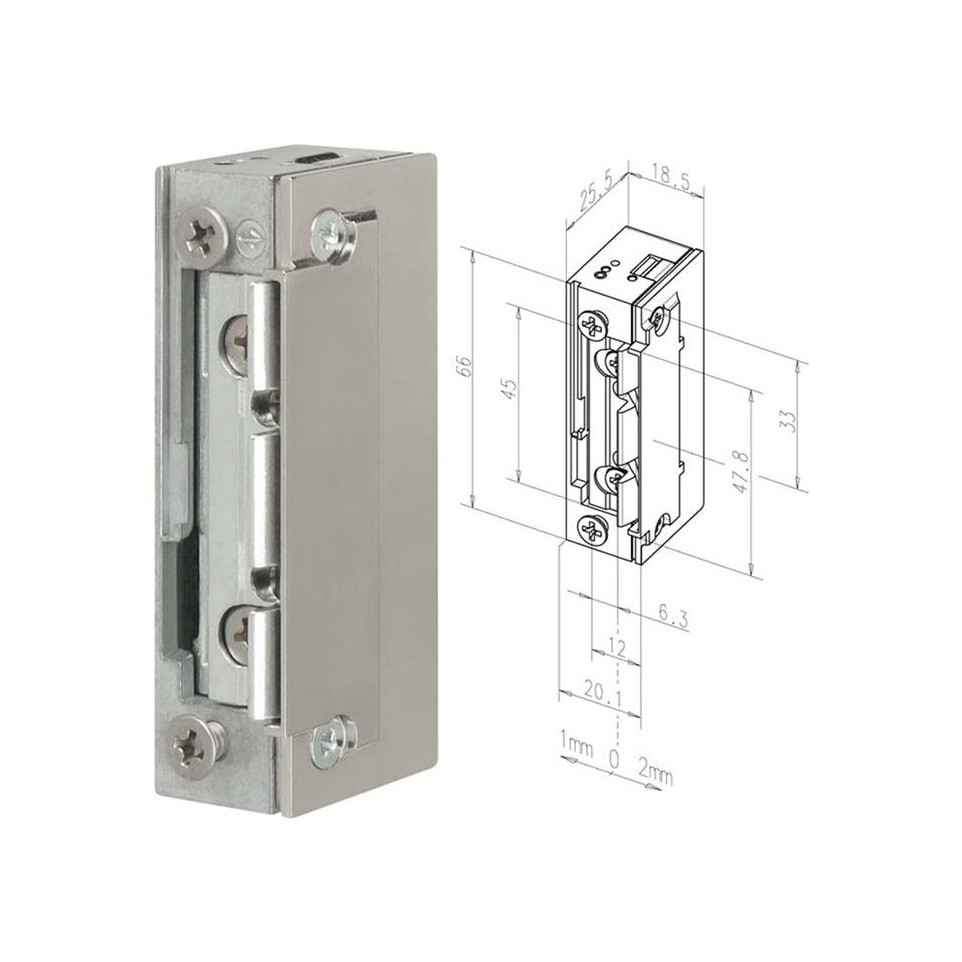

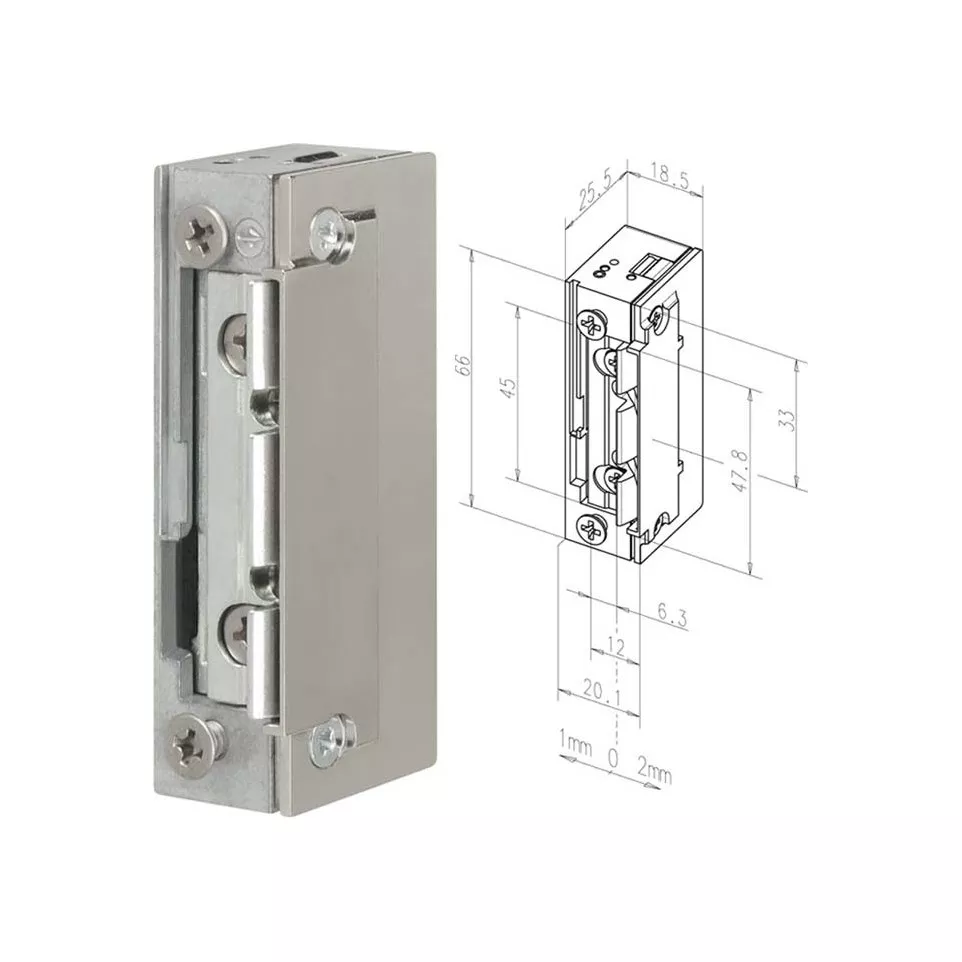

• Design: Slim body (66 x 20.1 x 25.5 mm) with a zinc alloy latch and housing, nickel-plated finish; symmetrical for versatile fitting
• Technologies: Bipolar protection diode integrated, FaFix radial adjustable latch (3 mm range for optimal alignment), universal voltage range, connection terminals for secure wiring
• Durability: Operating temperature from -15 °C to +40 °C; robust materials for long-term reliability
• Features: Current emission working principle, adjustable latch bolt, compatible with common mortise locks and ProFix 2 faceplates, enables both monitoring and mechanical unlock upgrades

Usage

Install the Effeff 118.53 ProFix2 electric strike in place of the traditional strike plate on doors requiring controlled entry. Connect to an access control system, select voltage between 10–24 Vac/dc, and adjust the latch (3 mm) to ensure a precise, secure fit. Suitable for both left- and right-handed, as well as horizontal, door setups.

FAQ

1. Is the Effeff 118.53 ProFix2 compatible with all mortise locks? Yes, it is designed to work with all common mortise lock types.

2. What voltage does the strike require? It operates on a universal voltage range of 10–24 Vac or Vdc.

3. Can it be mounted on both DIN left and right doors? Yes, thanks to its symmetrical, reversible design.

4. Does it offer surge protection for access control systems? Yes, it includes an integrated bipolar protection diode.

5. Is the adjustability of the latch possible after installation? Yes, the FaFix system allows a 3 mm adjustment to facilitate post-installation alignment correction.
