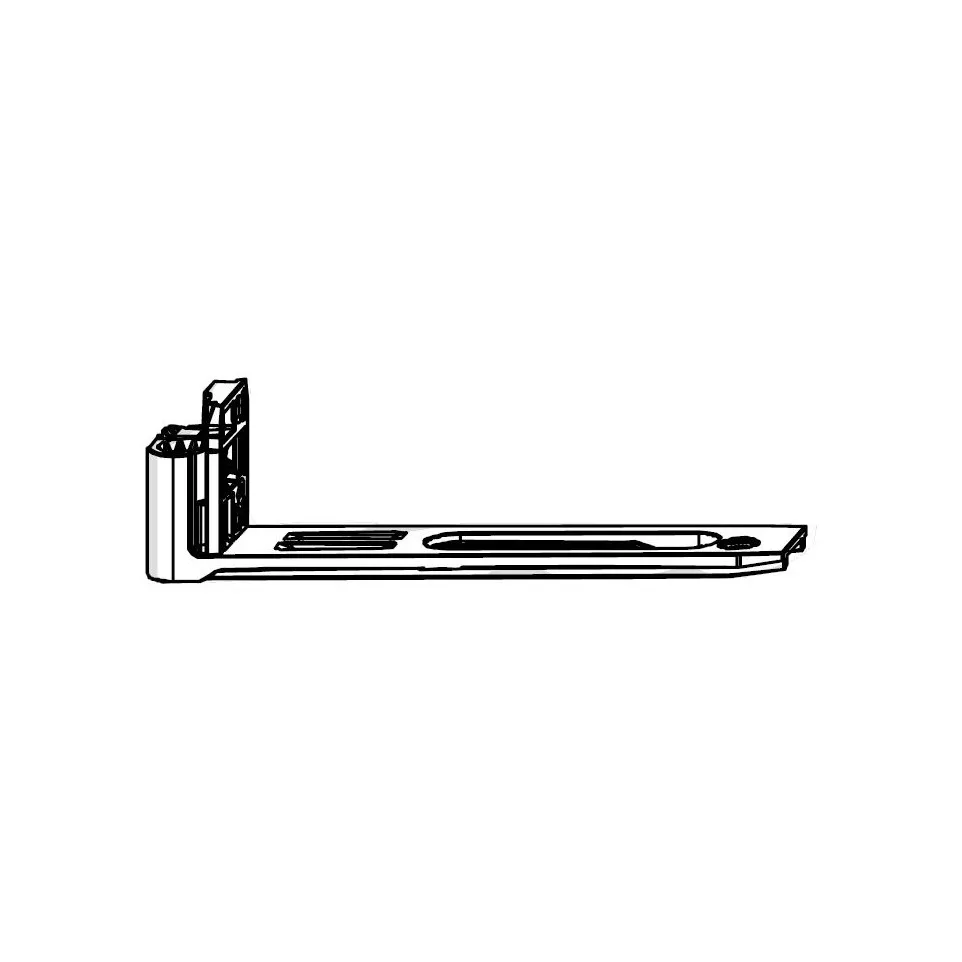

Palier d'angle ouvrant DIN gauche à clamer R.739700 Designo is a left-hand clamping corner pivot, designed for integration with Roto AL Designo hardware in aluminium window and frame constructions. It optimizes the pivoting and opening function in architectural and commercial glazing installations.
Specifications
- Constructed with robust materials to ensure reliable performance for aluminium window systems
- Fully integrates with Roto AL Designo concealed fitting technology for an aesthetic and streamlined look
- Supports sash weights up to 180 kg and sash heights up to 3000 mm
- Modular system design for flexibility and easy adaptation to different profiles
- Engineered for durability and meets relevant resistance and security standards including RC 2/RC 3
- Features a plug-in clamping fork for tool-free, efficient assembly and adjustment
Usage
This pivot component is installed at the corner of the frame to enable smooth turning or tilting of left-hand opening sashes. It is ideal for projects requiring concealed or minimalist hardware, allowing for both tilt-and-turn and turn-only opening functions in aluminium window installations. Assembly is straightforward due to modular and tool-free design features, optimizing workflow for fabricators and installers.
FAQ
-
What types of windows is this corner pivot compatible with?
It is specifically designed for aluminium tilt-and-turn or turn-only windows using the Roto AL Designo hardware system. -
Does it support heavy window sashes?
Yes, it can accommodate sash weights up to 180 kg and sash heights up to 3000 mm. -
Is the installation of this pivot tool-free?
The pivot features a plug-in clamping fork for quick, tool-free assembly on compatible profiles. -
Does it contribute to the window’s security?
It complies with resistance classes RC 2 and RC 3 for enhanced security in window installations. -
Can it be used for both left and right applications?
This specific model is DIN left; a corresponding right-hand version is available for right-opening sashes.
