Product
Kit Rail and Opening Stay Hautau H13, 90° SP, left-hand, white finish, for sash overlap of 1651–2000mm. Designed for use with tilt and turn or high-level opening systems requiring reliable, controlled movement in commercial and residential contexts.
Specifications
- Standard H13 rail for overlap profiles with arris-chamfered or rounded edges up to 3.5mm; H20 rail available on request for larger radii or bevels
- Sash rail accommodates 9 or 13mm axis
- Equipped with opening stay (compass) featuring built-in energy absorber
- Delivered with matching end caps and opening stay stop
- Suitable for left or right installation options
- Durable, high-quality materials; corrosion-resistant white finish
- Designed for smooth, reliable operation; easy maintenance
Usage
Install by mounting the rail and compass stay on the sash according to the axis size (9 or 13mm). Use provided end caps and stops to secure assembly. The system ensures controlled, dampened sash opening to 90°, preventing abrupt movement. Suitable for integration with a wide range of opening system profiles with edge radii up to 3.5mm.
FAQ
- What sash profile types are compatible with this kit?
- The kit fits overlap profiles with arris-chamfered or rounded edges up to 3.5mm; for larger edges, an H20 rail can be ordered.
- Is this kit suitable for left-handed and right-handed installations?
- Yes, versions are available for both left and right operations. Please specify when ordering.
- What is included in the package?

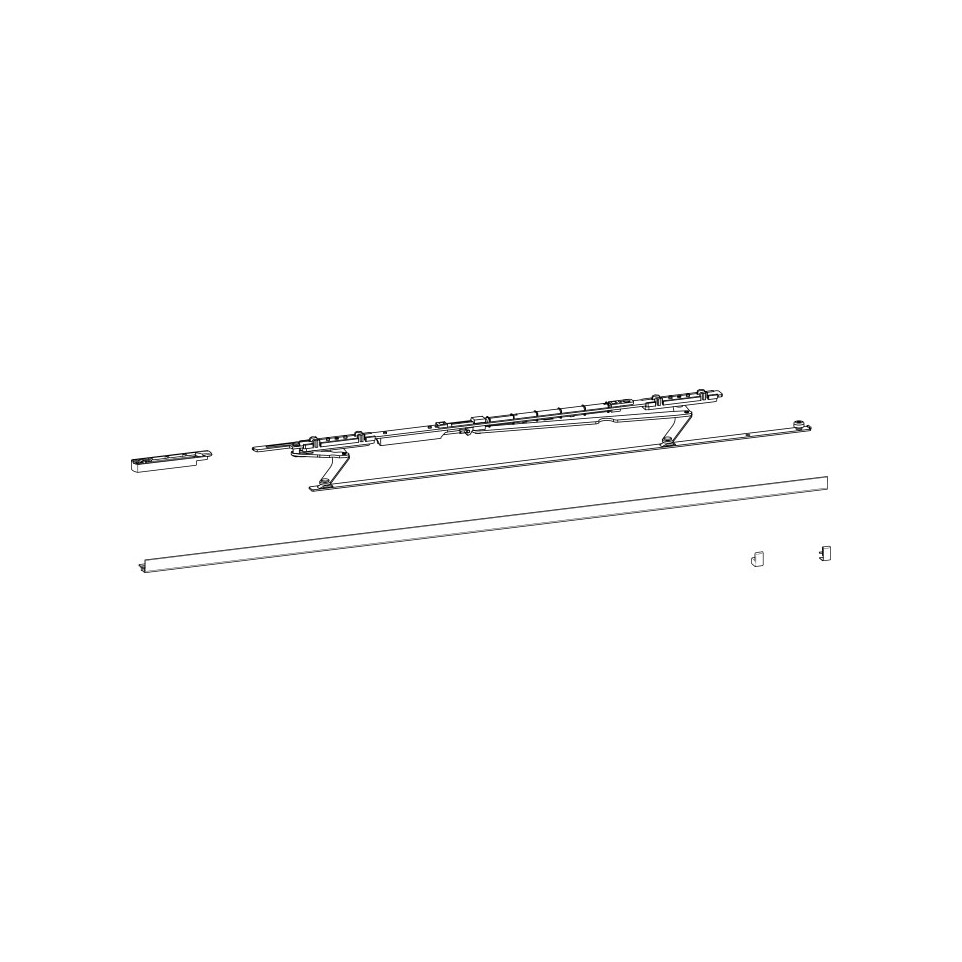

- The kit includes the H13 rail, compass stay with energy absorber, end caps, and a stay stop.
- Can this kit be used for both residential and commercial applications?
- Yes, its robust construction and flexible compatibility suit a wide range of environments.
- How do I maintain the system for long-term reliability?
- Routine cleaning and light lubrication of moving parts ensure smooth, long-lasting operation.
