Argenta Close 80/80A Self-Closing Aluminium Spring Hinge Left Silver per piece

Argenta Close 80/80A Self-Closing...

Estimated delivery date :  Wednesday 10 June
€64.59 HT
In stock

Ref : FGT-124891

Variantes

Argenta CLOSE 80/80A Aluminum Spring Hinge Silver Right / pc Argenta CLOSE 80/80A Aluminum Spring Hinge Silver Right / pc
Quantity

Add to your shopping List

You must be logged


Description

Usage

The Argenta CLOSE 80/80A spring-loaded aluminium hinge is designed for mounting on left-hand wooden doors to enable automatic self-closing in interior spaces where controlled closure and reliable alignment are required.

Advantages

  • Equipped with a built-in spring system for automatic door closing, supporting efficient traffic flow.
  • Manufactured from corrosion-resistant aluminium, ensuring long service life and stability.
  • Aesthetic design preserves the visual appeal of the door by concealing the spring mechanism.
  • Certified fire resistance (RF30) according to NBN 713.020:1968 and EN 1634-1:2000 standards.
  • The hinge is non-adjustable after installation; correct placement is required during fitting.

Specifications

  • Design & Material: Precision-cast aluminium with a silver finish; suitable for left-hand doors; supplied as a single piece.
  • Durability & Certification: Tested fire resistance RF30 (NBN 713.020:1968, EN 1634-1:2000); wear-resistant bushings support frequent use without lubricant maintenance.

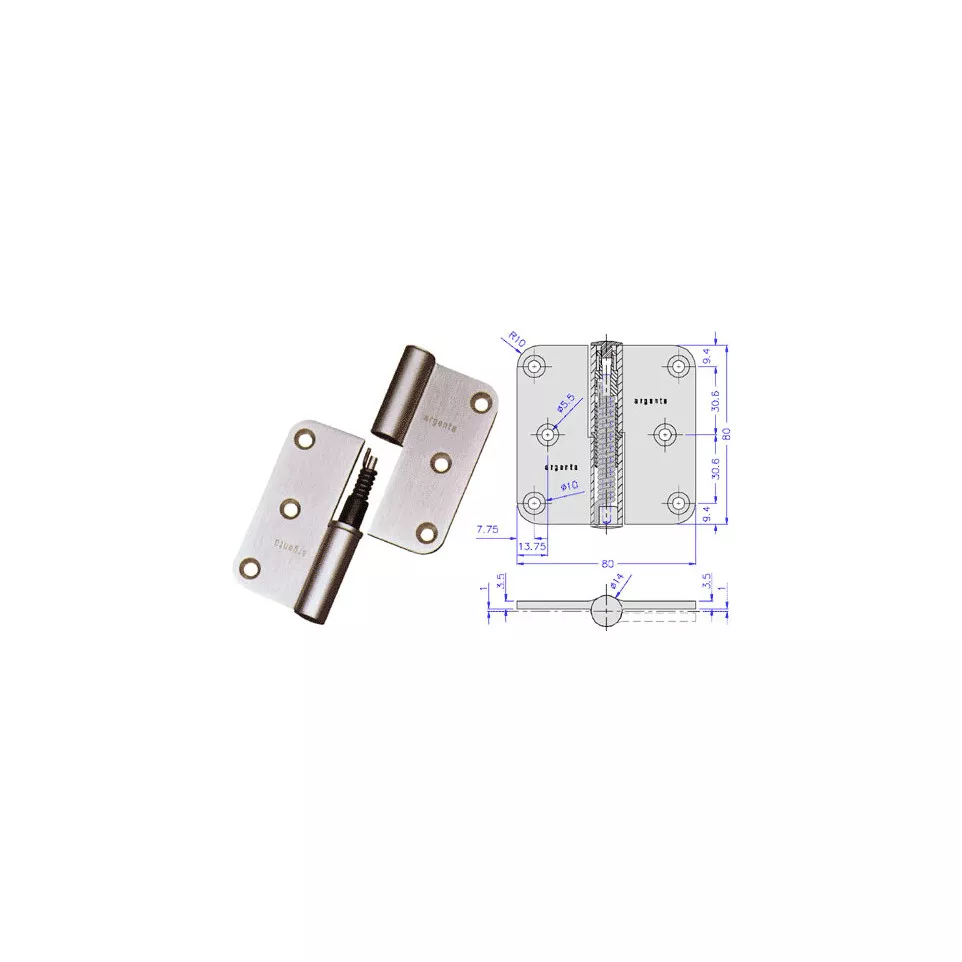

  • Sizing & Performance: Hinge size is 80 x 80 mm when closed; leaf thickness approximately 3.5 mm; knuckle diameter approximately Ø14 mm; recommended max load up to approx. 48 kg with three hinges per door[5][7].
  • Differentiating Features: Integrated self-closing spring mechanism within the hinge body maintains consistent closing force without external devices[1][9].

How it works

Once fitted on a left-hand wooden door, the internal spring automatically returns the door to its closed position after opening. The concealed mechanism operates silently while maintaining smooth movement and constant pressure against the frame.

See more

Product Details

Brand Argenta
Finishing argent
Material used aluminium
Ø vis (mm) 4,50
Opening direction poussé gauche (DIN R)
Height (mm) 80,00
Width (in mm) 80,00
Automatic closing oui
Ø noeud (mm) 14
Blade corners arrondi
Type of hinge à ressort
FGT-124891
