Product

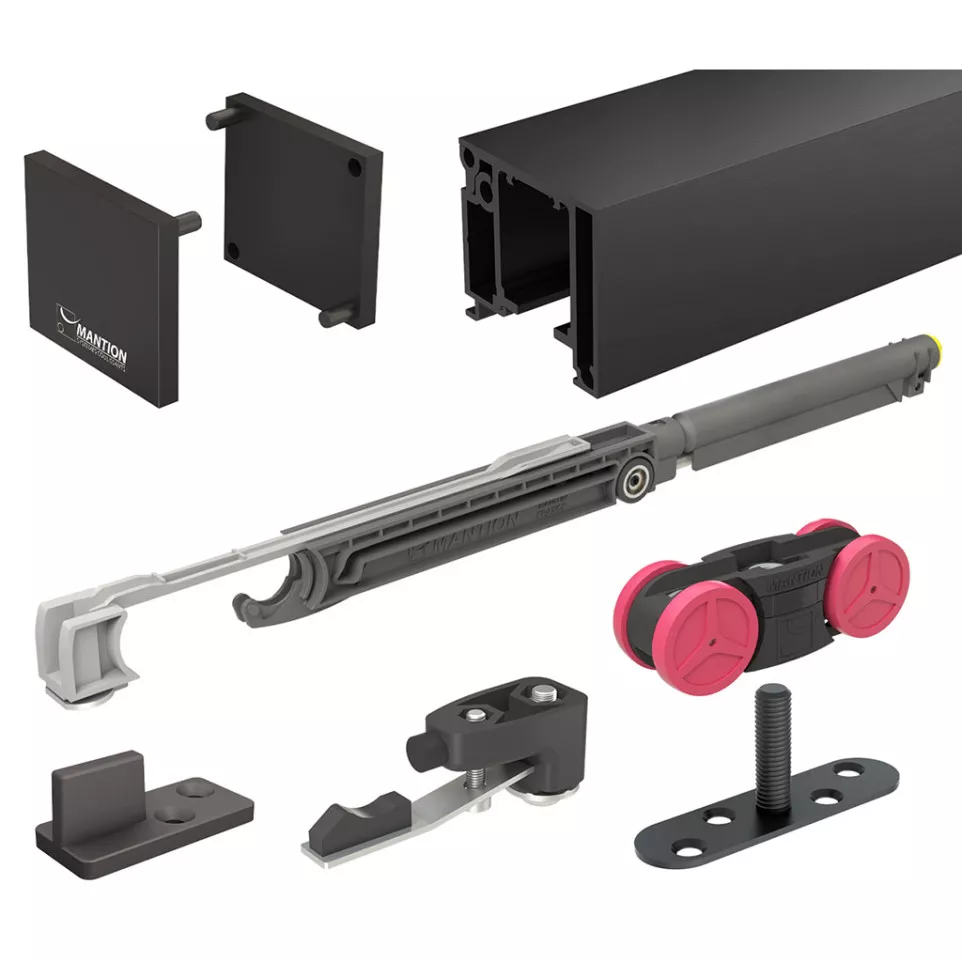

Complete set of sliding door hardware in brushed black anodized aluminium, designed for interior doors up to 830 mm wide and weighing between 21 and 60 kg per door. Suitable for residential and office applications.
Specifications
- Track and supports: 1595 mm brushed black anodized aluminium, rail cross-section 40×45 mm
- Robust SAF carriages with smooth, silent movement and high-end finish
- Adjustable soft-close damper (M66S), adjustable stop, and end caps for a refined look
- Compatible with doors 21–60 kg, standard width up to 830 mm
- Includes all mounting hardware, ground guide, and two mounting plates
Usage
Mount the track system on the wall or ceiling, attach the SAF carriages and door plates to the door, and secure the guide at the floor. The system provides soft, controlled closure and smooth sliding motion, enhancing access while maintaining a minimalist aesthetic.
FAQ
-
What is the maximum door weight this kit supports?
The set supports doors weighing from 21 up to 60 kg per panel.
-
What door width is compatible with this kit?
The system is designed for doors up to 830 mm wide.
-
Which materials are included in the kit?
It includes a 1595 mm anodized aluminium rail with support, two SAF carriages, two fixing plates, an adjustable stop, a soft-close damper, a floor guide, two hex keys, mounting hardware, and an installation manual.
-
Can this system be used for both wall and ceiling mounting?
Yes, the design allows for either wall or ceiling installation depending on your project requirements.
-
What finish does the hardware have?
All visible components feature a brushed black anodized aluminium finish for a contemporary look.
