Argenta NEO S5 Matte Chrome Invisible Hinge by ARLU per piece

Argenta NEO S5 Matte Chrome Invisible Hinge by ARLU per piece
Argenta NEO S5 Matte Chrome Invisible Hinge by ARLU per piece
Argenta NEO S5 Matte Chrome Invisible...
Argenta NEO S5 Matte Chrome Invisible...

Estimated delivery date :  Tuesday 9 June
€60.24 HT
In stock

Ref : FGT-121105

Variantes

Adapter for Argenta Neo S5 Invisible Hinge Invisidoor 2.0 IN 40 per piece Adapter for Argenta Neo S5 Invisible Hinge Invisidoor 2.0 IN 40 per piece Adapter for Invisidoor 2.0 Adjustable Strike Plate by Arlu / pc Adapter for Invisidoor 2.0 Adjustable Strike Plate by Arlu / pc Adjustable White Strike Plate for AGB Polaris 2XT Magnetic Lock / pc Adjustable White Strike Plate for AGB Polaris 2XT Magnetic Lock / pc Argenta Adapter for Neo S5 Invisible Hinge Invisidoor 2.0 OUT 40 per piece Argenta Adapter for Neo S5 Invisible Hinge Invisidoor 2.0 OUT 40 per piece Argenta Invisidoor 2.0 IN 40 Profile with Cover Length 5.5m Cuttable per piece Argenta Invisidoor 2.0 IN 40 Profile with Cover Length 5.5m Cuttable per piece Argenta Invisidoor 2.0 OUT 40 Profile with Cover Trim 5.5m Cuttable per Piece Argenta Invisidoor 2.0 OUT 40 Profile with Cover Trim 5.5m Cuttable per Piece Argenta Invisidoor 2.0 White Seal / 6m Argenta Invisidoor 2.0 White Seal / 6m Door Closer Cover Profile for INVISIDOOR 2.0 40 Length 1233 mm / pc Door Closer Cover Profile for INVISIDOOR 2.0 40 Length 1233 mm / pc Mounting Bracket for Invisidoor 2.0 Door Jamb and Headrail Connection / pc Mounting Bracket for Invisidoor 2.0 Door Jamb and Headrail Connection / pc White Adapter for INVISIDOOR 2.0 Door Closer by ARLU / pc White Adapter for INVISIDOOR 2.0 Door Closer by ARLU / pc
Quantity

Add to your shopping List

You must be logged


Description

Usage

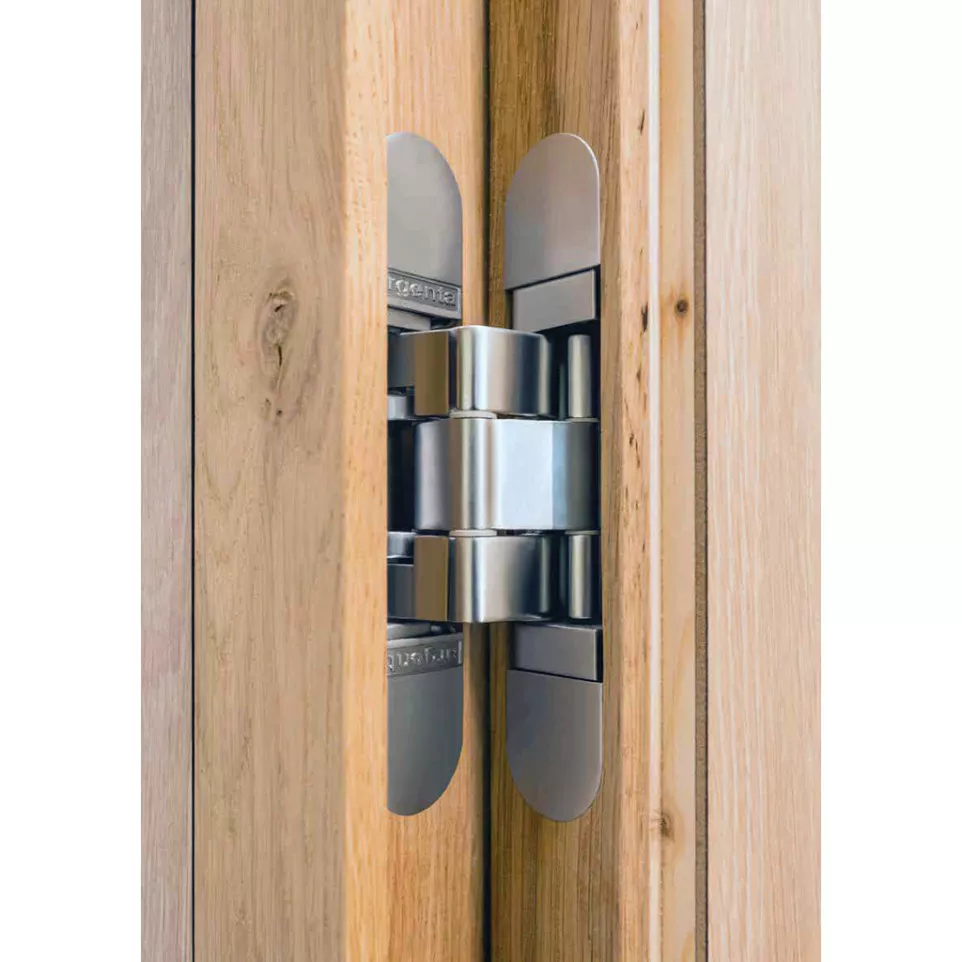

The Charnière invisible Argenta NEO S5 chromé mat is designed for flush, frameless doors in minimalist interiors. Suitable for Invisidoor door trim systems without frames, it ensures concealed, seamless door operation in residential or commercial spaces.

Advantages

  • Fully concealed installation for a clean, uninterrupted door appearance
  • 180° opening angle allows maximum accessibility and versatility
  • 3D adjustability (height, width, depth) enables precise alignment after installation
  • Easy-Hook mechanism supports quick solo mounting and removal of the door leaf
  • Fire resistance certified to E30 / EI230 standards when used with appropriate materials; consider compatibility requirements before installation

Specifications

  • Zamak construction with a matt chrome finish enhances durability and scratch resistance[4][5]
  • Carries CE marking; complies with EN1634-1:2008 fire safety and EN13501-2:2007 classification[5][9]
  • Bears up to 80 kg per three hinges on doors measuring up to 1030 mm wide and at least 33 mm thick[4][5]
  • No visible screws even when open, compatible with both left- and right-handed doors. Allows front panel (cladding) up to a thickness of 5 mm.

How it works

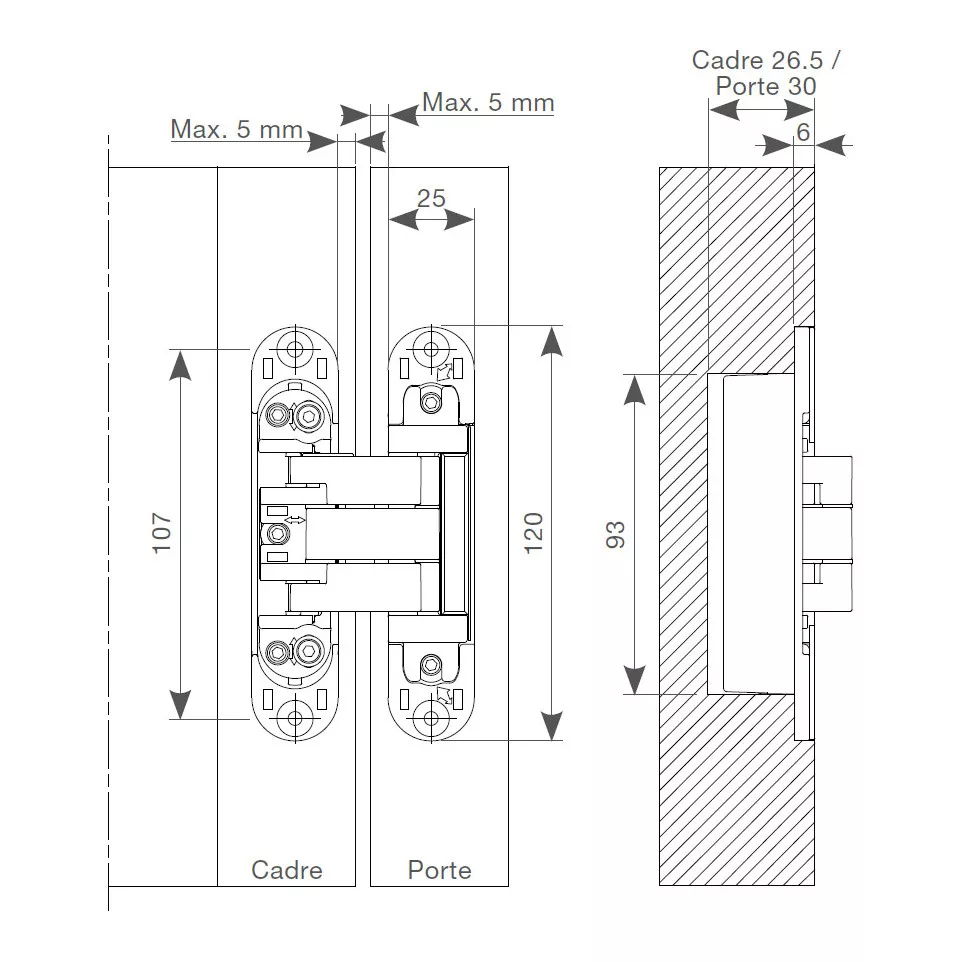

The hinge installs inside the door edge and frame using routed pockets. Its hidden design maintains architectural lines while offering full opening functionality. Adjustable in three dimensions after fitting for perfect alignment without having to remove the door leaf.

See more

Product Details

Brand Argenta
Description C. charnière invisible NEO S5 chromé mat
FGT-121105
New
