Hettich Lift Advanced HL Flap Fitting Without Gas Springs for Cabinet Internal Height 373–402 mm

Product

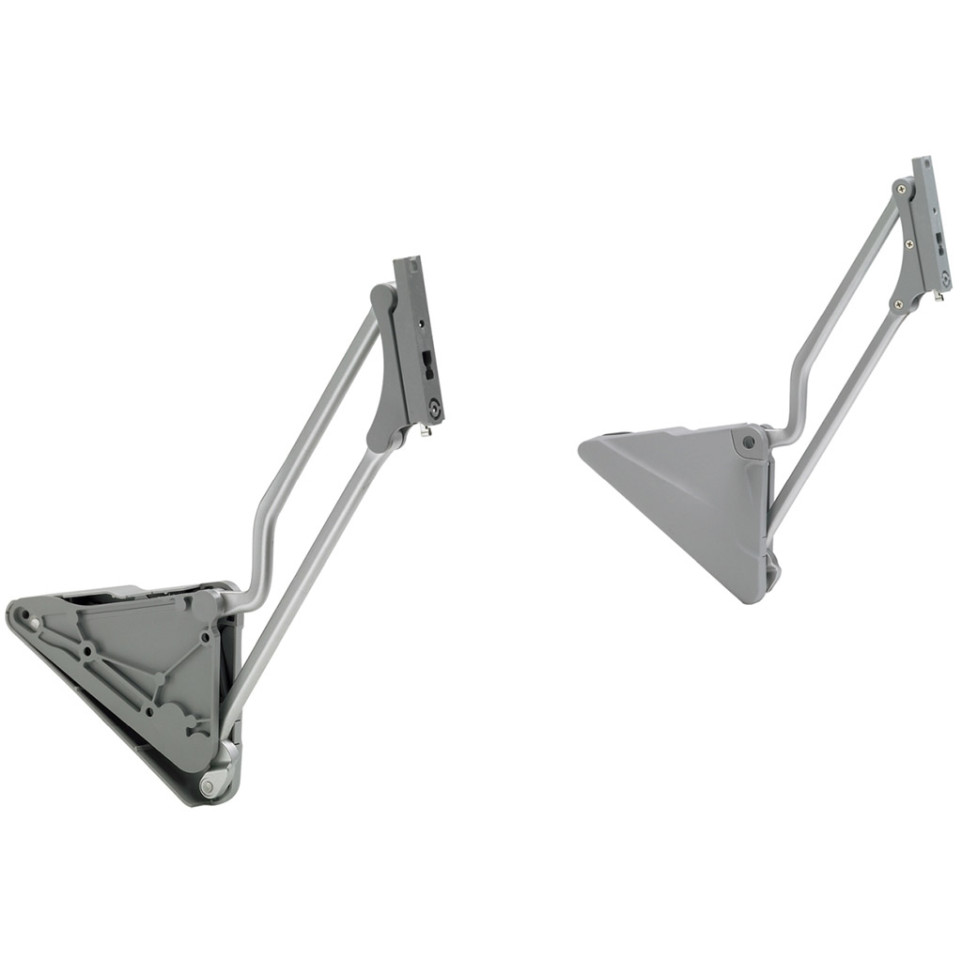

The Hettich Lift Advanced HL Parallel Opening Lifting Compass is designed for overhead cabinet fronts in wood, framed wood, or 19 mm aluminum profiles. It fits interior cabinet heights from 373 to 402 mm and operates without included pneumatic struts.

Specifications

• Powder-coated silver aluminum and grey plastic construction
• Integrated Silent System for soft, cushioned closing
• Adjustable opening force for optimal balance
• Flap weight range (including handle): 1.7–14.9 kg
• Three-dimensional front adjustment: vertical ±2 mm, horizontal ±2 mm, tilt/depth ±2 mm
• Kit includes a matching set of right/left flap fittings, cover caps, and all required mounting accessories
• Pneumatic struts must be ordered separately

Usage

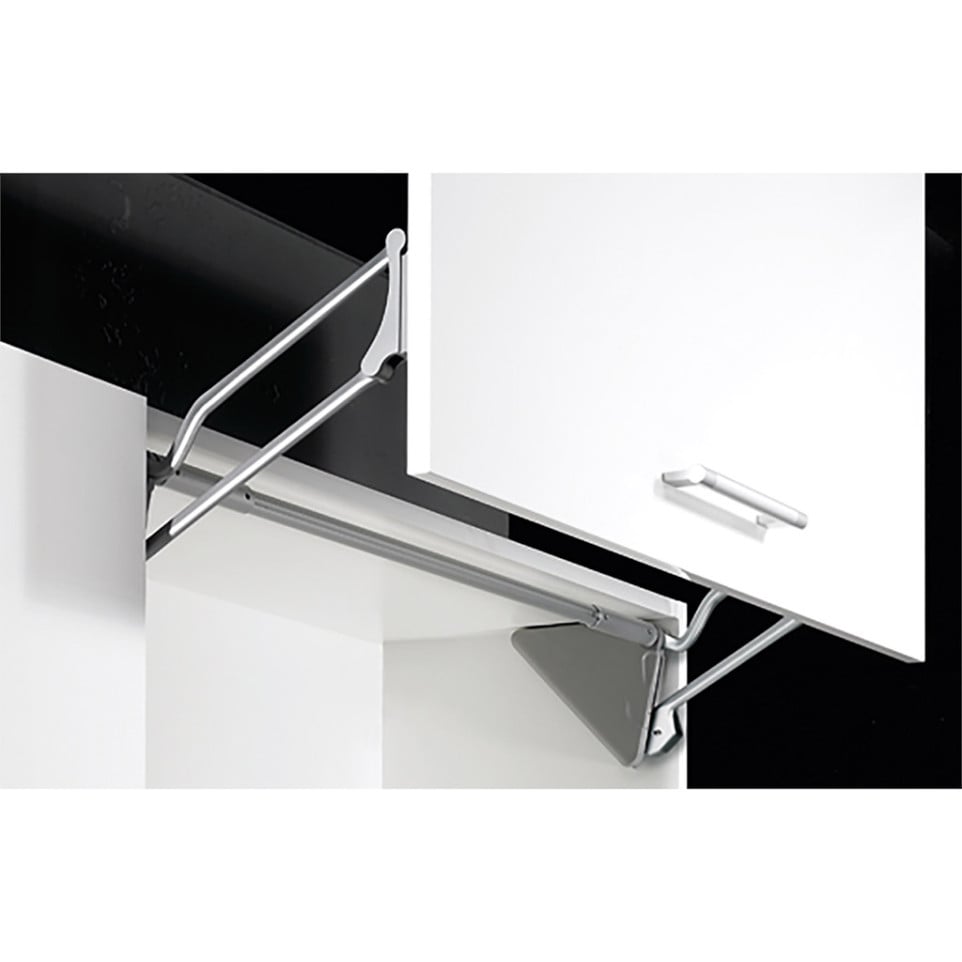

Install the fitting on cabinet fronts to allow upward, parallel opening and stable positioning of flaps. Adjust opening resistance and soft-closing action for smooth, customizable performance. Fine-tune the front panel position in three axes for precise alignment.

FAQ

1. What is the compatible cabinet height for this fitting?
   It supports internal cabinet heights between 373 and 402 mm.

2. Which materials can the fitting be used with?
   Suitable for wooden panels, wood frames, or 19 mm-wide aluminum profile fronts.

3. Does this kit come with pneumatic struts?
   No, pneumatic struts must be ordered separately depending on the flap weight.

4. What is the maximum supported flap weight?
   The system manages flap weights (including handle) from 1.7 to 14.9 kg.

5. Can I adjust the closing action and panel alignment?
   Yes, the Silent System damper is adjustable, and the front can be precisely set in height, side, and tilt.
