Product
The Fapim Atlas Lock 450x16x18 in brown RAL 8017 is a sliding bolt designed for installation on flat aluminum, PVC, and metal profiles. It offers a streamlined, rectangular design for secure closure in demanding architectural and technical environments.
Specifications
- Rectangular sliding lock made from anodized or lacquered aluminum
- Designed for exposed installation with concealed fastening screws accessed by a removable cover
- Stainless steel round bolt, diameter 9 mm, with an extended stroke of 45 mm

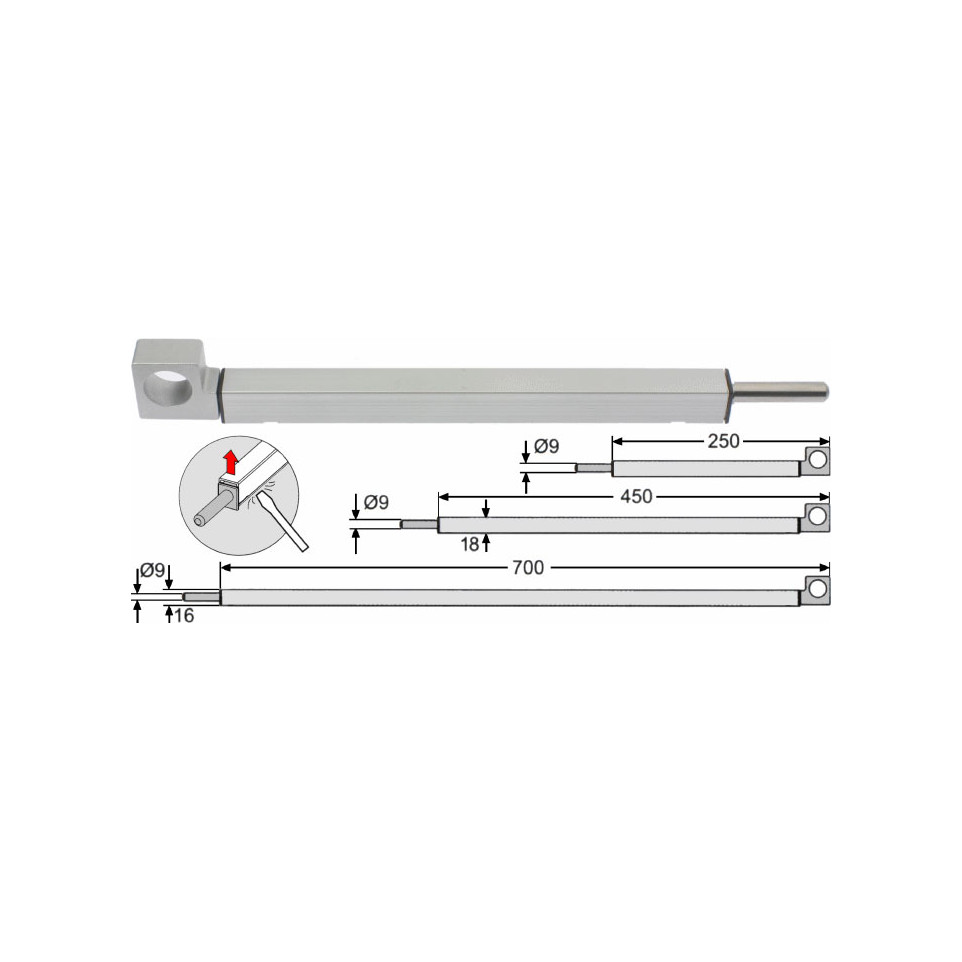

- Dimensions: 450 mm length, 16 mm width, 18 mm height
- Supplied without mounting screws or strike plate
Usage
Mount the lock onto flat, groove-free profiles using the hidden screw system for a discreet appearance. The removable cap allows access to the screws for installation or maintenance. Once fixed, the stainless steel bolt slides to secure or release the window, door, or partition.
FAQ
-
What types of profiles is this lock compatible with?
This lock is intended for flat aluminum, PVC, and metal profiles that do not feature a groove.
-
Are the installation screws and strike plate included?
No, the product is supplied without fixing screws and without a strike plate.
-
What is the size and stroke length of the locking bolt?
The stainless steel bolt has a diameter of 9 mm and a travel (stroke) length of 45 mm.
-
How do I access the mounting screws during installation?
Simply remove the cover to reach the concealed screws for secure attachment.
-
Is the finish resistant to corrosion and wear?
The lock’s anodized or lacquered aluminum construction and stainless steel components provide good resistance to corrosion and wear in typical environments.
