Usage

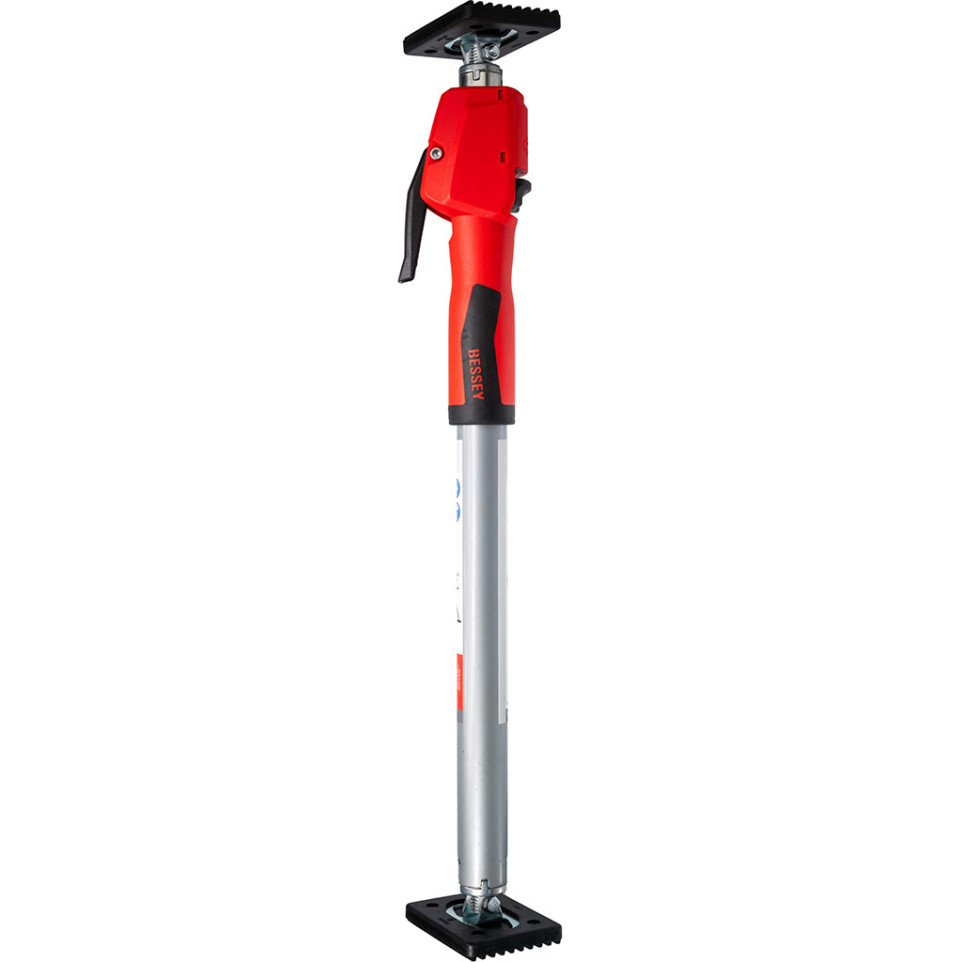

The Bessey STE 90 extendable press with pump handle is designed for securely supporting, fixing, or temporarily installing materials during dry construction, carpentry, interior fitting, and assembly work. Suitable for single-handed operation in confined spaces.
Advantages
- Supports loads up to 350 kg when fully retracted for reliable holding strength.
- Easy one-handed adjustment using a two-component plastic pump handle.
- Quick-slide button enables fast extension and retraction of the telescopic bar.
- Non-slip PVC contact surfaces (9 × 7 cm) provide stable positioning on various materials and angles from -45° to +45°.
- The product’s maximum load reduces as the extension increases; always observe specified limits during use.
Specifications
- Manufactured with heavy-duty coated steel tubes and reinforced PA6 plastic components for high durability.
- No GS certification on this model; adheres to Bessey’s internal quality standards for tool safety and performance.
- Adjustable length range: from 575 mm to a maximum of 910 mm. Maximum load capacity (fully retracted): up to 350 kg. Weight: approximately 1.8 kg per unit.
- Pump-action grip allows precise force control; swiveling end plates adapt securely from -45° to +45°, making it suitable even on sloped surfaces or staircases. Anti-slip system integrated in the grip enhances handling safety.
How it works
Select the desired length by pressing the quick-slide button and extending the bar. Fine-tune by pumping the handle until each end contacts your surfaces securely, then rotate the grip to achieve required holding force. Release is done by loosening the grip and pressing the release button before retracting.
