Usage

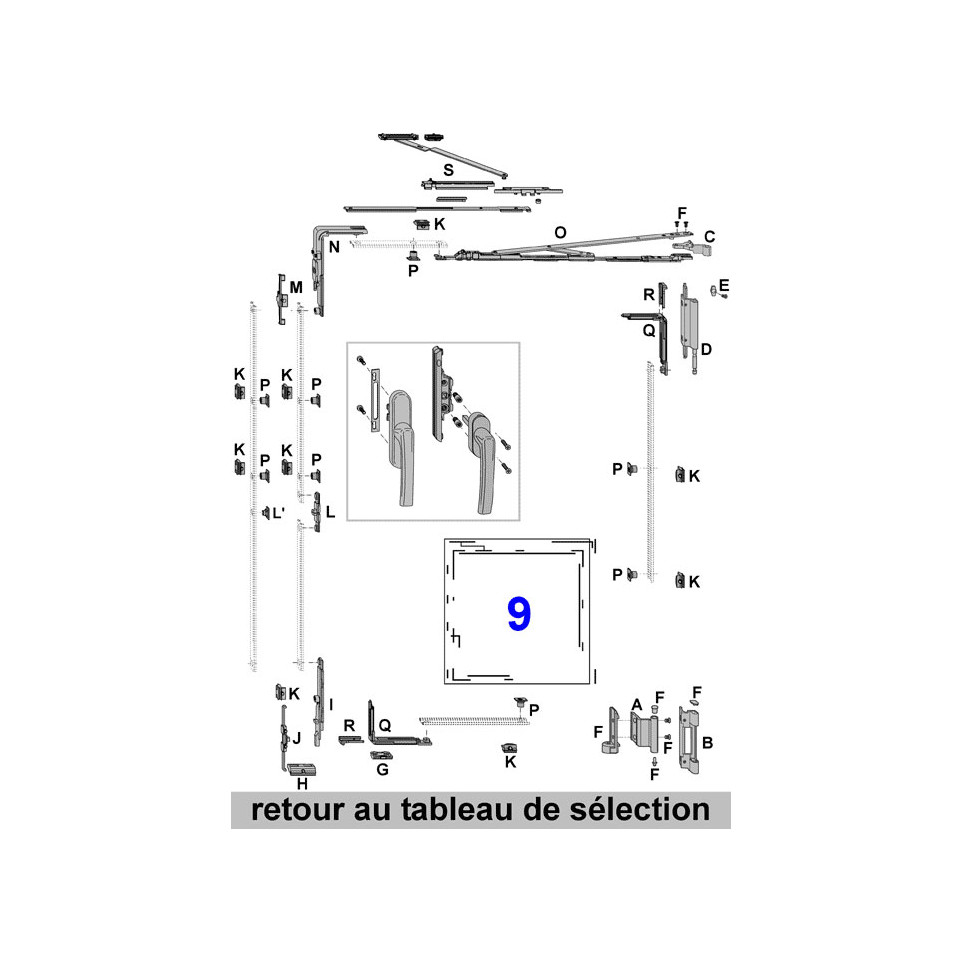

The Pivot d'angle ALU 540i anodisé ALU naturel Roto ALU 540i is designed for use as a corner pivot hinge in tilt-and-turn or turn-only windows and doors made from wood, PVC, or aluminium profiles. It ensures robust articulation at window corners.
Advantages
- Compatible with timber, PVC, and aluminium window and door systems for versatile installation
- Anodized natural aluminium finish provides enhanced corrosion resistance and extended lifespan
- High load capacity supports sash weights up to approximately 130 kg (per typical Roto standards)
- Smooth operation reduces friction wear thanks to precision-engineered bearing surfaces
- Simple modular integration into existing ROTO hardware systems; may require professional installation for optimal performance
Specifications
- The corner pivot is constructed from high-quality anodized aluminium, delivering both durability and a clean visual appearance suitable for modern fenestration systems.
- Treated with an anodised surface layer to meet contemporary corrosion protection requirements; compatible with all major European standards for window hardware.
- The typical load-bearing capability supports sashes up to around 130 kg depending on the full fitting configuration; suitable for large-format windows or balcony doors.
- Differentiated by its universal application across multiple frame materials—wood, PVC, aluminium—and seamless compatibility within established Roto modular fitting ranges.
How it works
The pivot is mounted at the corner of the sash profile where it functions as the rotational axis during opening. When integrated with other Roto fittings, it enables effortless tilting or turning action of large sashes in various window types.
