Roto Male Pivot Hinge A 12/20-9 (13) Left / pc
€8.92
In stock
Product

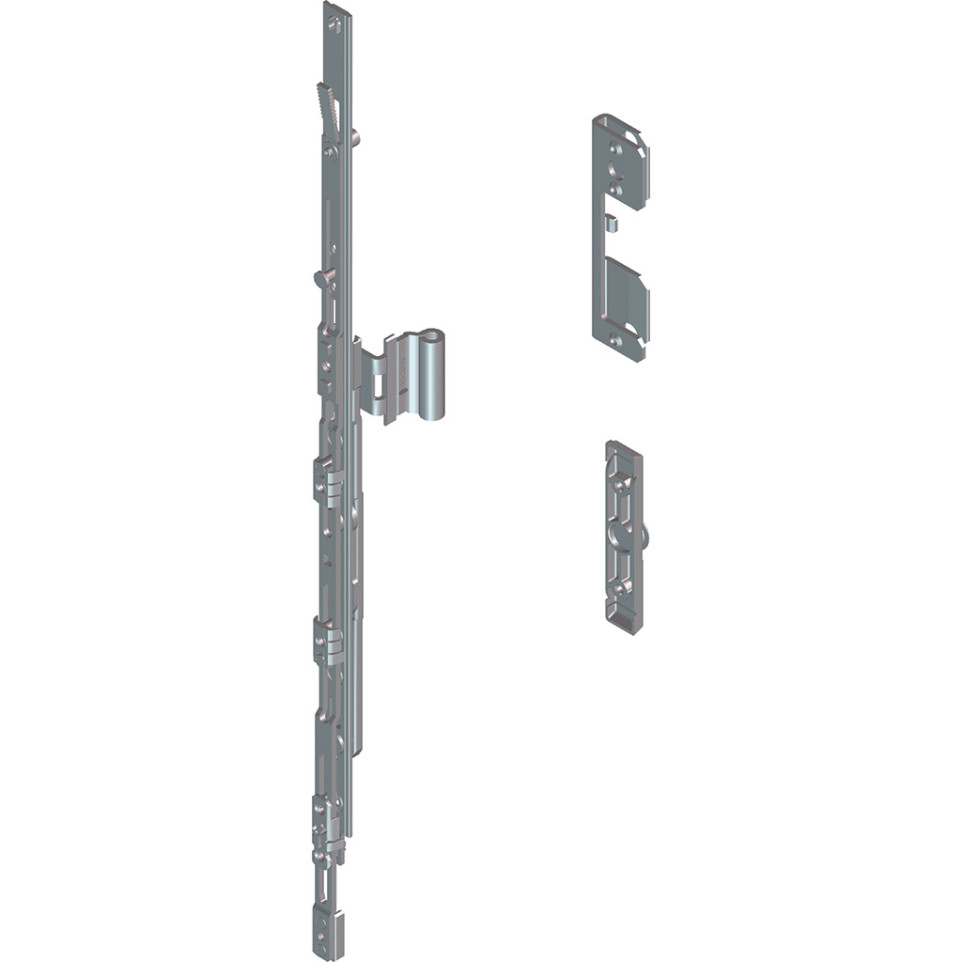

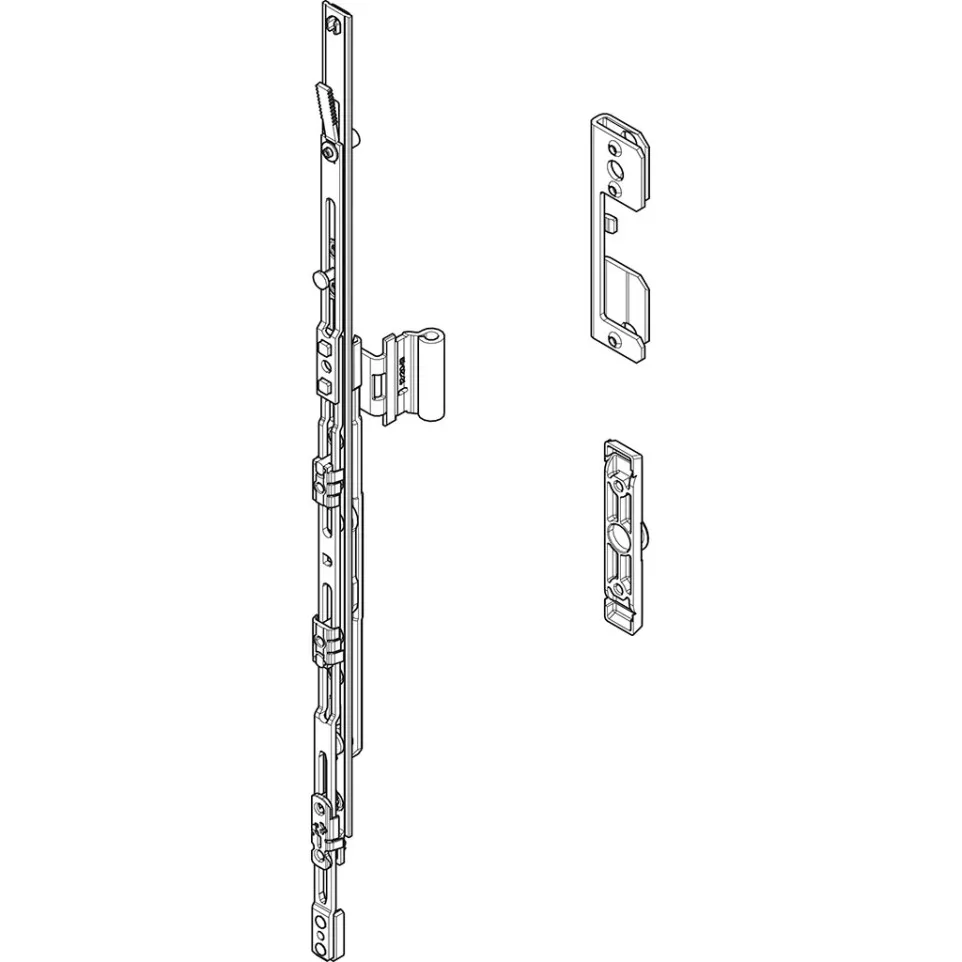

Right-hand SAV compass with bracket and slide support from Roto, designed for tilt-and-turn window systems in wood, PVC, or aluminium. Suitable for sashes weighing up to 80 kg, this fitting ensures precise and secure sash movement in demanding architectural settings.
Specifications
- Integrates with A & K 12/20-13 profiles for robust compatibility
- Constructed for high durability and reliable long-term function in diverse frame materials
- Features specialized components for arched and trapezoidal sashes, with specific parts identified by square-letter codes
- Supports sash weight up to 80 kg, making it ideal for medium-to-large window elements
- Shaded components are delivered with tilt-and-turn hardware, refer to circled numbers in technical documentation
Usage
Install the compass, bracket, and slide support as part of the sash fitting system for right-hand tilt-and-turn windows. Designed for use on wood, PVC, or aluminium frames, the system ensures smooth and secure operation, with straightforward integration for both standard and non-standard window shapes. Profile compatibility (A & K 12/20-13) should be confirmed before installation to optimize performance and service life.
FAQ
-
What is the maximum supported sash weight?
Supports up to 80 kg per sash. -
Is this product compatible with all window materials?
Yes, it can be installed on wood, PVC, and aluminium window frames. -
Are special parts needed for arched or trapezoidal sashes?
Yes, specific pieces for these shapes are marked with letters in a square in the documentation. -
Are shaded parts included in this set?
Shaded components come with the tilt-and-turn hardware; refer to circled numbers for identification. -
What profiles is this fitting compatible with?
Designed for A & K 12/20-13 profiles.
