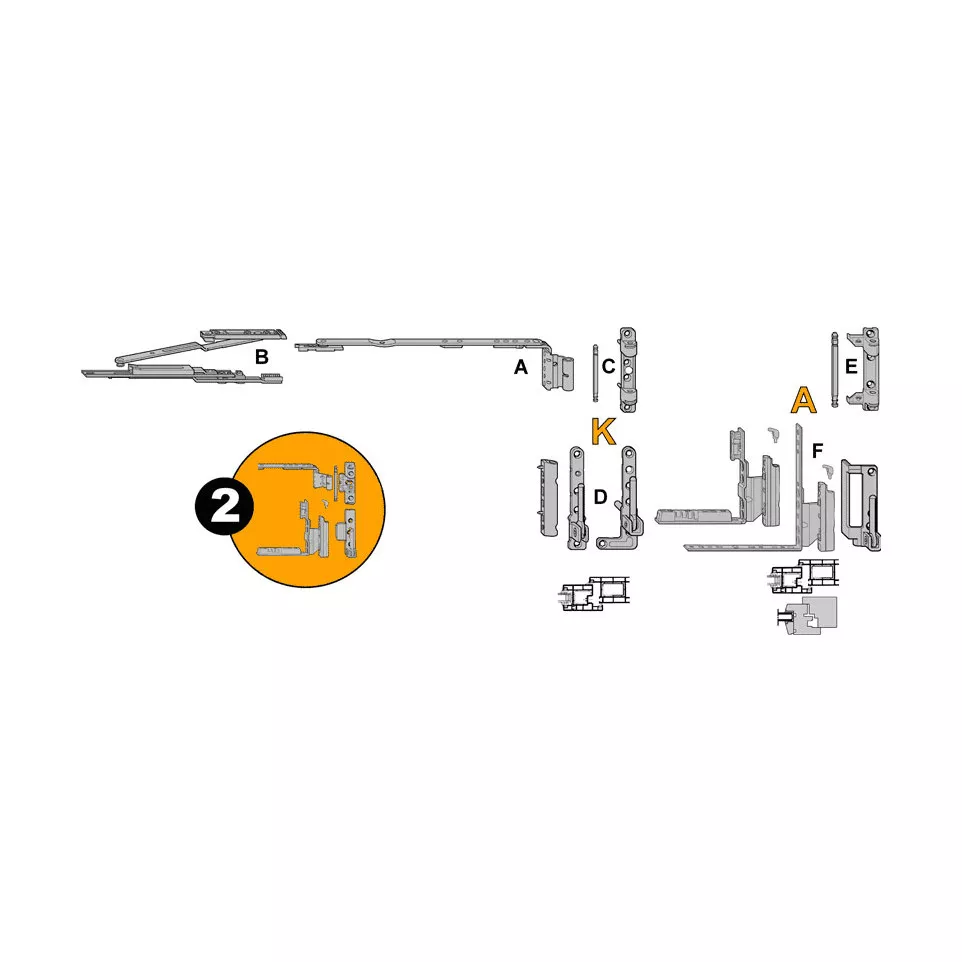

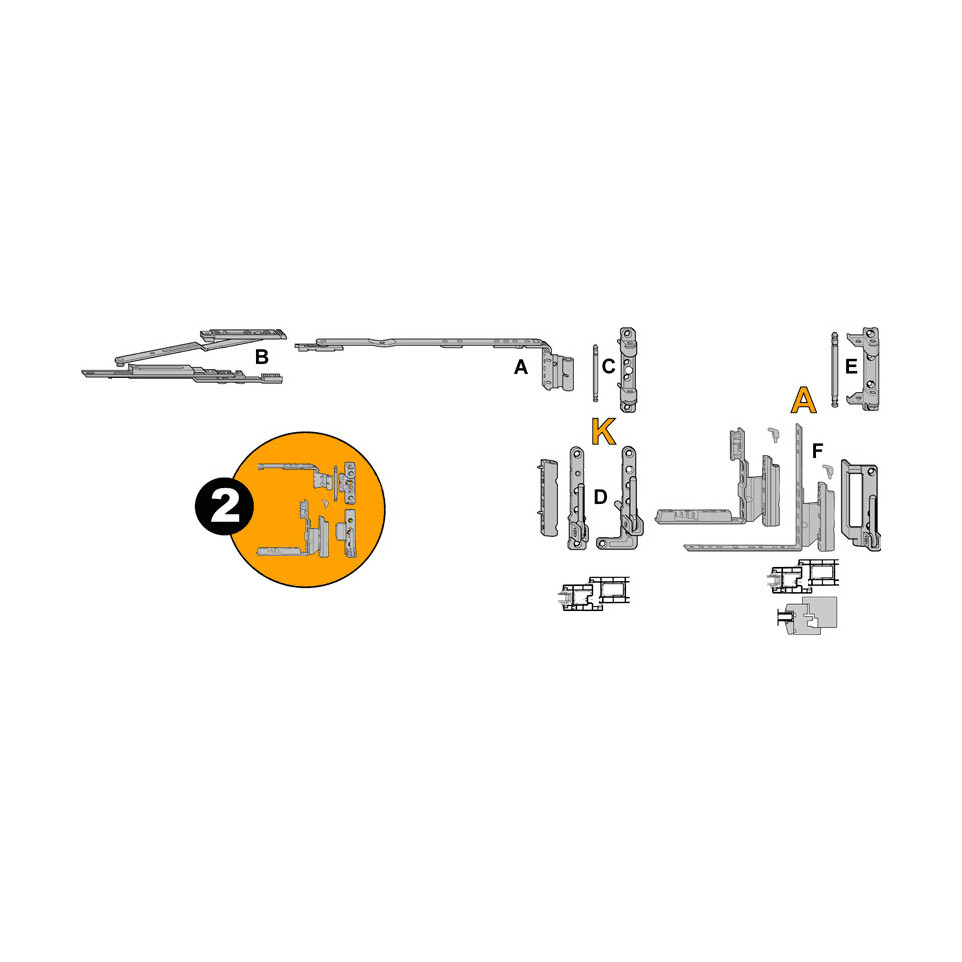

The SAV Compas 350 Roto A et K 12/20-13 TILT FIRST left is a robust window and door fitting designed for integration into wood, PVC, or aluminium frames, optimizing tilt-and-turn functionality in systems requiring precise, high-load hardware.
Specifications
- Designed for Roto K (PVC frames 12/18-9, 12/20-9, 12/20-13) and Roto A (wood, steel, or PVC frames 12/20-9)
- Supports sash weights up to 100 or 130 kg for Roto K models, and up to 130 kg for Roto A
- Roto K: male pivots and surface bearings; female pivots screw into sash overlap
- Roto A: male pivot and bearing with return; female pivots with bracket (18 mm surface mount or 16 mm EURO groove insert)
- Lateral clearance: 20 mm (Roto K), 20.5 mm (Roto A); Top: 1.5 mm (Roto K), 0 mm (Roto A); Bottom: 2 mm (Roto K 100 kg), 15 mm (Roto K 130 kg), 0 mm (Roto A)
- 3D adjustments: height (+2/-2 mm Roto K, +3/-3 mm Roto A), width (+4/-2 mm Roto K, +2/-2 mm Roto A), pressure (+1/-1 mm Roto K, +0.5/-0.5 mm Roto A)
- Allows sash openings up to 180°
- TILT FIRST function: prioritizes tilt before turn, with reversed handle action
- Suitable for LFF (clear opening width) 601–800 mm
Usage
Install the compas in compatible wooden, PVC, or aluminium frames to enable advanced tilt-and-turn opening for window sashes. The TILT FIRST mechanism ensures safe ventilation by tilting first before full sash opening, supporting secure and efficient operation for heavy and large sashes in residential or commercial environments.
FAQ
- What sash weights can the SAV Compas 350 Roto A et K accommodate?
Roto K supports up to 100 or 130 kg; Roto A supports up to 130 kg.
- Which frame materials are compatible with this fitting?
Suitable for PVC (Roto K), and wood, steel, or PVC (Roto A).
- What is the TILT FIRST function?
It means the window tilts before it is turned open, with reversed handle operation for increased safety.
- What are the main adjustment possibilities after installation?
Height, width, and pressure can each be finely adjusted in three dimensions.
- What is the maximum sash opening angle?
The product enables sash openings up to 180°, ensuring wide access and ventilation.
