Usage
This self-adhesive LED strip is designed for accent lighting in indoor spaces such as kitchens, living rooms, display cases, or work areas where cool white illumination and flexible installation are required.
Advantages
- Flexible 5-meter length adapts to various surfaces and can be cut for custom fits
- Integrated switch allows easy on/off control without additional wiring
- SMD 2835 LEDs deliver efficient cool white light with consistent brightness
- Self-adhesive backing simplifies installation on smooth surfaces
- Slim profile (8mm width) remains discreet but may require protection from dust or moisture due to IP20 rating
Specifications
- Design: Flexible printed circuit board equipped with SMD 2835 LEDs spaced at a density of 60 LEDs per meter; total length of strip is 5 meters, with an overall width of approximately 8 mm[1][6]
- Materials/Technologies: SMD LED technology delivers bright and energy-efficient output; integrated adhesive layer on the back facilitates direct mounting[1][7]
- Protection/Class: Rated IP20—intended for indoor use only; not resistant to water or heavy dust ingress[3][9]
- Lifespan: Typical usable life up to approximately 30,000 hours under standard operating conditions[3]
- Luminous Output & Power: Consumes up to a maximum of about 30W (12V DC power supply required); emissions are in cool white spectrum (usually around 6000–6500K)[6]; brightness estimated at up to approximately 420–480 lumens per meter depending on manufacturer efficiency standards[1][6]
- Differentiating Features:

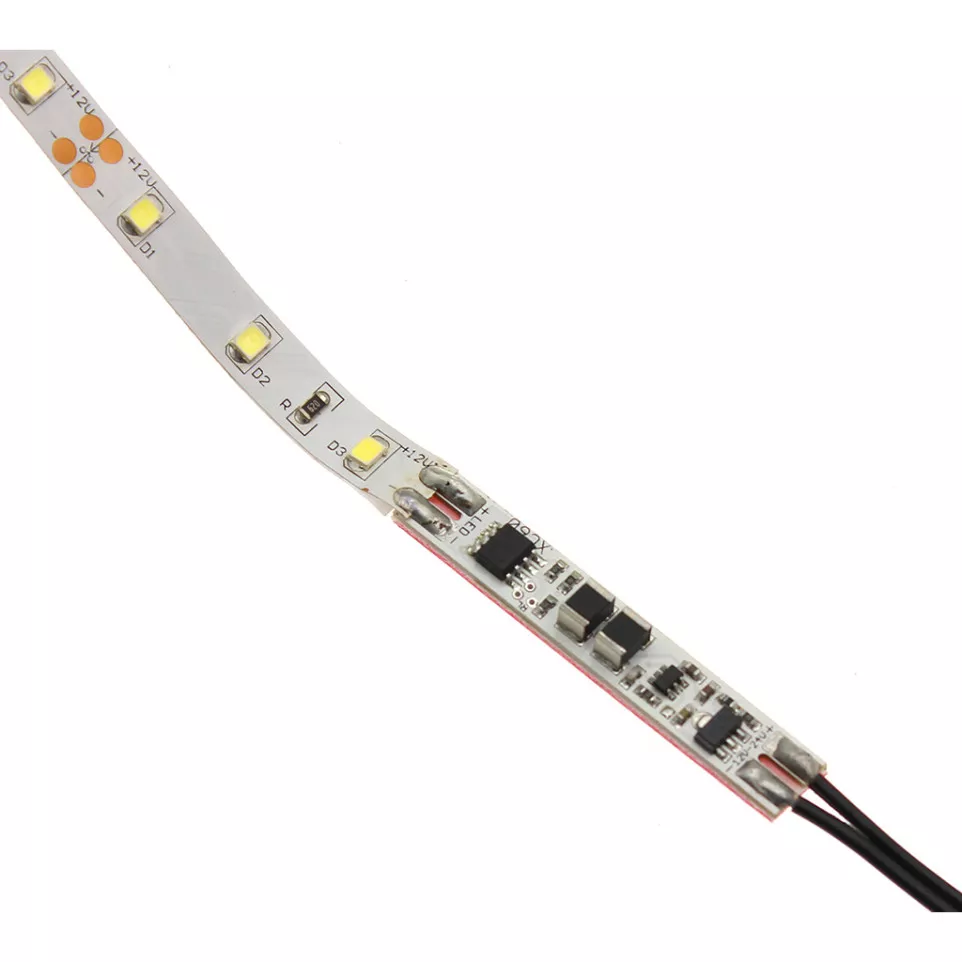

- Equipped with an inline switch for direct manual operation
- Can be trimmed/cut at marked intervals for precise lengths
- Slim design suits narrow profiles and hidden installations
How it works
The strip operates by connecting its terminals to a compatible low-voltage DC power source (12V). After peeling off the liner from the adhesive back, mount the strip onto any clean surface. Use the built-in switch for simple light control as needed.
