Usage

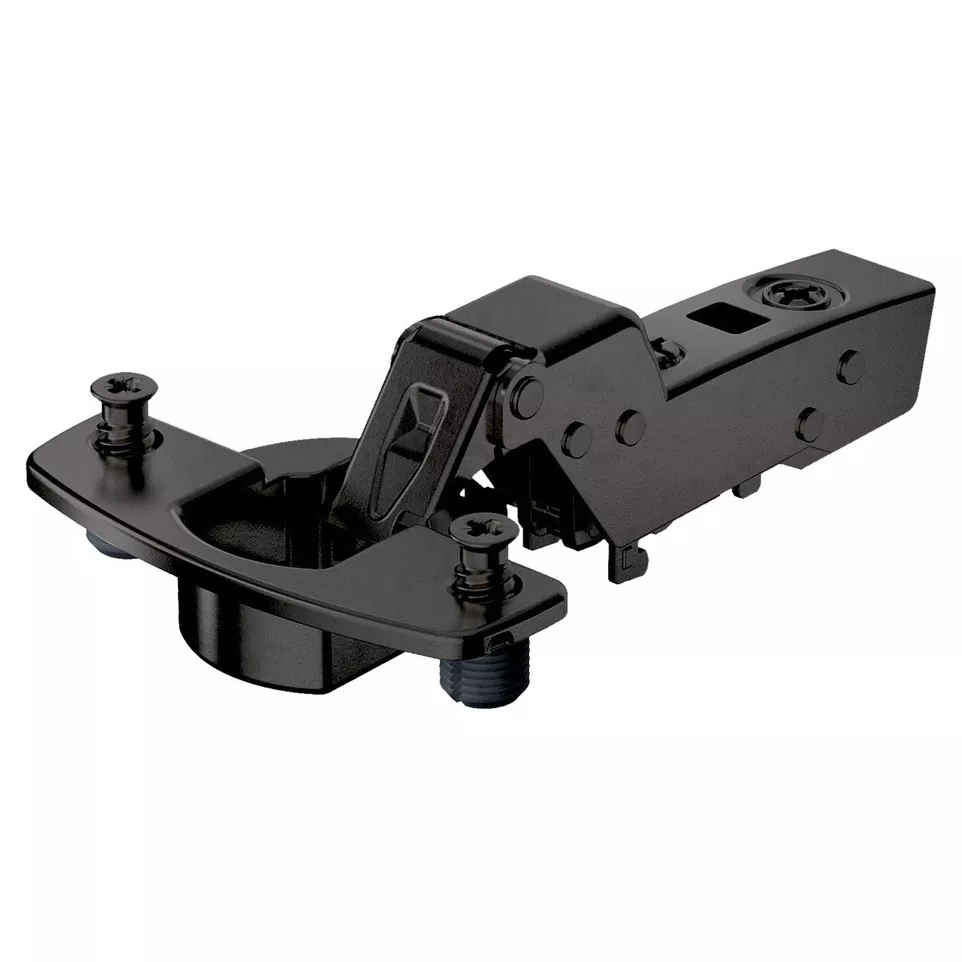

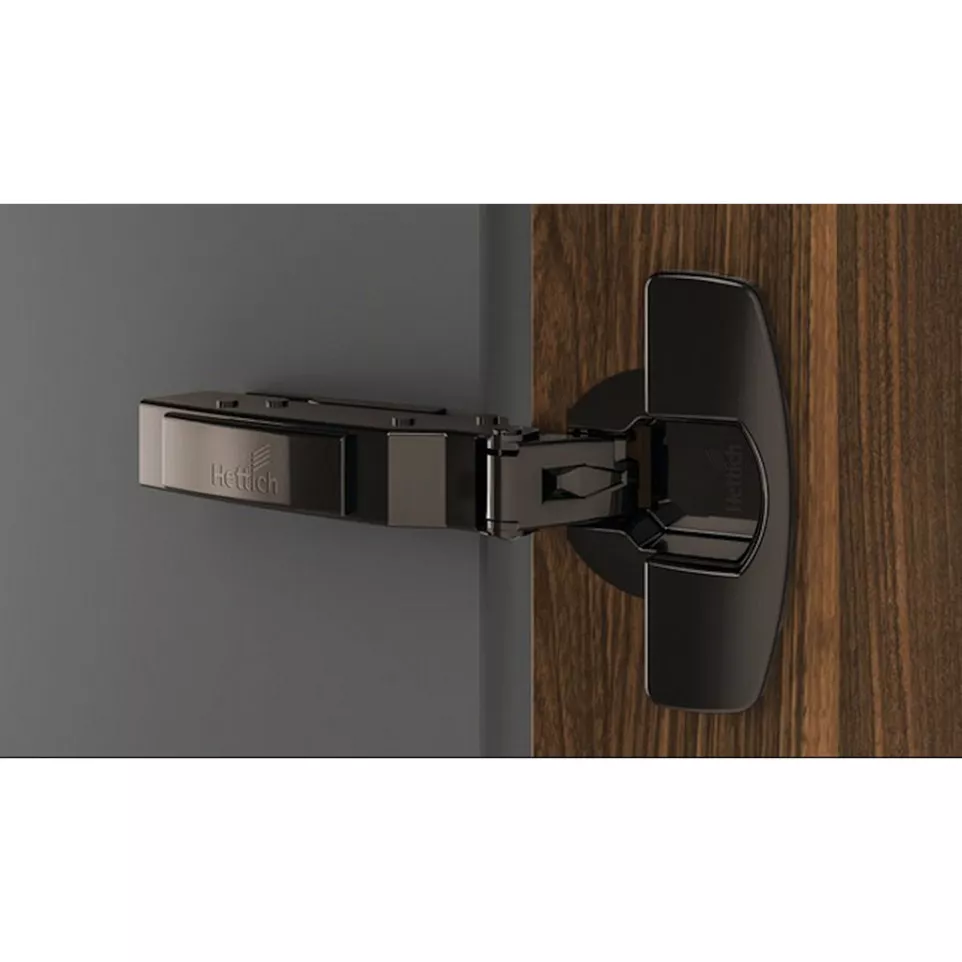

The Charnière Sensys 8645i 110° noir obsidien is designed for mounting cabinet doors in residential or commercial furniture, particularly where a sleek, dark finish and high-performance soft-closing mechanism are desired.
Advantages
- Integrated soft-close mechanism ensures quiet and controlled door closing.
- Obsidian black finish provides a modern aesthetic that complements dark interior designs.
- 110-degree opening angle offers easy access to cabinet interiors without obstruction.
- Expansion sleeves (Ø10x11mm) allow fast, tool-free press-fit installation in pre-drilled holes.
- The snap-on mounting with expansion dowels may require matching hole dimensions during retrofit installations.
Specifications

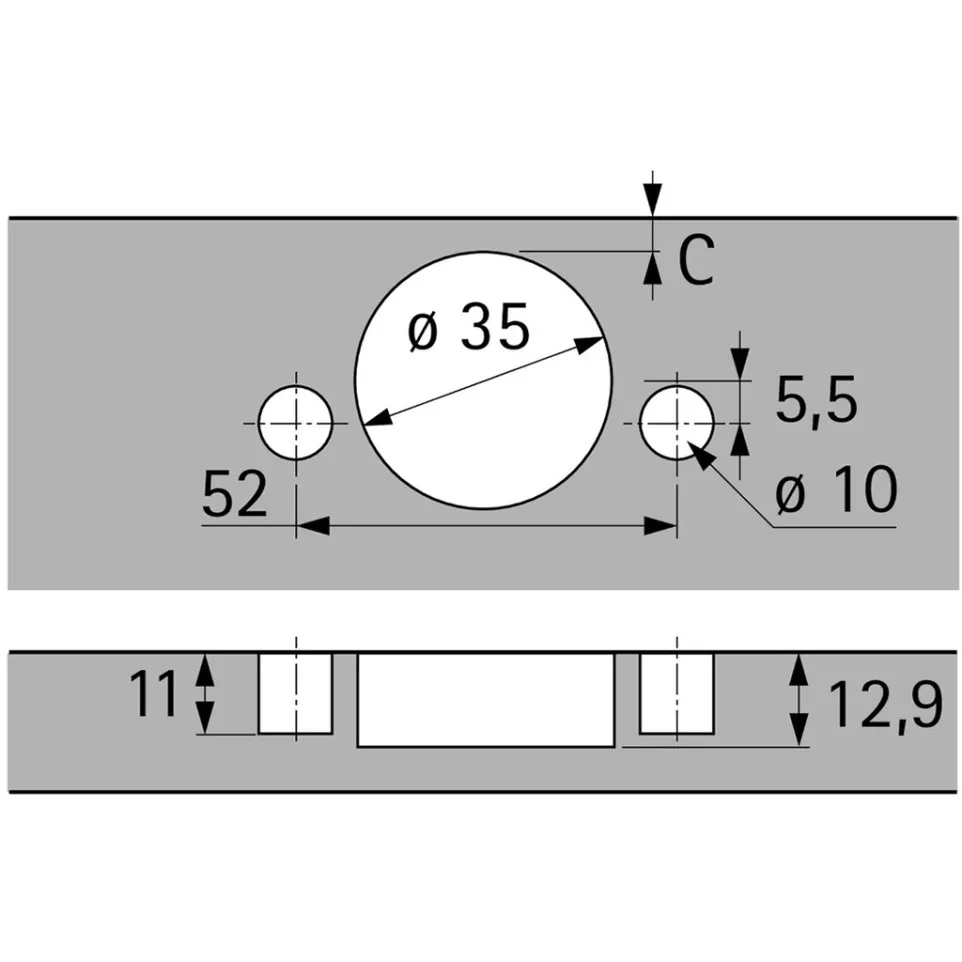

- Design & Materials: Made from robust metal alloy with an obsidian black coating; equipped with integrated damping technology for gentle closure; compatible with standard cup drilling of Ø35mm. Mounts via expansion sleeves (Ø10x11mm).
- Durability & Certification: Engineered for high-frequency use; tested to withstand tens of thousands of opening/closing cycles under typical furniture loads; corrosion-resistant surface treatment extends product lifespan in indoor environments.
- Performance Metrics: Opening angle: up to 110°; cup depth: approx. 12.8 mm; recommended door thickness: from approximately 16 mm upwards depending on application requirements. Integrated damping reduces slamming force even on heavier doors.
- Differentiating Features: Built-in silent close, quick screw-less installation with expansion dowels, elegant black finish specifically developed to match contemporary design trends, and compatibility within the Sensys hinge system family for modularity across projects.
How it works

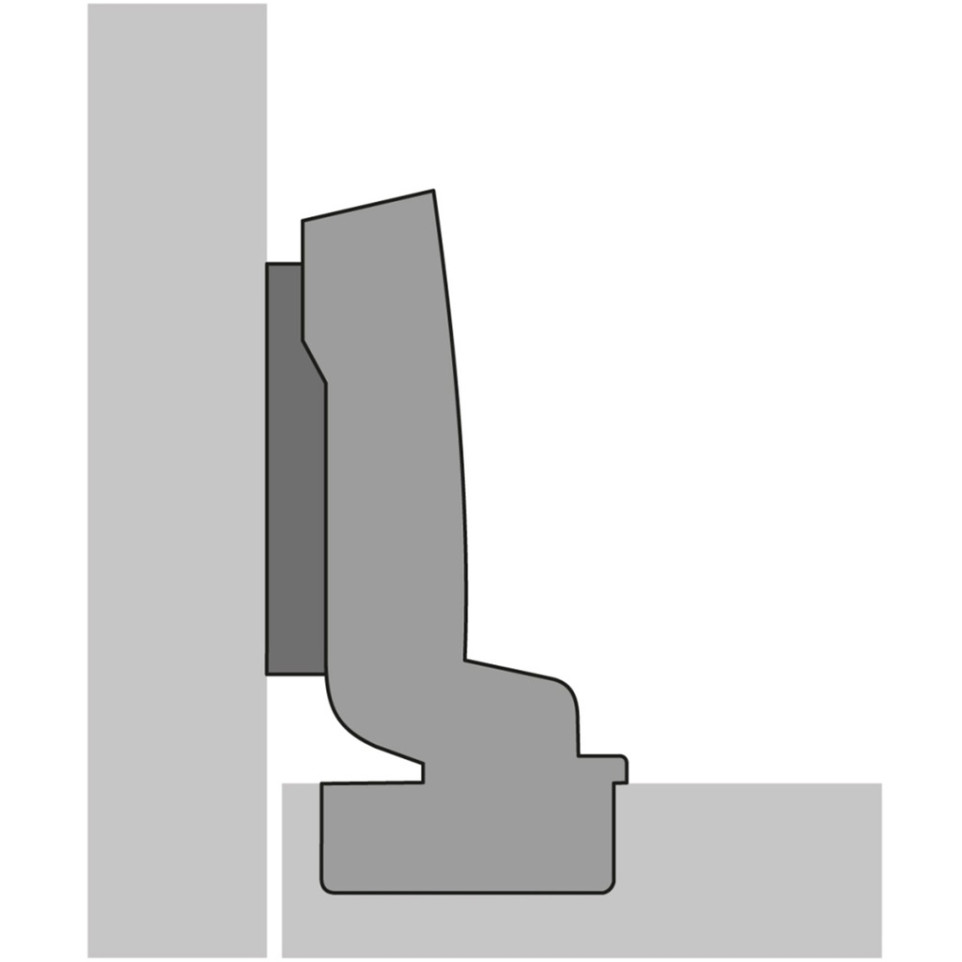

This stud hinge installs into bored holes using its integrated Ø10x11 mm expansion sleeves—no screws required—locking securely by friction. The Sensys mechanism controls movement so the door closes softly as it approaches the final position, improving user comfort and protecting cabinetry over time.
