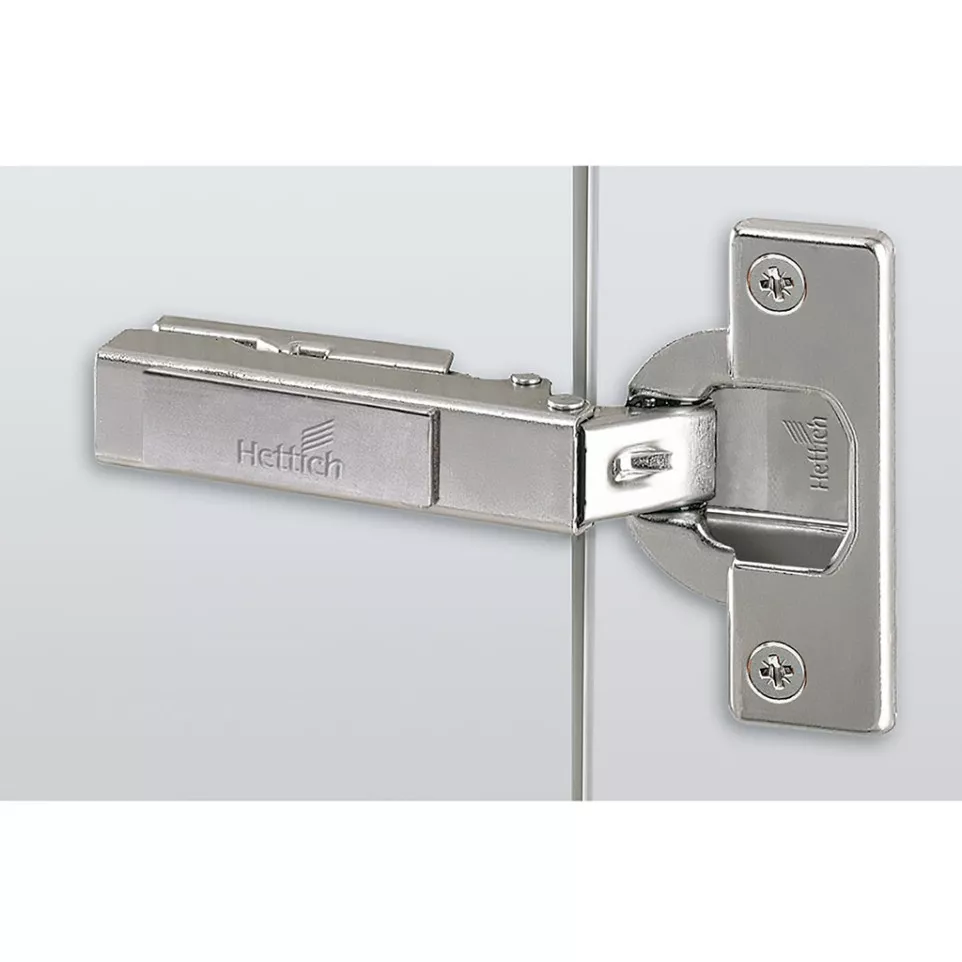

Hettich Intermat 9943 110° Nickel-Plated Screw-On Hinge, Self-Closing, Half Overlay, No Soft Close

Usage

The Charnière Intermat 9943 110° hinge is designed for mounting semi-overlay doors on cabinets and furniture, enabling automatic door closing without soft-close functionality. It is suitable for wooden doors with a thickness between 15 mm and 25 mm.

Advantages

• Self-closing mechanism ensures reliable door closure in daily use.
• Supports a wide opening angle of up to 110° for easy access to cabinet interiors.
• Nickel-plated steel construction provides good resistance to wear and corrosion.
• Adjustable overlay (+/-2 mm) and depth (+2.5/-1.5 mm) simplify precise alignment during installation.
• Lacks integrated damping, making it more cost-effective but may produce audible closing sounds compared to soft-close models.

Specifications

• Design/materials: Semi-overlay stud hinge made from nickel-plated steel, cup diameter: 35 mm, cup depth: approximately 11.6 mm, TH42 screw-on pattern with fixing centers at either ø52 or ø45 mm depending on version[4][5].
• Sustainability/certification: Classified EN15570 Level 3 quality standard for durability[1][4].
• Performance: Opening angle up to 110°, suitable for doors from 15 mm up to 25 mm thick; reversible handing; automatic closing function[1][4][5].
• Differentiation: Allows fine adjustment (overlay/depth/height at mounting plate), robust all-metal build without integrated damping system[1].

How it works

This concealed hinge is fixed by screwing onto the cabinet frame and the semi-overlay door panel. Once mounted, its self-closing spring draws the door shut as it approaches full closure, providing smooth operation across a wide opening range.[1][4]
