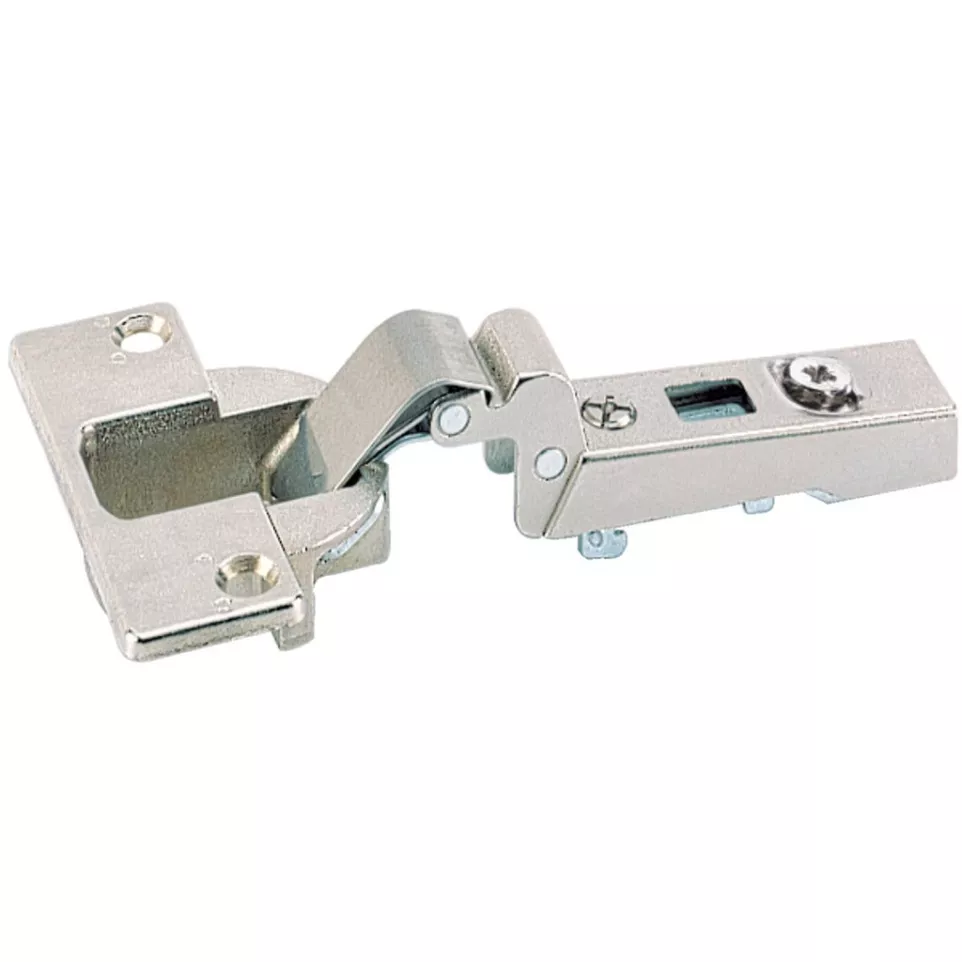

Intermat 9935 95° Nickel Plated Screw-On Hinge, No Soft Close, Self-Closing, Semi-Overlay Door Up to 43mm[1][5][7]

Usage

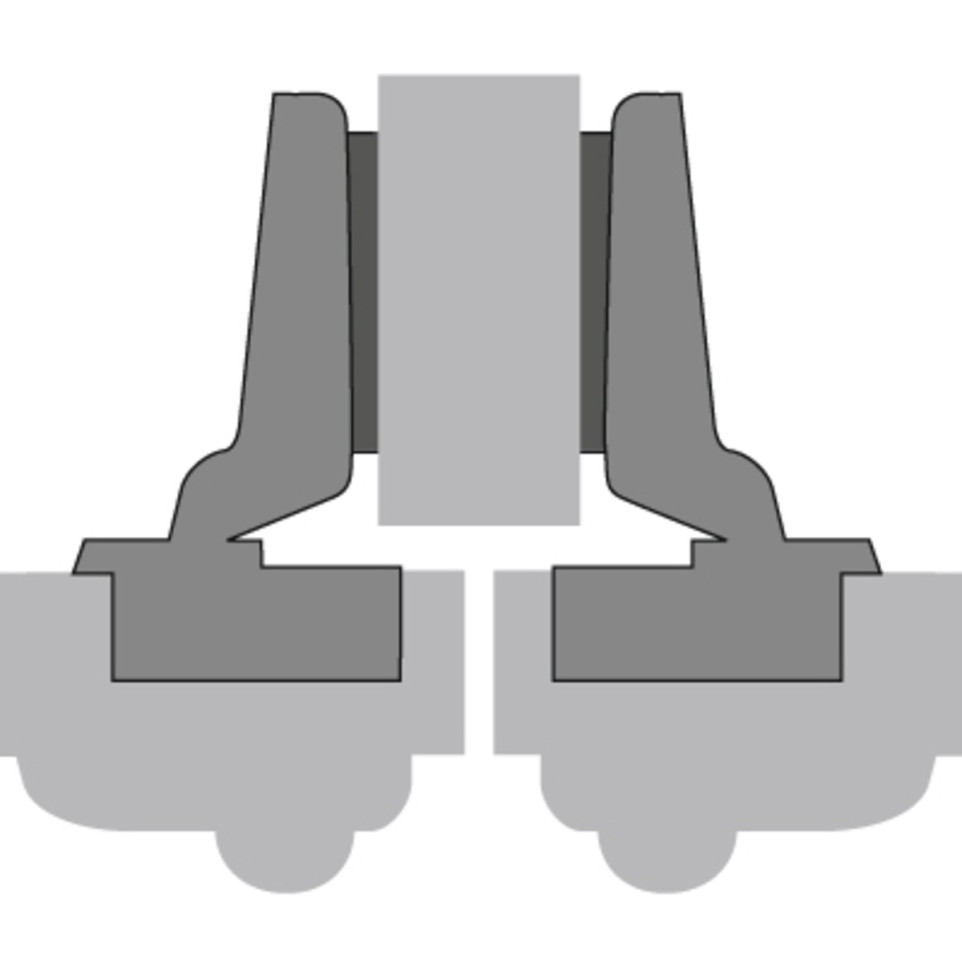

The Intermat 9935 95° nickel-plated hinge is designed for mounting semi-overlay cabinet doors, especially suitable for thick profile wooden doors in furniture and joinery applications.

Advantages

• Reliable automatic closing mechanism ensures doors remain shut securely without manual effort.
• Suitable for doors with thickness between 26 mm and 43 mm, accommodating a wide range of cabinet designs.

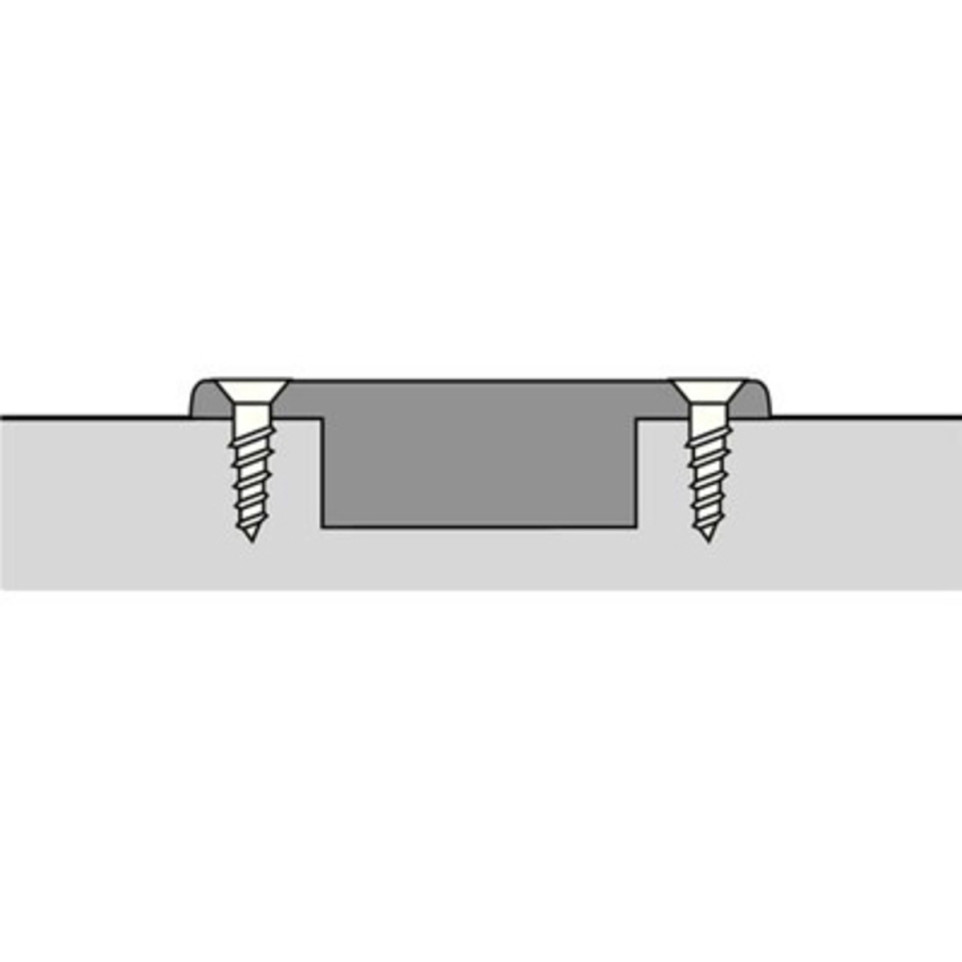

• Quick installation by screwing provides sturdy fixing and easy adjustment during setup.
• Three-way adjustment (overlay, depth, height) allows precise door alignment after installation.
• No integrated soft-close system; best suited where controlled fast closing is preferred or required by design standards.

Specifications

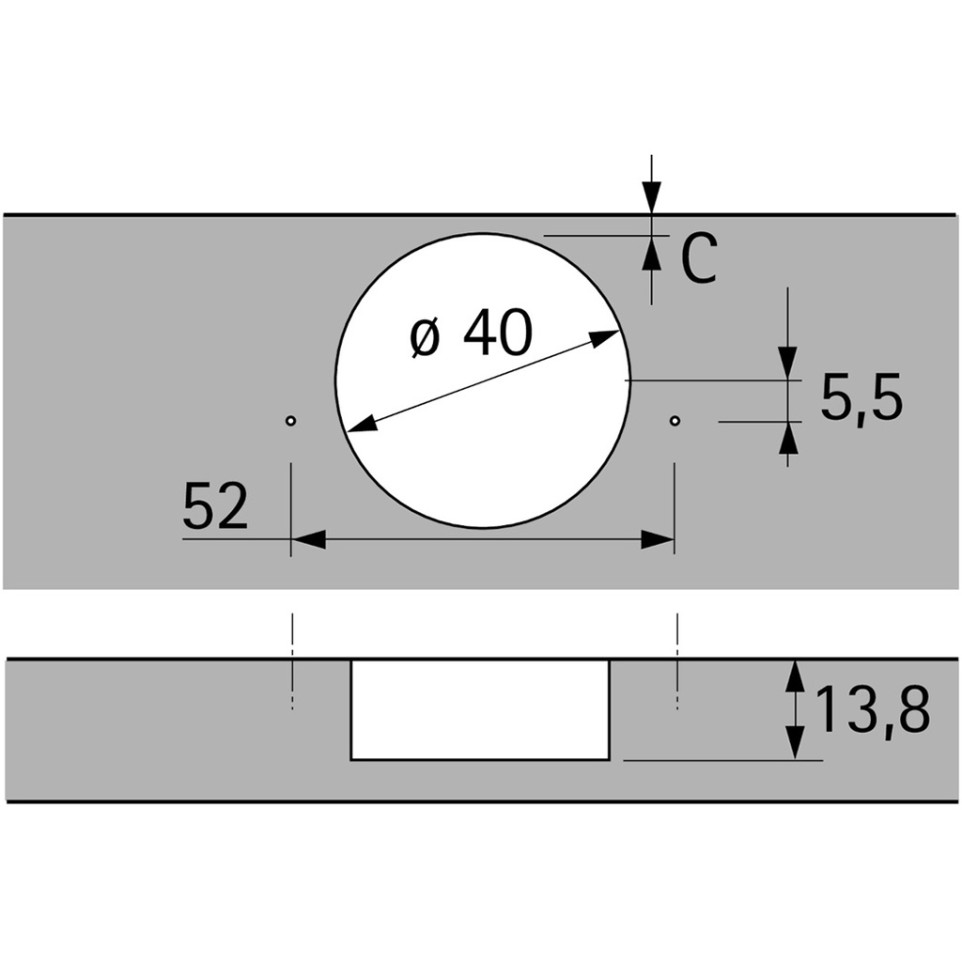

• Design & Material: Nickel-plated die-cast zinc body with TH22/L cup version; cup diameter: 40 mm; cup depth: ~13.7 mm [1][5].
• Quality & Standards: Certified to EN15570 Level 2 durability classification [7].
• Performance: Maximum opening angle: 95°; minimum door thickness: 26 mm; maximum door thickness: 43 mm; drilling pattern: TH52 x 5.5 mm [1][3][7].
• Differentiating Features: Self-closing spring (no damper); adjustable overlay (+/- 2 mm), depth (+2.5/–1.5 mm), height (via mounting plate); intended for screwing on without clips or push-in fittings [1][3][9].

How it works

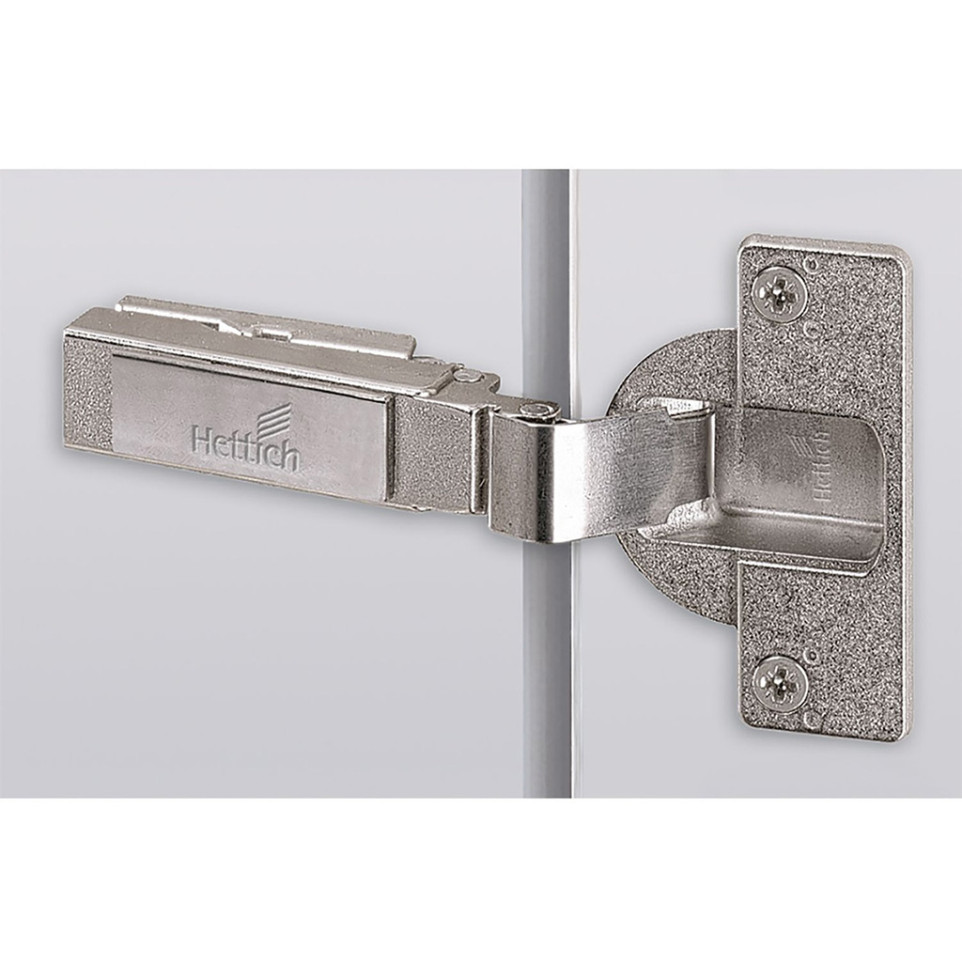

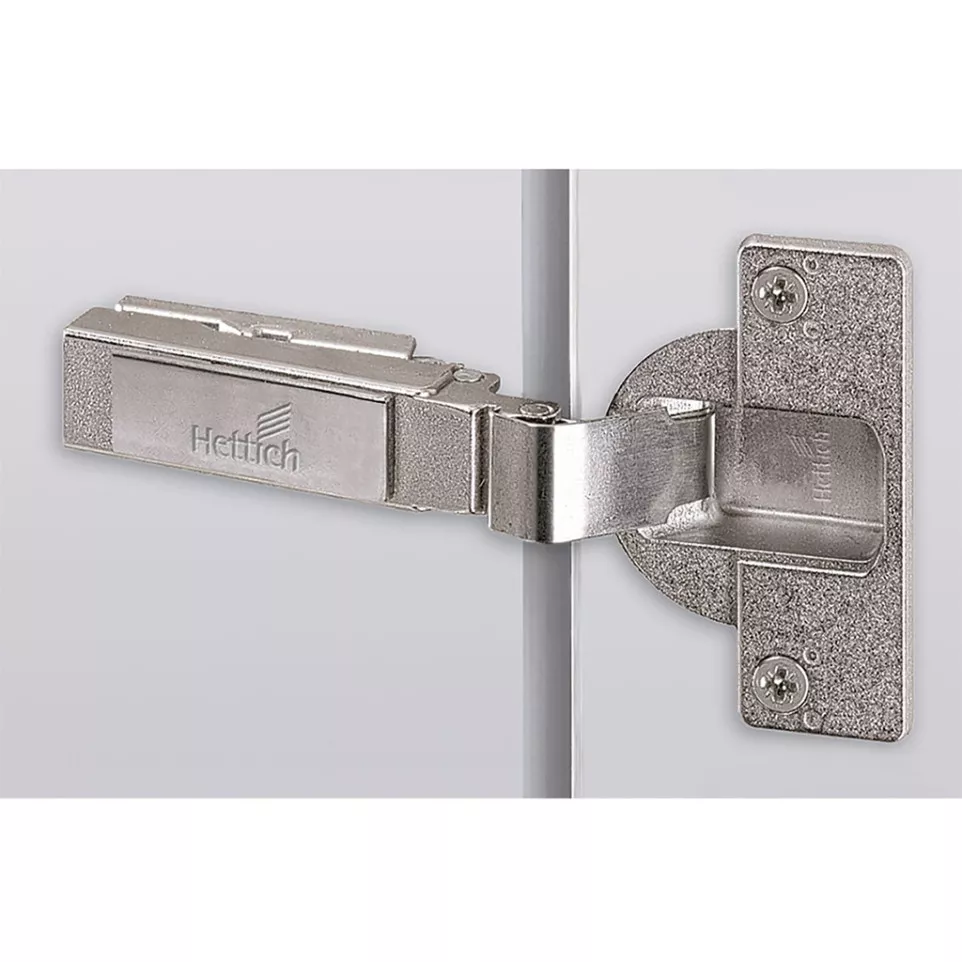

This hinge mounts onto the cabinet frame and door using screws. Its built-in spring ensures the door closes automatically when pushed toward the frame, while tool-free adjustment points enable fine-tuning of overlay, depth, and height to achieve optimal fitment in semi-overlay configurations.
