Nickel-Plated Cruciform Mounting Plate with Screws for Particle Board (for 2.5mm Drilling) with Height Adjustment

Product

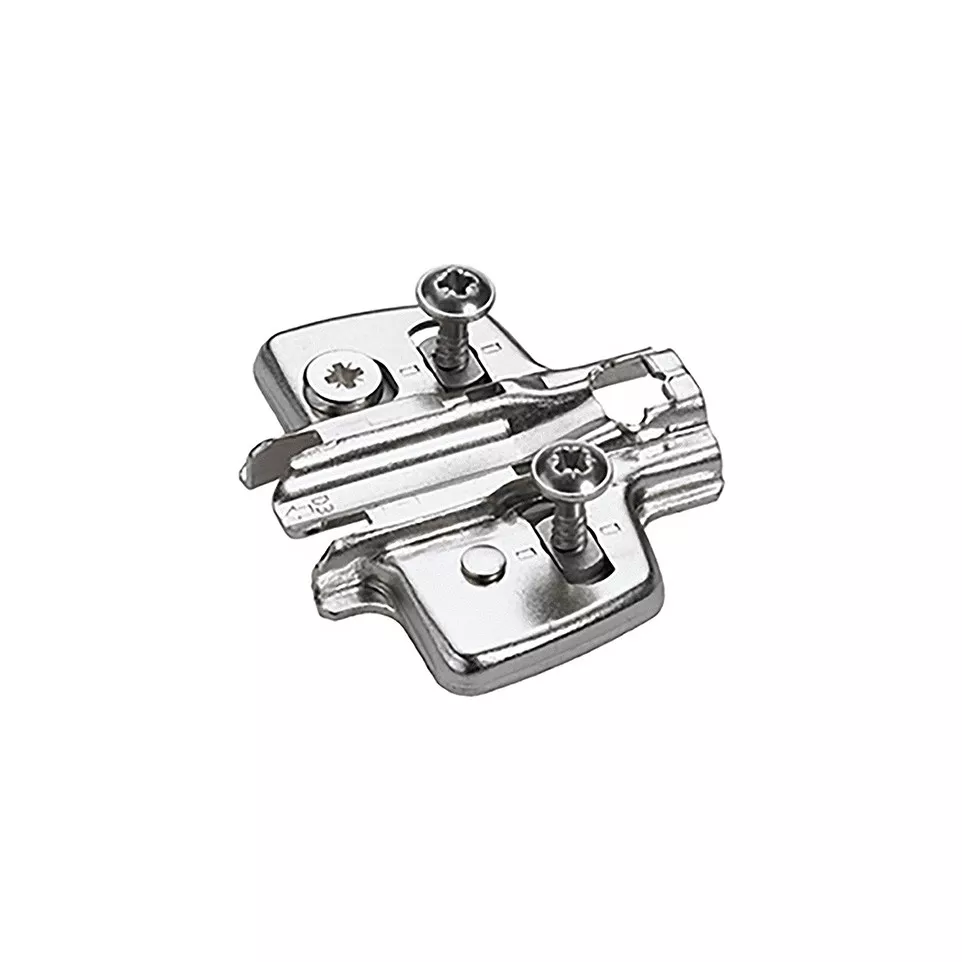

Cruciform mounting plate in nickel-plated steel, designed for use with Sensys, Novisys, and Intermat concealed hinges. Features direct height adjustment and is suitable for particle board panels with 2.5 mm pilot holes. Ideal for cabinet installations requiring fine vertical alignment.

Specifications

• Nickel-plated steel construction for durability and corrosion resistance
• Direct height adjustment range: +2 mm / -2 mm
• Quality classification: EN 15570, Level 3

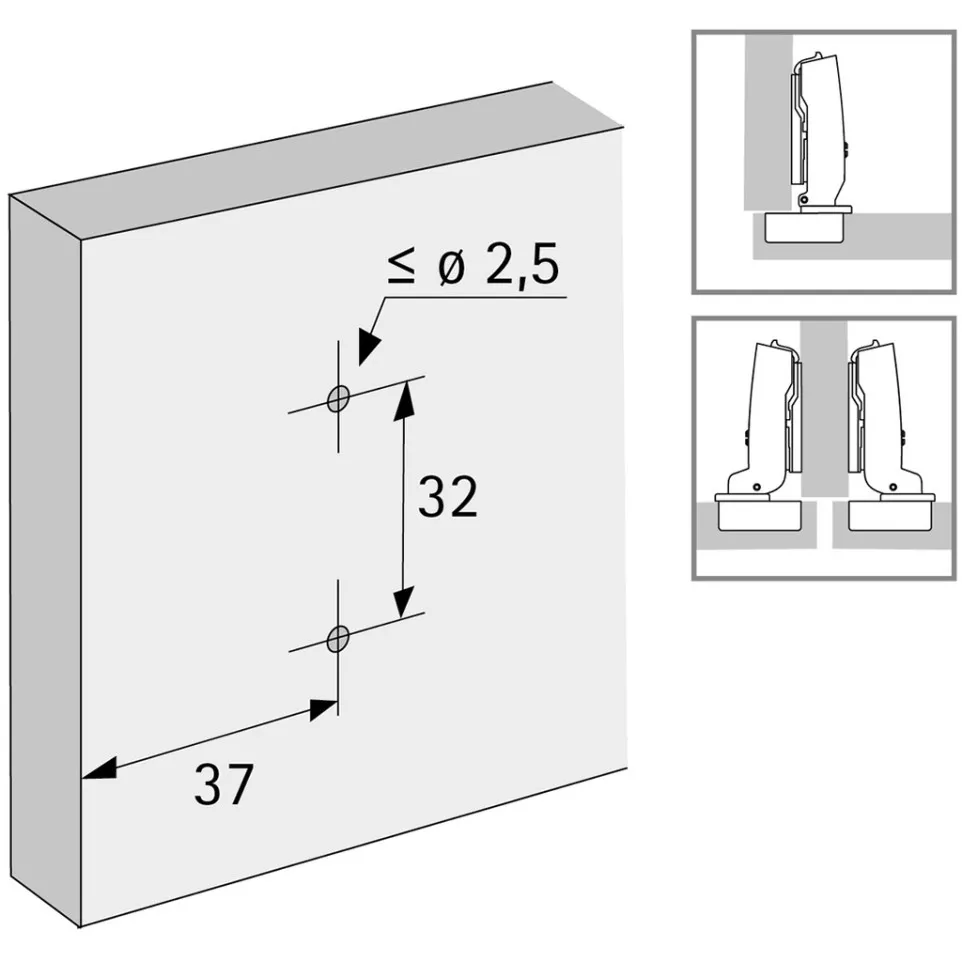

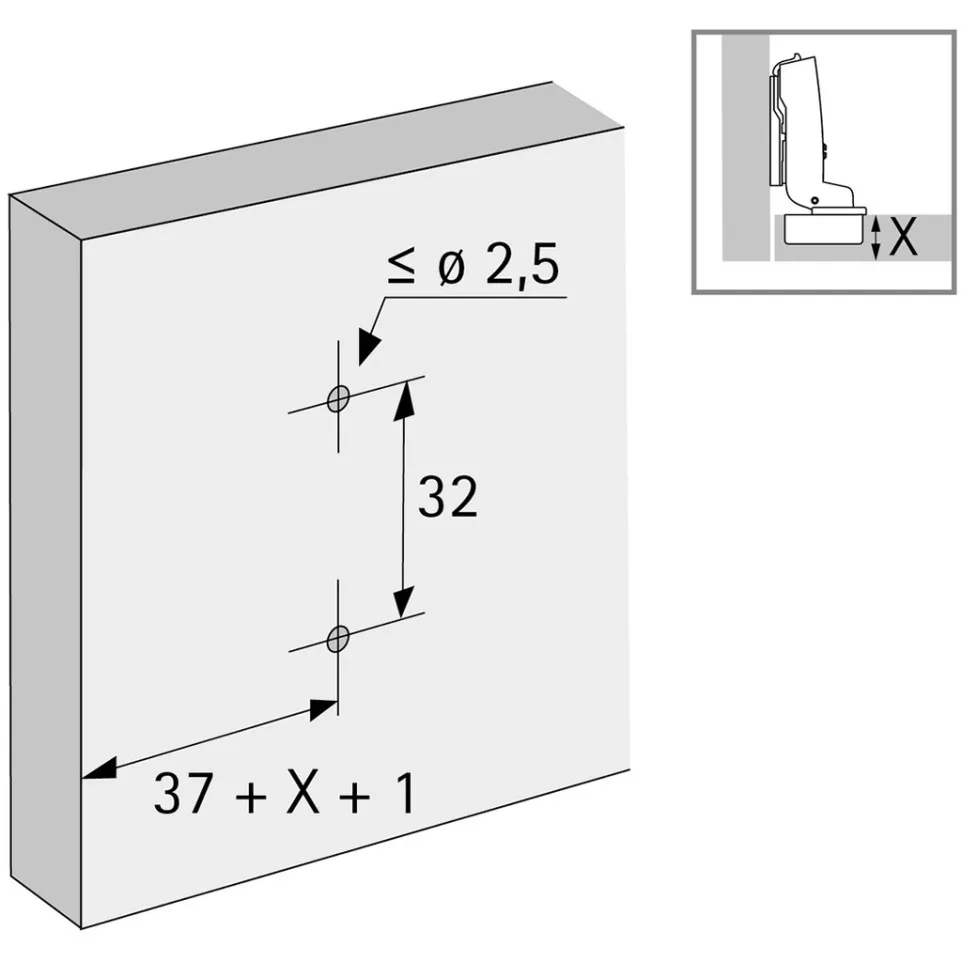

• Compatible drill pattern: 37 x 32 mm
• Designed for screw mounting on particle boards (drilling diameter 2.5 mm)
• Zero distance version (0.0 mm offset)
• Suitable for Sensys, Novisys, and Intermat hinge systems

Usage

Install the cruciform mounting plate onto the cabinet frame or panel by drilling 2.5 mm holes at the specified 37 x 32 mm positions. Secure with screws, attach the corresponding hinge, and use the direct height adjustment to fine-tune the door alignment for precise and reliable fitting.

FAQ

1. Which hinges are compatible with this mounting plate?
   The plate is compatible with Sensys, Novisys, and Intermat concealed hinge systems.

2. What adjustment options does this plate offer?
   It provides direct vertical adjustment of +2 mm and -2 mm.

3. What type of panels is it suitable for?
   It is intended for use with particle board panels requiring 2.5 mm diameter pilot holes.

4. Does it meet any quality standards?
   Yes, it is classified at Level 3 according to EN 15570.

5. What is the mounting hole arrangement?
   The mounting holes are spaced at 37 mm by 32 mm.
