Which hinges are compatible with this mounting plate?

This plate is designed for Sensys, Novisys, and Intermat stud hinges.

How is the height adjusted?

The direct adjustment mechanism allows for vertical movement of +2 mm or -2 mm after installation.

What material is used for the plate?

It is made from steel with a nickel-plated finish.

What is the required drilling size for installation?

Use 2.5 mm diameter holes in particleboard panels for mounting screws.

What is the mounting distance and hole pattern?

The distance is 3.0 mm and the hole line is 37 x 32 mm.

€1.18 HT

Customization request

We look forward to working on your offer! Please fill in the fields below

How many items do you want ? *

But before starting, could you tell us a bit more about your project ?

If you already want to send us a logo or file, you can do so here. Choisir un visuel (Max 20MB)

Your name *

Your email *

Your phone *

Send Close

Nickel Plated Cruciform Mounting Plate with Screws for Particleboard Panels for 2.5mm Drilling Height Adjustable

Name: Nickel Plated Cruciform Mounting Plate with Screws for Particleboard Panels for 2.5mm Drilling Height Adjustable
Brand: Hettich
SKU: FGT-234102
Price: 1.18 EUR
Availability: InStock

Inc. Ex.

Estimated delivery date : Friday 31 July

€1.18 HT

In stock

Ref : FGT-234102

Quantity

Add to your shopping List

You must be logged

Description

Product

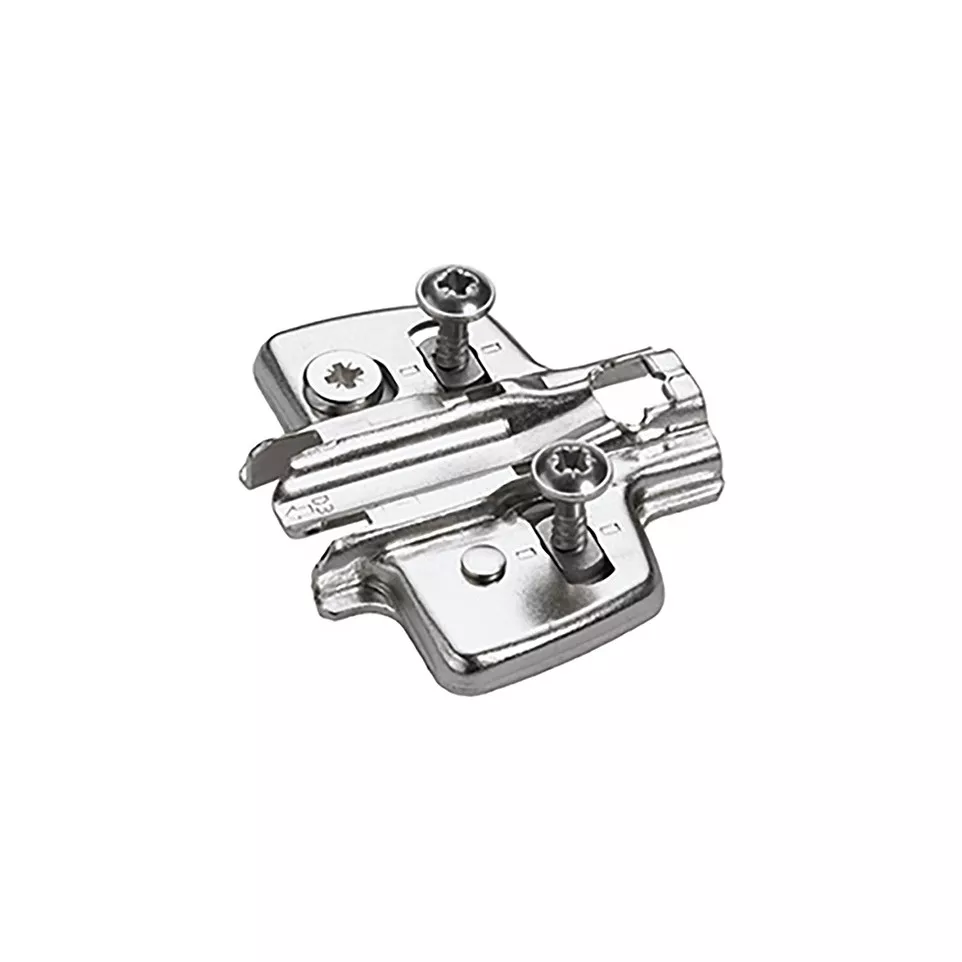

Nickel-plated cruciform mounting plate with direct height adjustment, designed for use with Sensys, Novisys, and Intermat hinges. Suitable for particleboard panels requiring 2.5 mm diameter pre-drilling, ensuring precise and secure hinge mounting in cabinetry.

Specifications

Nickel-plated steel for enhanced durability and corrosion resistance
Classified at EN 15570 quality standard, Level 3
Direct vertical adjustment range of +2 mm / -2 mm

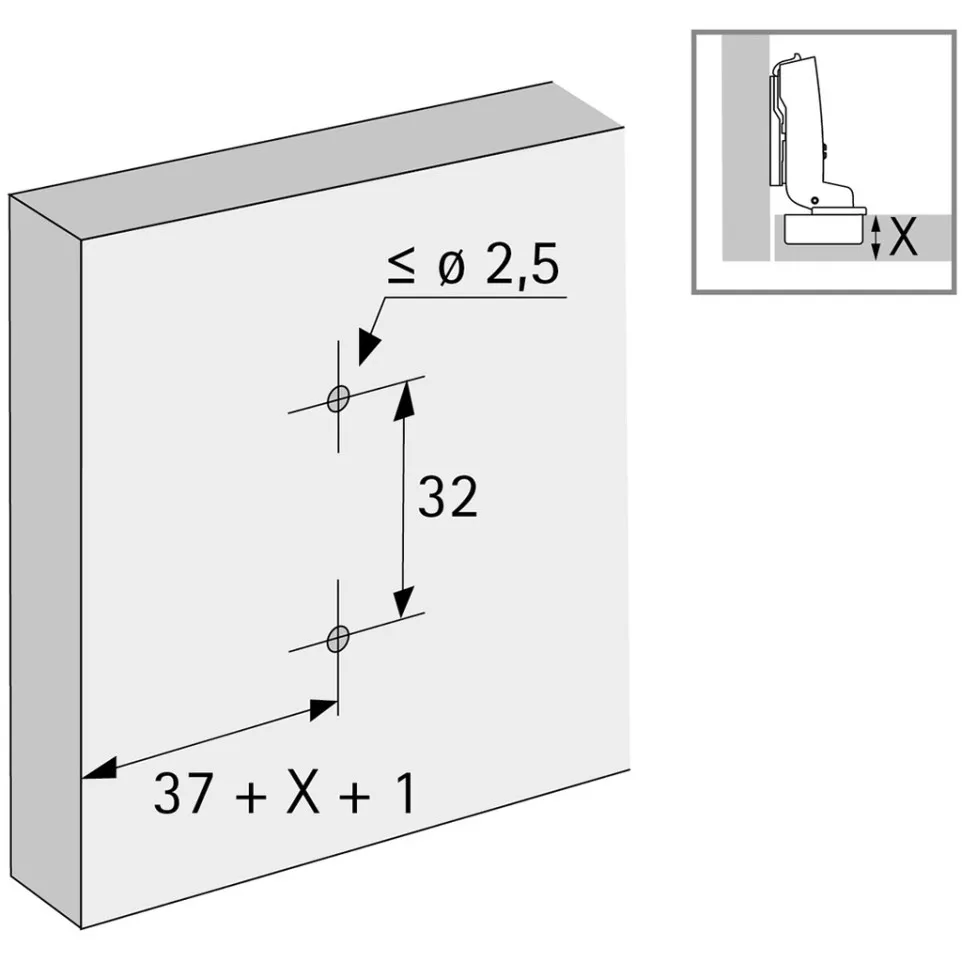

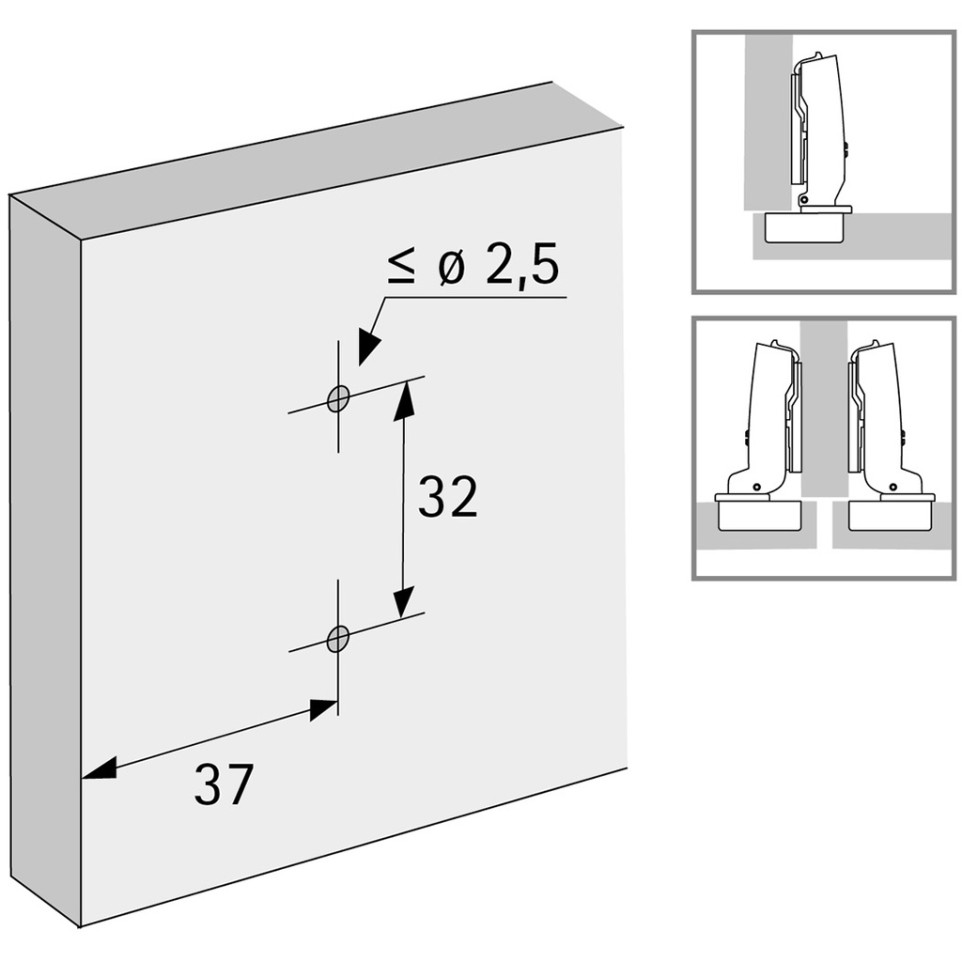

Compatible with 37 x 32 mm hole lines
Mounting with screws for particleboard (for 2.5 mm boreholes)
3.0 mm mounting distance

Usage

Install the mounting plate onto the cabinet panel using screws in pre-drilled 2.5 mm holes, aligning with a 37 x 32 mm hole pattern. Attach compatible Hettich hinges and utilize the direct height adjustment to fine-tune door alignment. Ideal for both new assembly and adjustments in fitted cabinetry.

FAQ

Which hinges are compatible with this mounting plate?
This plate is designed for Sensys, Novisys, and Intermat stud hinges.
How is the height adjusted?
The direct adjustment mechanism allows for vertical movement of +2 mm or -2 mm after installation.
What material is used for the plate?
It is made from steel with a nickel-plated finish.
What is the required drilling size for installation?
Use 2.5 mm diameter holes in particleboard panels for mounting screws.
What is the mounting distance and hole pattern?
The distance is 3.0 mm and the hole line is 37 x 32 mm.

mvm-dt-2025-07-07

Product Details

Brand	Hettich
Finishing	nickelé
Type of assembly	avec vis pour panneaux à particules
Centre distance (mm)	3

Reference FGT-234102

Condition New
