Nickel-Plated Mounting Plate with Special Screws, Expansion Sleeves (for Ø5 x 12mm Drilling), Direct Height Adjustment

Name: Nickel-Plated Mounting Plate with Special Screws, Expansion Sleeves (for Ø5 x 12mm Drilling), Direct Height Adjustment
Brand: Hettich
SKU: FGT-234113
Price: 1.5 EUR
Availability: InStock

Inc. Ex.

Estimated delivery date : Monday 27 July

€1.50 HT

In stock

Ref : FGT-234113

Quantity

Add to your shopping List

You must be logged

Description

Product

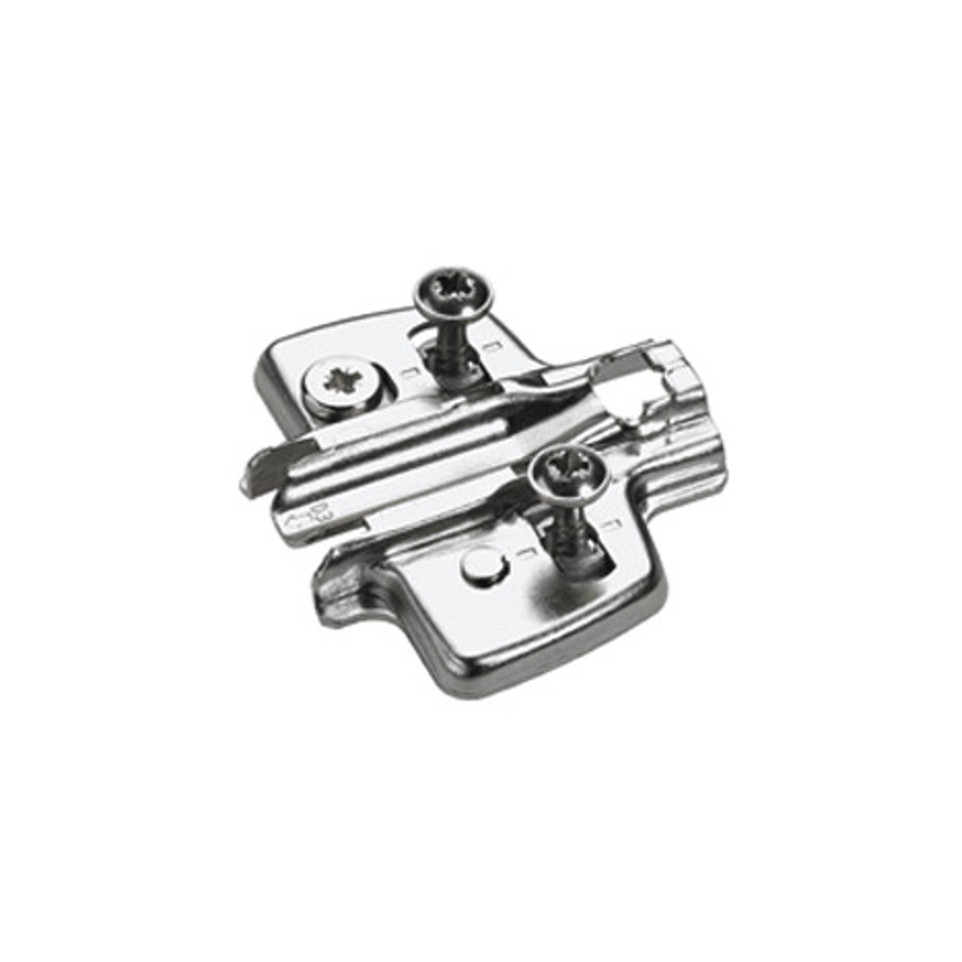

Cruciform mounting plate with direct height adjustment, designed for use with Sensys, Novisys, and Intermat hinges. Features special screws and expansion sleeves for easy installation in 5 x 12 mm predrilled holes, suitable for cabinet and furniture assembly.

Specifications

Nickel-plated steel construction for corrosion resistance
Certified according to EN 15570, quality level 3
Expansion sleeves for Ø5 x 12 mm drilling

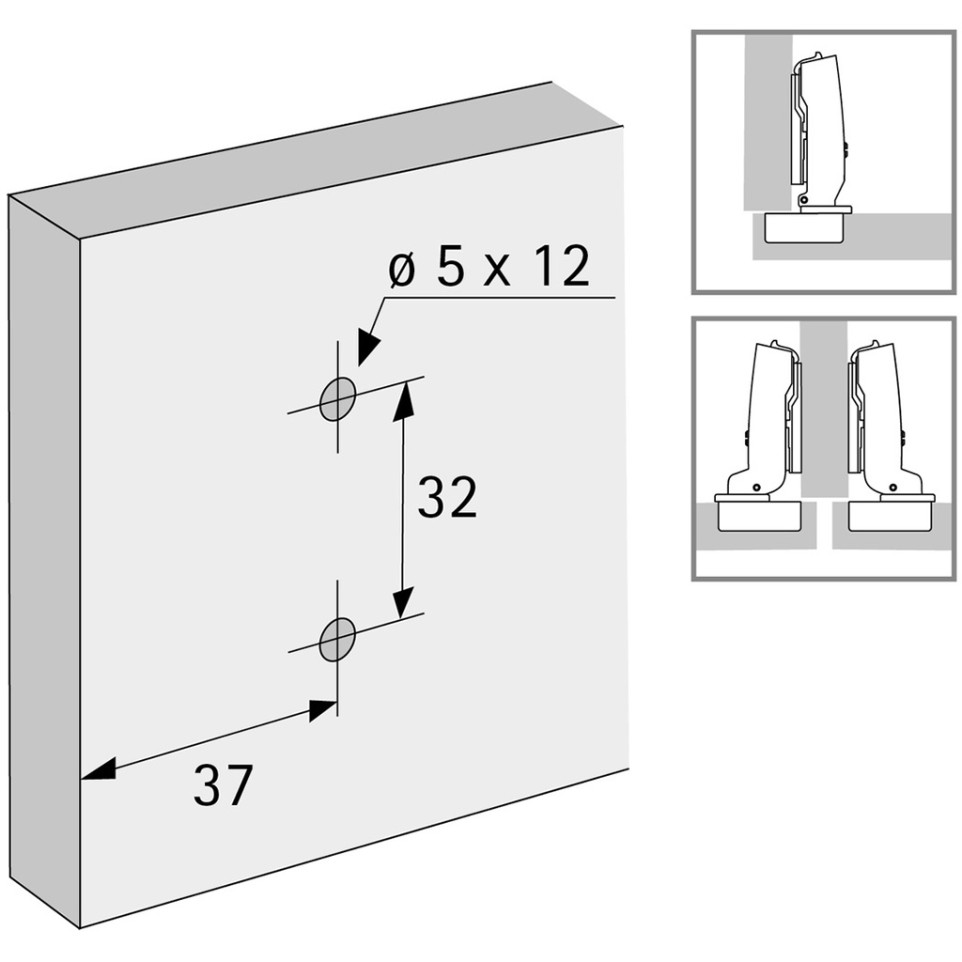

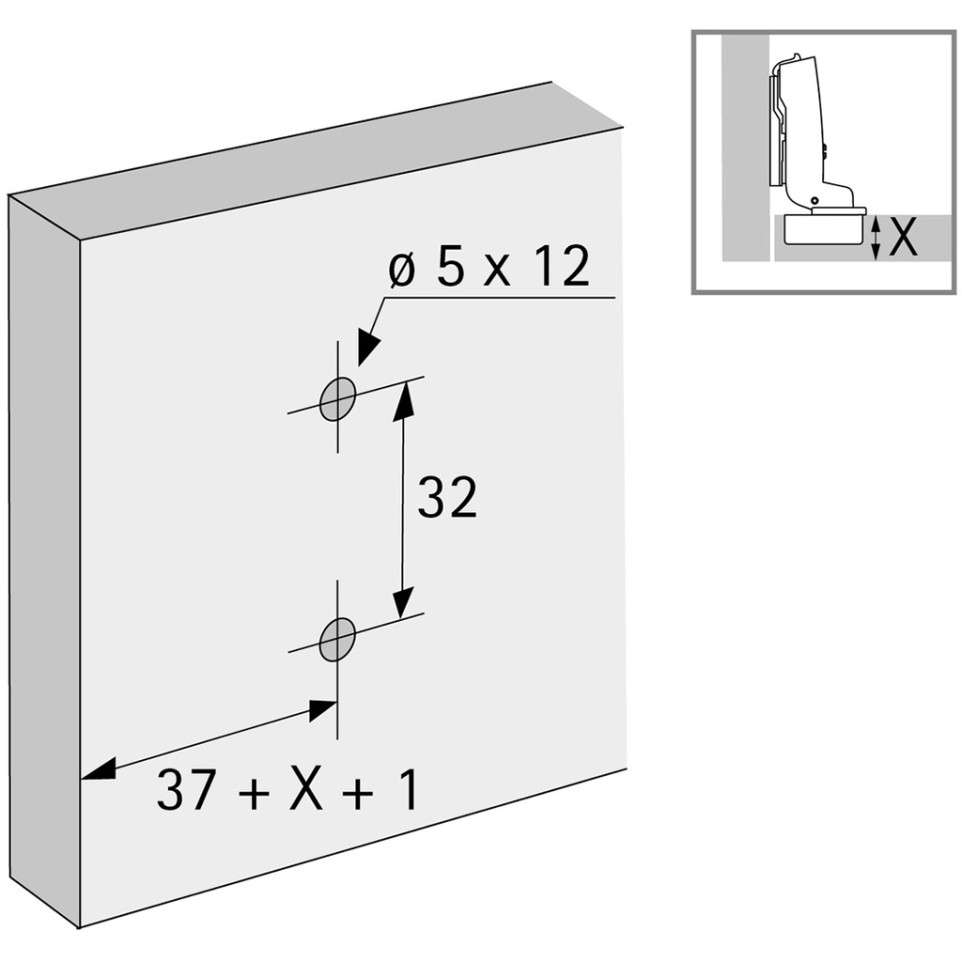

37 x 32 mm drilling pattern with 5.0 mm distance
Height adjustment range: +2 mm / -2 mm

Usage

Install the mounting plate using the supplied special screws and expansion sleeves into predrilled 5 x 12 mm holes. Adjust height directly on installation for precise alignment. Compatible with drill patterns typically found in modern cabinetry, ensuring secure and adjustable mounting for hinge systems.

FAQ

Which hinge types are compatible with this plate?
This plate is compatible with Sensys, Novisys, and Intermat hinges.
What is the adjustment range for height?
The plate allows for direct height adjustment of +2 mm and -2 mm.
What is the required drilling for installation?
You need to drill holes of 5 mm diameter and 12 mm depth for mounting.
Does the mounting plate resist corrosion?
Yes, the nickel-plated steel finish provides reliable corrosion resistance.
What standards does this product meet?
It is certified to EN 15570, quality level 3, ensuring reliable performance for furniture applications.

mvm-dt-2025-07-07

Product Details

Brand	Hettich
Finishing	nickelé
Type of assembly	avec manchon à expansion perçage Ø5x12mm
Centre distance (mm)	5

Reference FGT-234113

Condition New
