Estimated delivery date :  Tuesday 9 June
€3.48 HT
In stock

Ref : FGT-236912

Variantes

Push to Open Anthracite Catch with 40mm Travel for Pivot-Star, Stylish and Pivot-Pro Hinges with Damper and Soft-Close Push to Open Anthracite Catch with 40mm Travel for Pivot-Star, Stylish and Pivot-Pro Hinges with Damper and Soft-Close Push to open cam-follower 40mm stroke light gray for Pivot-Star, Stylish and Pivot-Pro hinges with damper and soft-close Push to open cam-follower 40mm stroke light gray for Pivot-Star, Stylish and Pivot-Pro hinges with damper and soft-close Push to open linear anthracite application, 40mm stroke for Pivot-Star, Stylish and Pivot-Pro hinges, damper and fe Push to open linear anthracite application, 40mm stroke for Pivot-Star, Stylish and Pivot-Pro hinges, damper and fe Push to open surface mounted system 32 white, 40mm stroke for Pivot-Star, Stylish and Pivot-Pro hinges, damper and soft-close Push to open surface mounted system 32 white, 40mm stroke for Pivot-Star, Stylish and Pivot-Pro hinges, damper and soft-close Push to Open White Plunger 40mm Stroke for Pivot-Star, Stylish, and Pivot-Pro Hinges with Soft Close Push to Open White Plunger 40mm Stroke for Pivot-Star, Stylish, and Pivot-Pro Hinges with Soft Close Push-to-Open Linear Light Grey Damper, 40mm Stroke for Pivot-Star, Stylish and Pivot-Pro Hinges, Soft Close Push-to-Open Linear Light Grey Damper, 40mm Stroke for Pivot-Star, Stylish and Pivot-Pro Hinges, Soft Close Push-to-Open Self-Adhesive Sys 32 Light Gray 40mm Stroke for Pivot-Star, Stylish & Pivot-Pro Hinges, Damping, Iron Push-to-Open Self-Adhesive Sys 32 Light Gray 40mm Stroke for Pivot-Star, Stylish & Pivot-Pro Hinges, Damping, Iron White Linear Push-to-Open for Pivot-Star, Stylish and Pivot-Pro Hinges with Damper, 40mm Stroke White Linear Push-to-Open for Pivot-Star, Stylish and Pivot-Pro Hinges with Damper, 40mm Stroke
Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

Push to open system 32 anthracite for stud hinges, offering a 40mm opening stroke. Designed for use with Pivot-Star, Stylish, and Pivot-Pro hinges featuring integrated soft-close. Ideal for handleless cabinet doors in modern interiors.

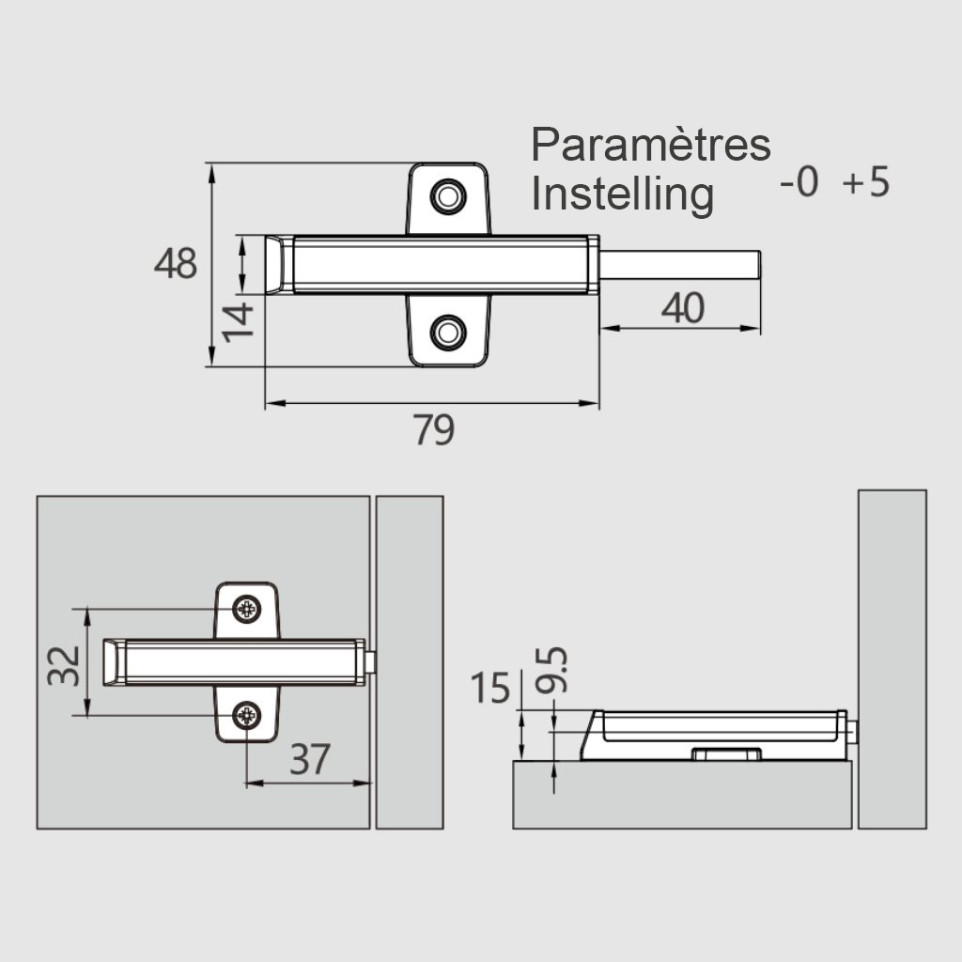

Specifications

  • Anthracite finish for a neutral, contemporary look
  • Compatible with stud hinges including Pivot-Star, Stylish, and Pivot-Pro with damping
  • 32mm system for straightforward application and installation
  • Adjustable door gap: -0 to +5mm via ejection mechanism
  • 40mm opening travel distance for smooth access
  • Robust mechanical construction for daily use

Usage

Lightly press the handleless door front—this push to open mechanism activates and opens the door up to 40mm. Fine-tune the door gap for precise alignment using the built-in ejection adjustment, accommodating various installation needs in modern cabinetry systems.

FAQ

  1. What cabinet hinges are compatible with this push to open system?
    Compatible with Pivot-Star, Stylish, and Pivot-Pro stud hinges equipped with integrated dampers.

  2. How do I adjust the door gap?
    The door gap can be adjusted easily using the integrated ejection adjustment from 0 to +5mm for perfect door alignment.

  3. Is additional hardware required for installation?
    Designed for direct application on system 32, it works with compatible stud hinges without extra hardware.

  4. What color is the product?
    The system is finished in anthracite, matching contemporary cabinetry and hardware styles.

  5. How does the soft-close feature work?
    When paired with appropriate hinges, the system ensures doors open with a gentle push and close smoothly with integrated damping.
