Usage

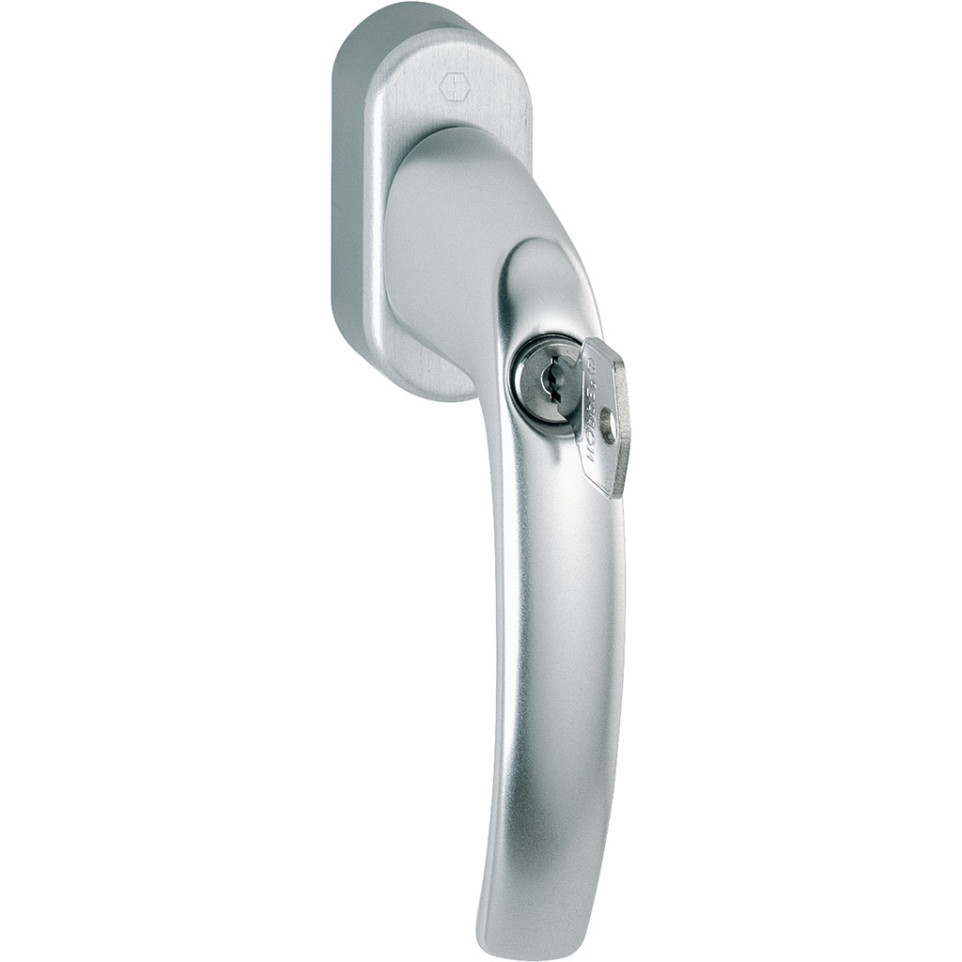

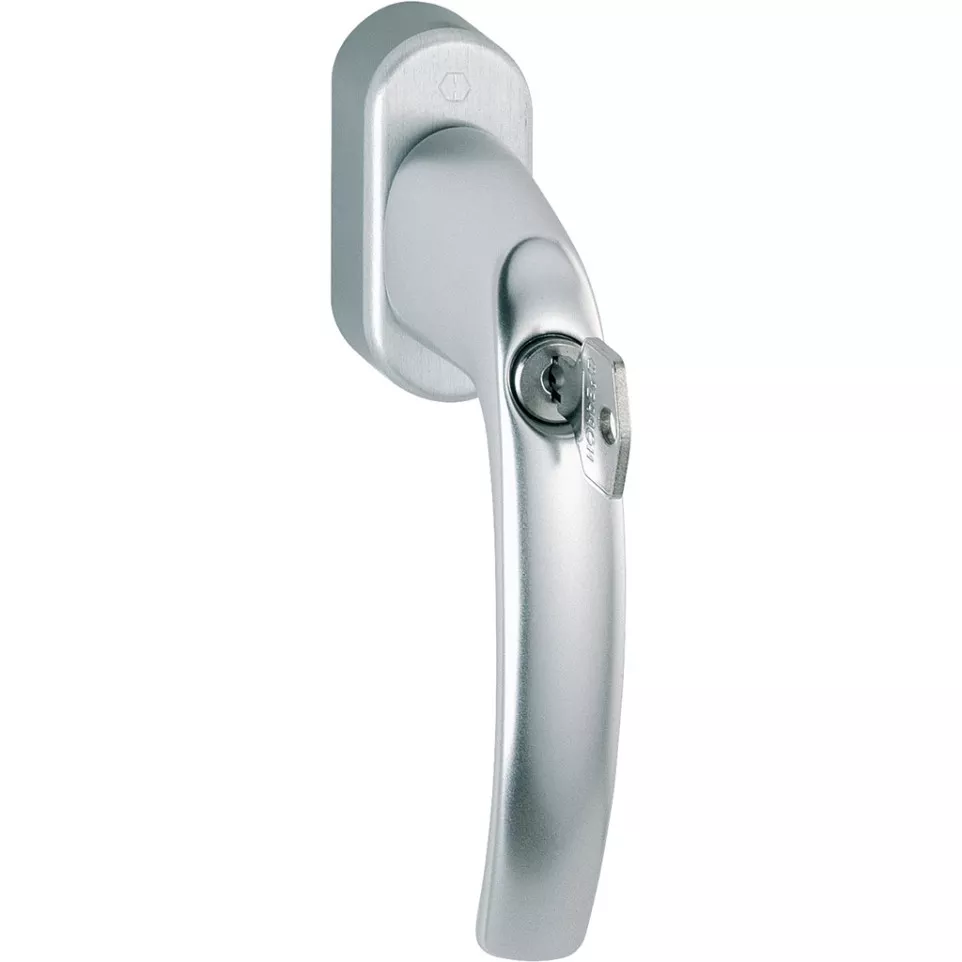

The Poignée Hoppe Atlanta à clé Secu100+Secustik is designed for securing and operating turn/tilt windows, providing controlled opening and enhanced resistance against unauthorized access in residential or commercial spaces.
Advantages
- Integrated Secu100+Secustik technology increases protection against forced entry and manipulation.
- Key lock feature enables reliable locking of the window handle for added security.
- Concealed fixing with supplied M5x50 & M5x55 screws ensures a neat installation appearance.
- Adjustable spindle (32-42 mm) supports precise fitment on various window profiles.
- Smooth operation with robust internal mechanism; may require periodic maintenance of moving parts.
Specifications
- Design/materials/technologies: Aluminium handle body, polyamide base with supporting lugs, solid Hoppe spindle. Keyed locking cylinder for increased security. Features patented Secu100+Secustik anti-manipulation system.
- Durability/certifications/standards: Tested to DIN EN 13126-3:23/180-0150/03/C1 and RAL-GZ 607/9 standards for mechanical performance and safety.
- Measurable performance: Supports sash thicknesses from 32 to 42 mm; stop position at every 90° rotation.
- Differentiating features: Includes two fixing screws (M5x50 & M5x55), concealed fastenings, removable cover cap, compatible with most tilt-and-turn window systems.
How it works
The handle mounts onto the window frame using the included screws. Turning the handle tilts or turns the sash as needed. The integrated key lock secures the handle in place, while Secu100+Secustik technology prevents manipulation from outside attempts to force or tamper with the closing points.
