Adjustable Bracket for UCS Quasar and Vega / pc
€37.90
In stock
Product

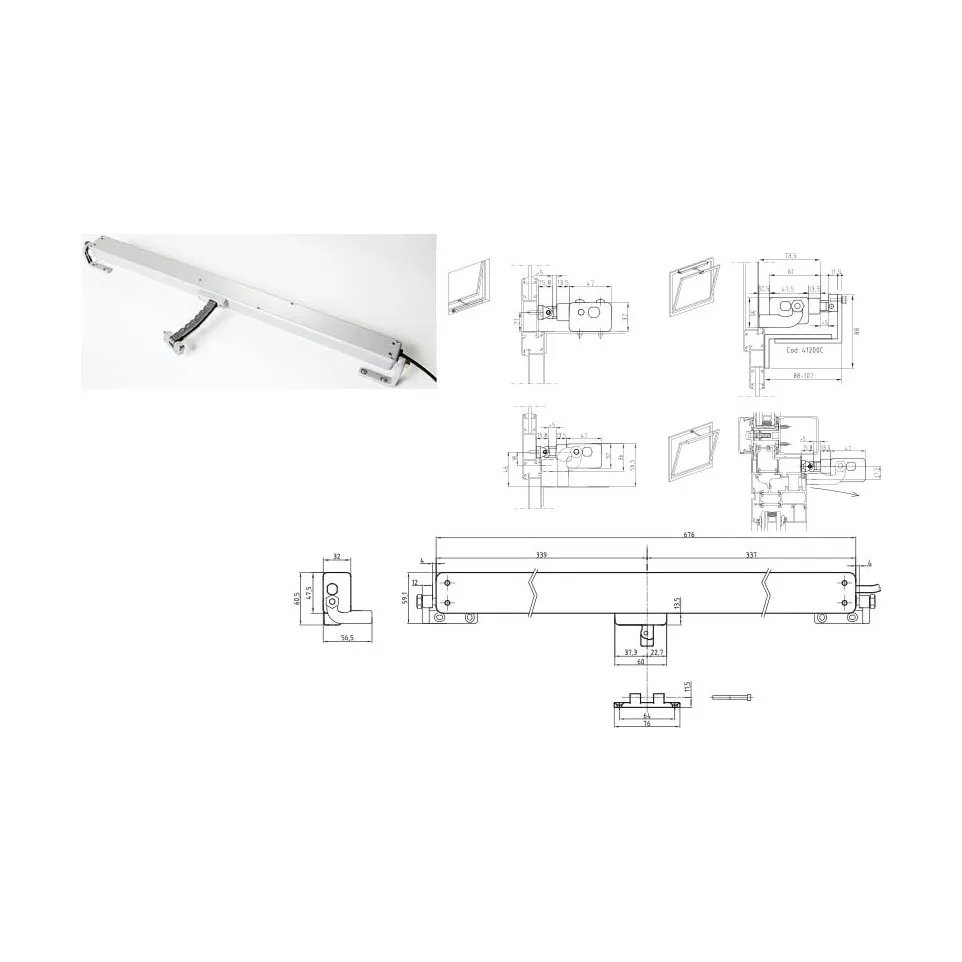

The UCS Quasar 24 VDC electric rack actuator is a compact window operator featuring a slim profile of 47 x 32 mm. Designed for automated window control, it is suitable for various commercial and industrial ventilation applications.
Specifications
- Aluminum casing with a reduced section: 47 x 32 mm
- Double-link stainless steel chain with central chain exit
- Electronic limit stop function
- Supplied with 1.5 m electric cable and pivoting brackets
- 24 VDC voltage operation with polarity inversion
- Operating force: 300 N
- Stroke: 500 mm
- Speed: approximately 15 mm/s
- Maximum current absorption: 0.9 A
- Protection class: IP 40
Usage
Connect the actuator directly to a window for precise opening and closing through electronic control. The double-link chain provides strong, stable movement, and the electronic stop ensures safe operation. Installation is straightforward with the included cable and pivot brackets, making it ideal for integration into building management systems and smoke ventilation setups.
FAQ
-
What type of windows is the UCS Quasar actuator compatible with?
It is compatible with top-hinged windows, skylights, and outward-opening frames where automatic opening and closing are required. -
Is the chain made of stainless steel?
Yes, the actuator is equipped with a reinforced double-link stainless steel chain ideal for durability and longevity. -
How is the end of travel for the window controlled?
The device uses electronic limit stops for precise and reliable end-of-travel positioning. -
Can this actuator be integrated into building management systems?
Yes, it supports integration with centralized building management systems and smoke ventilation control panels. -
What is included in the package?
The actuator comes with a 1.5 m electric cable and pivoting brackets for easy installation.
