Sliding Bracket in Aluminium with Thickness Bar and Angle Bracket for Bottom Hung...
€36.72
Usage

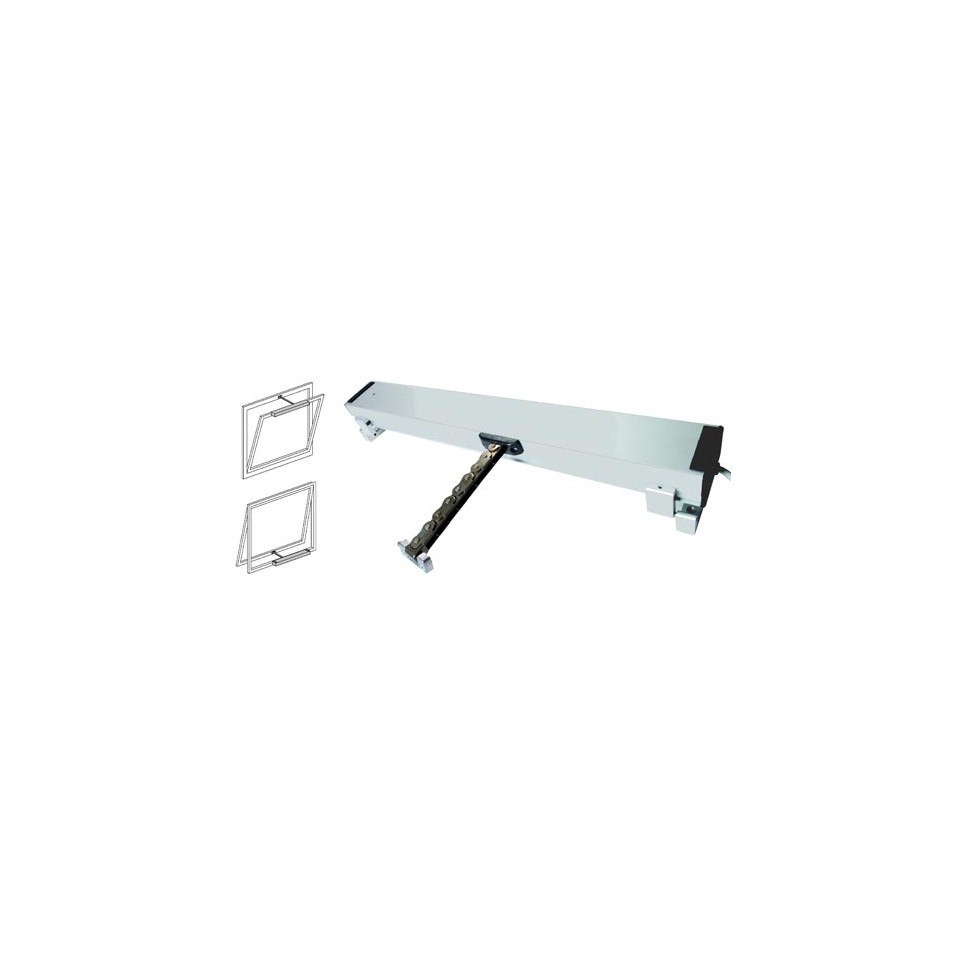

The UCS Super Master Chain Motor 230 Vac in silver automates the opening and closing of casement, awning, or skylight windows in residential, commercial, or industrial settings where reliable ventilation and accessibility are required.
Advantages
- Suitable for heavy window sashes thanks to a high push force up to 400 N
- Offers adjustable stroke lengths of 450 mm, 600 mm, or 800 mm for versatile installation
- Anodised silver aluminium finish ensures resistance to corrosion and integration into modern interiors
- Electronic stop system protects the actuator from overload during operation
- Brackets required for installation are not included and must be ordered separately
Specifications
- Constructed with a robust anodised aluminium body; uses a double-link steel chain mechanism for smooth action[1][4]
- Lifespan supported by sturdy materials; designed according to industry quality standards; suitable for intensive use[1][4]
- Push force: max. 400 N; stroke options: selectable at time of order (450 mm / 600 mm / 800 mm); locking force: up to approx. 1900 N[1][4]
- Sleek silver color with compact design allows mounting on different window types; supports parallel connection for multiple actuators on large units[1][4]
How it works
This chain motor operates by extending or retracting its double-link chain when powered at standard mains voltage (230 Vac), opening or closing the attached window sash smoothly via electronic control signals—ideal where remote ventilation control is necessary.
