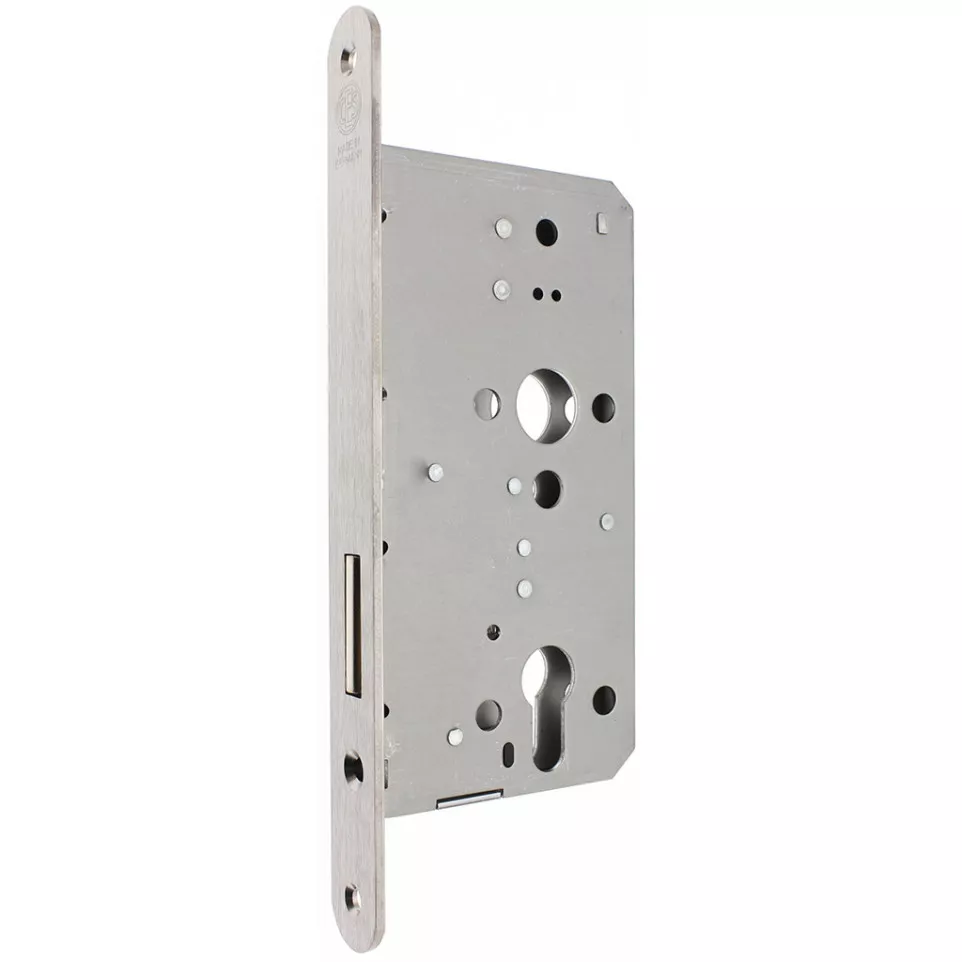

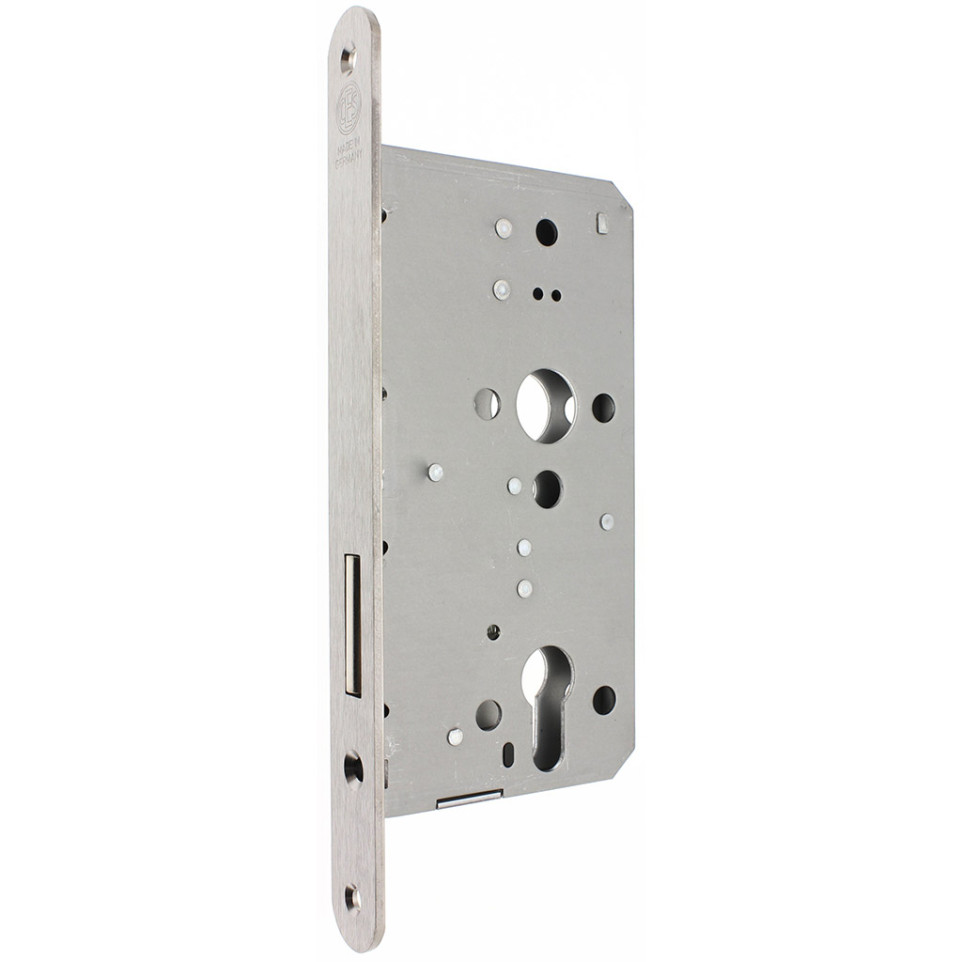

DIN Deadlock Case Only CES 330-02 PZ 55/24 Left Hand/DIN R / pc

DIN Deadlock Case Only CES 330-02 PZ...

Estimated delivery date :  Wednesday 10 June
€23.66 HT
In stock

Ref : FGT-113097

Variantes

Quantity


Description

Usage

The Serrure DIN dormant seule CES 330-02 PZ 55/24rd is designed for securing single-point doors, particularly in public or commercial spaces where robust locking of left-hand push (DIN R) doors is required.

Advantages

  • Bolt made from reinforced, nickel-plated steel ensures reliable security.
  • 3 mm thick brushed AISI 304 stainless steel faceplate provides excellent corrosion resistance and durability.
  • Robust electro-galvanized lock case offers high mechanical strength for frequent use.
  • Slim, rounded faceplate (24 mm) facilitates installation on narrow profiles and modern frames.
  • Latch plate (strike plate) not included; may require specific compatibility consideration during installation.

Specifications

  • The main structure features a closed case made from electro-galvanized heavy gauge steel with a brushed AISI 304 stainless steel faceplate (ISO 1.4301), thickness: 3 mm.
  • Engineered for durability in demanding environments; suitable for external door applications thanks to its corrosion-resistant materials.
  • PZ key profile; center distance: 72 mm; backset: standard European measurement at entry of 55 mm; rounded faceplate width: 24 mm.
  • Left-hand push opening according to DIN R standards, compatible with most European profile cylinders and hardware requiring a single deadbolt mechanism only.

How it works

This mortise lock is installed within the edge of the door. When operated by a compatible cylinder and key, the reinforced deadbolt extends into the frame’s strike plate (not included), securely locking the door with one point of closure.

See more

Product Details

Brand CES
Finishing inox
Use type public
Lock type dormant seul
Centre distance (mm) 72
Opening direction poussé gauche (DIN R)
Input (mm) 55
Headrest têtière arrondie 24 mm
External door oui
Key type PZ
FGT-113097
