DIN Strikes for Flush Door Frame Stainless Steel per piece
€10.56
In stock
Usage
The CES 330-02 PZ 55/24rd right-handed/DIN L lock case is designed for single-point notch locking of doors, ideal for commercial or public buildings where straightforward access control is required.
Advantages
- Simple installation compatible with DIN L (left-hand) door configurations for right-opening doors
- Single-point locking mechanism ensures basic security and ease of maintenance[2][5]
- Suitable for environments with limited door frame space or narrow profiles[10]
- Stainless steel finish enhances corrosion resistance and durability[1]
- Lacks advanced security features, offering only standard protection[5]
Specifications

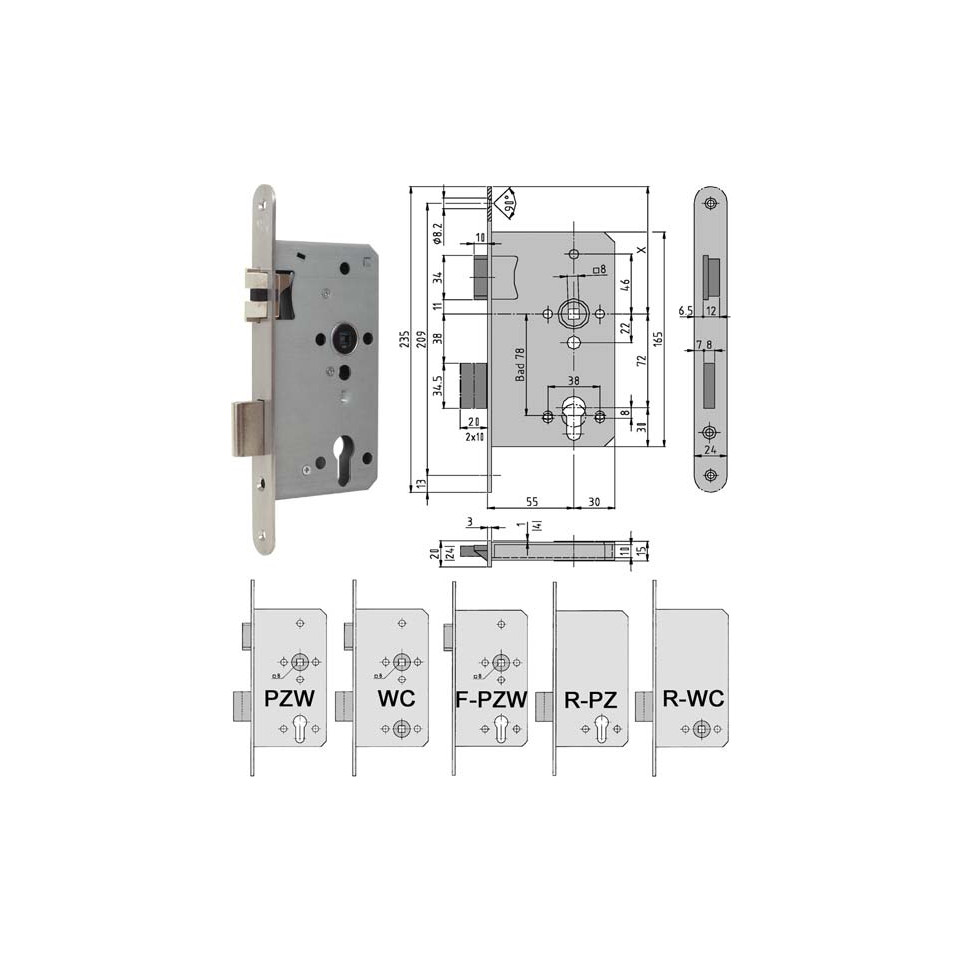

- Dormant lock case design constructed from stainless steel with an inox (matte) finish[1]
- Satisfies DIN European standards for profile locks; appropriate for regular use in commercial settings[1][7]
- PZ center distance: typically around 72 mm; backset: approximately 55 mm; faceplate width: about 24 mm—specifically sized to fit most standardized European mortise lock cutouts[1][10]
- Differentiated by its compatibility with euro-profile cylinders and simple integration into existing doors requiring a single deadbolt locking point[10]
How it works
The dormant lock body is fitted into a pre-cut slot within the door. A euro-profile cylinder (not included) interfaces through the lock, enabling users to secure or release the latch bolt via key rotation to achieve single-point locking.
