Usage
The Serrures Litto M2652 cylindre PZ 35 / 110 droite is designed for secure single-point locking of right-handed doors, suitable for PVC, metal, or wooden door applications in residential and commercial settings.
Advantages
- Compatible with multiple door materials: PVC, metal, and wood
- Cylinder PZ design allows use with standardized Euro profile cylinders
- Durable epoxy-coated case protects against corrosion and wear
- Smooth operation through balanced latch and reinforced internal springs
- No advanced security options; intended for standard access points rather than high-security areas
Specifications

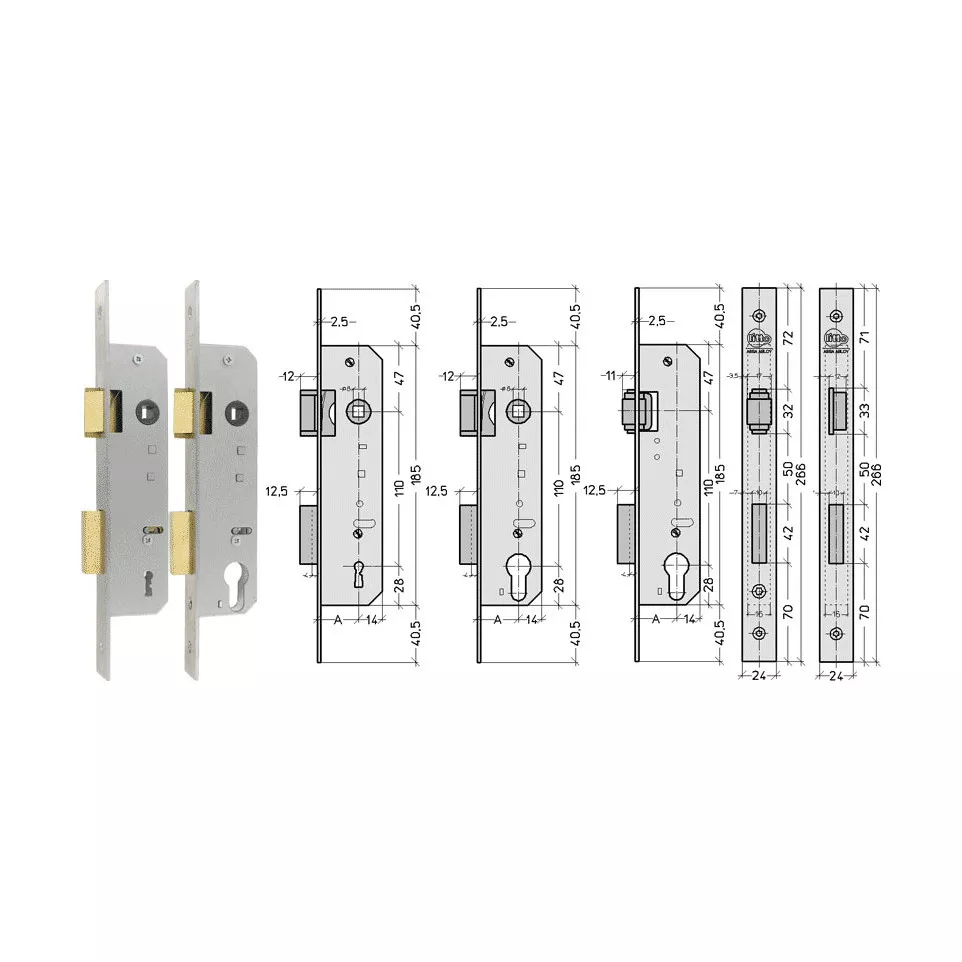

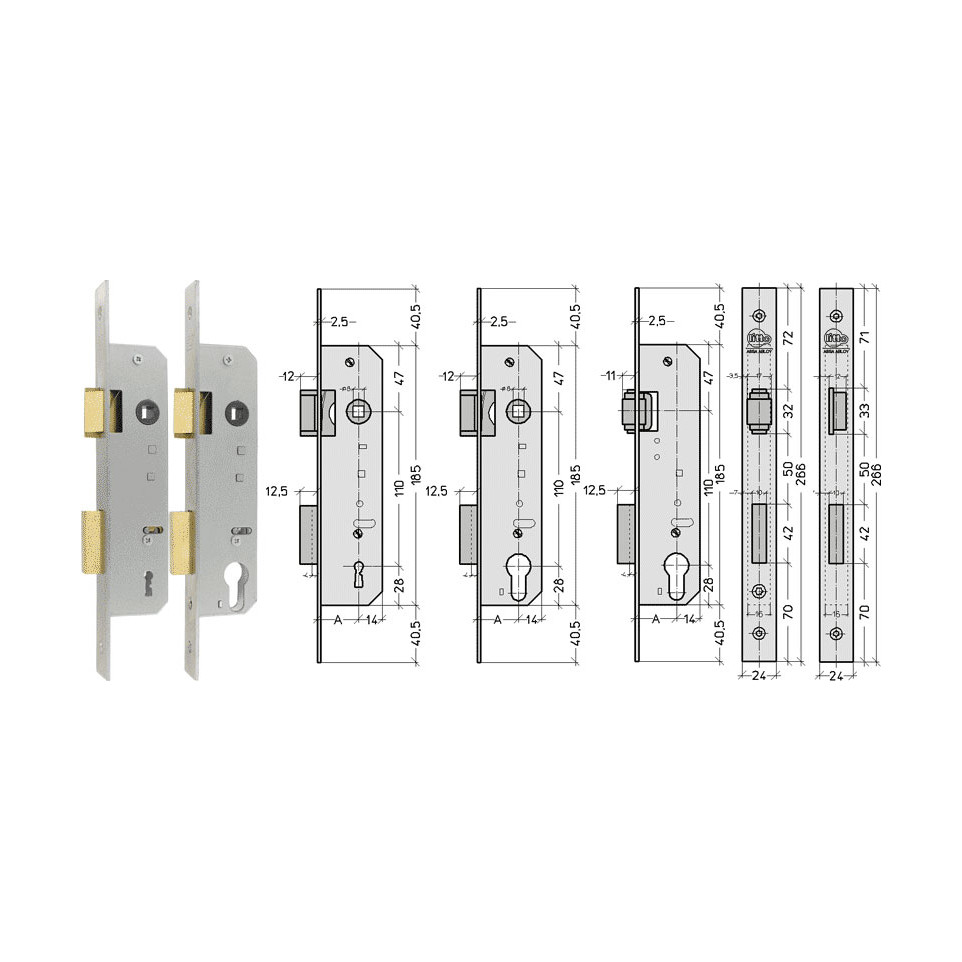

- Design: Closed case in epoxy lacquered steel; stainless steel faceplate (width: 24 mm; length: approx. 266 mm)
- Bolt throw (deadbolt): Single turn with a travel of 12.5 mm; follower square size: 8 mm diameter
- Cylinder compatibility: For Euro profile cylinder PZ with shortened cam (10 mm), e.g., Litto K47M series[1][3]
- Permanence ensured by resilient launch spring and counter-spring systems to enhance operational longevity[1][3]
How it works
This lock is installed as a mortise unit into the edge of the door. When engaged via key or thumbturn, the mechanism advances the deadbolt by one full turn to secure the door at a single point. Compatible only with right-hand doors using an appropriate cylinder.
