Usage
The Serrures Litto M2652 cylinder PZ 23 / 110 right-handed lock is designed for secure locking of PVC, metal, and wooden doors in residential and light commercial settings.
Advantages
- Compatible with standard Euro profile cylinders featuring a shortened cam (10 mm), such as the Litto K47M
- Features a closed case with epoxy coating for enhanced resistance to wear and corrosion
- Suits multiple door materials including PVC, metal, and wood for versatile installation
- Smooth operation provided by robust launching spring and anti-lever handle counter-spring mechanisms
- Minor drawback: Single-point locking offers basic security—less suitable for high-risk entrances compared to multi-point systems
Specifications

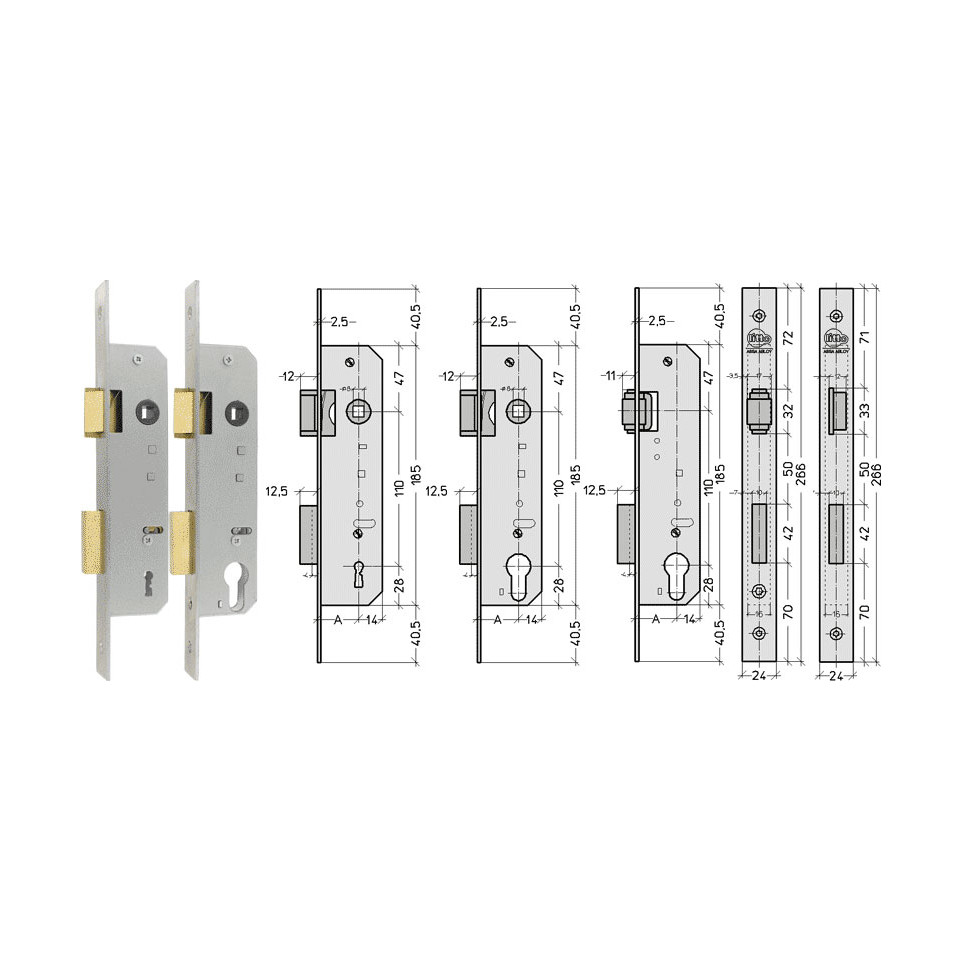

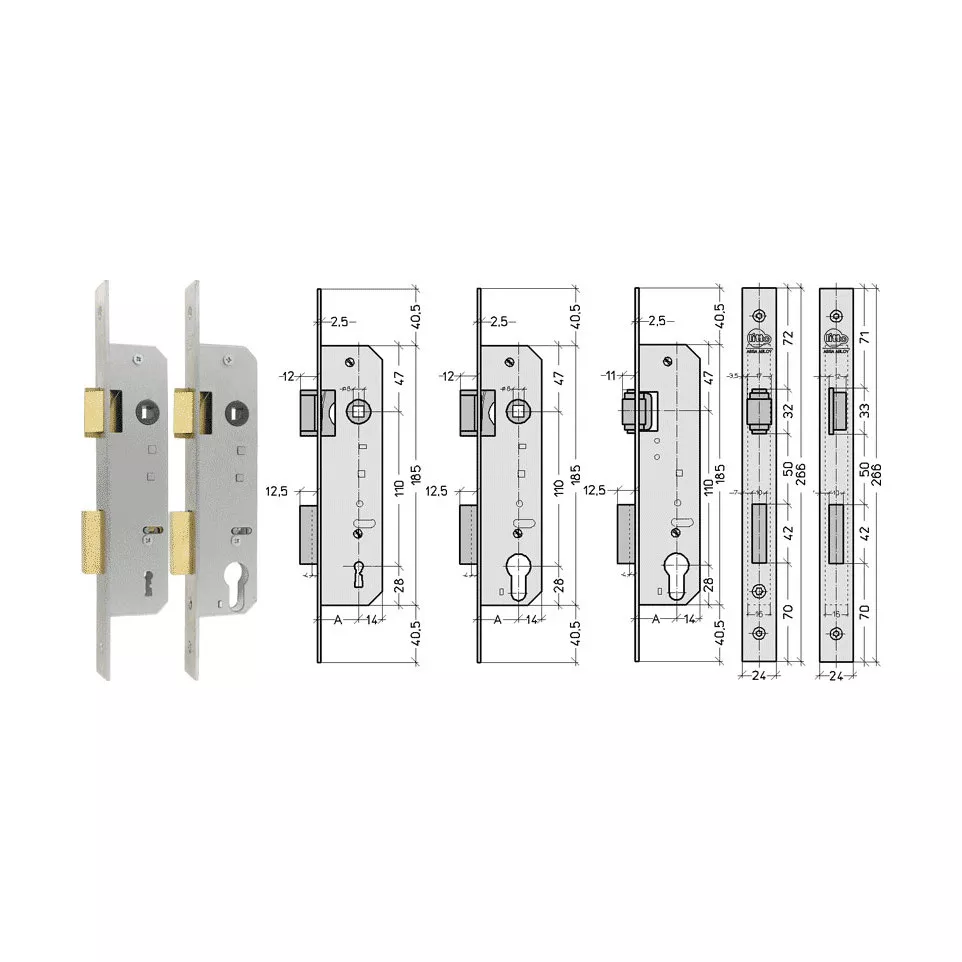

- Design: Closed epoxy-lacquered steel box; stainless steel square front plate, width: 24 mm; backset: 23 mm; center distance (entr'axe): 110 mm; nut square: 8 mm diameter
- Main materials: Epoxy-coated steel case, stainless steel front plate for durability against daily use and environmental factors
- Pêne dormant (deadbolt) travel: Single-turn mechanism providing a throw of approximately 12.5 mm per action
- Cylinder compatibility: For Euro profile PZ cylinders with a reduced cam profile (10 mm); right-hand opening orientation only
How it works
This mortise notch lock is installed within the door edge. Once fitted with a compatible cylinder, turning the key rotates the deadbolt and latch mechanism to securely lock or unlock the door in one motion.
