Usage

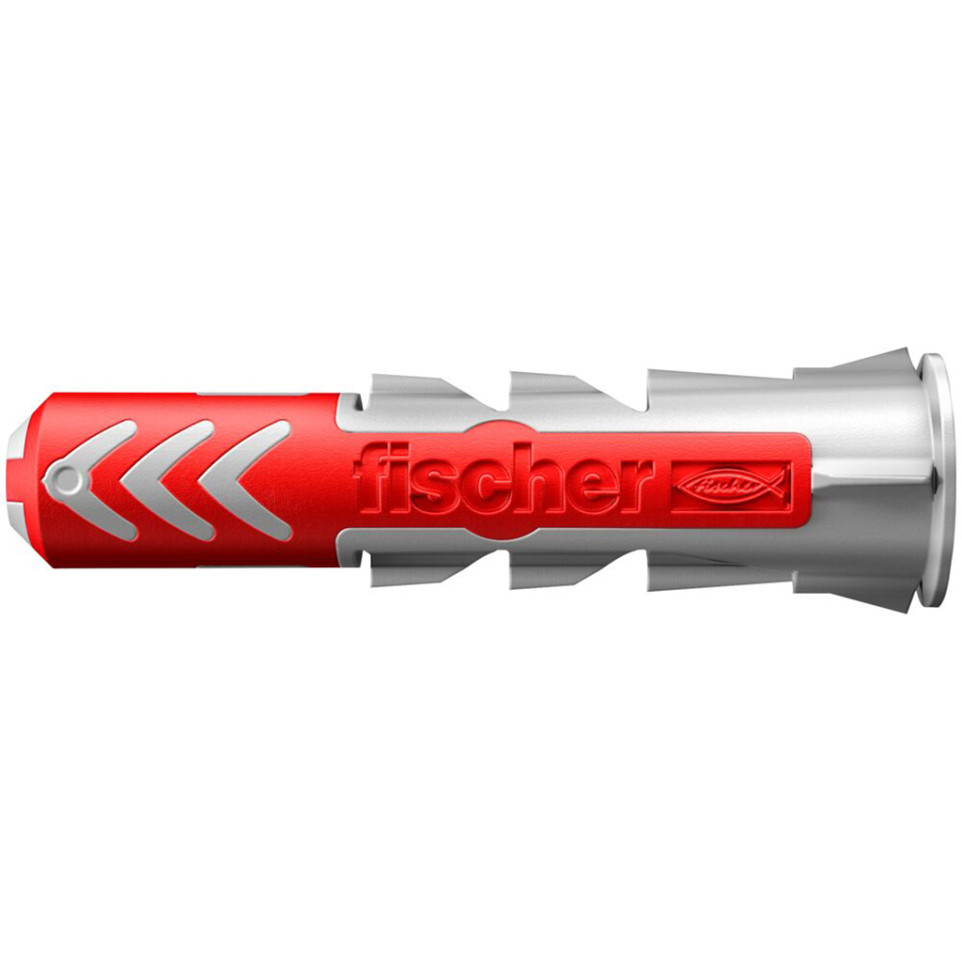

The Cheville Fischer DuoPower 10x50 mm is designed for secure and reliable anchoring in a wide range of building materials, including concrete, solid brick, hollow block, plasterboard, and natural stone. It is suitable for fixing shelves, wall cabinets, lighting fixtures, and other standard applications in interior construction.
Advantages
- Combines two material components to adapt automatically to solid or hollow substrates for optimal load capacity.
- Anti-rotation serrations prevent the anchor from turning during installation in various materials.
- Narrow rim prevents the plug from slipping deeper into the drill hole while ensuring easy flush mounting.
- Short length allows fast installation without deep drilling requirements.
- A distinct “feel-good factor” provides clear feedback when fully installed; correct installation can be felt instantly.
Specifications
- Bimaterial design: high-strength nylon with dual-component injection molding for flexible expansion and folding functions[6][3].
- Suits use in concrete, full/hollow bricks, aerated concrete, plasterboard; meets common anchoring standards[6][8].
- Anchor diameter: 10 mm; anchor length: 50 mm; minimum drill hole depth: 60 mm; compatible screw diameter: 6–8 mm[1][8].
- No plug slippage thanks to narrow edge design; stress-free expansion at anchor neck reduces risk of substrate damage[6].
How it works
The DuoPower anchor adapts its function—expanding or folding—depending on the base material. Drill a Ø10 mm hole at least 60 mm deep. Insert the plug flush with the surface and drive in an appropriate screw (Ø6–8 mm) until resistance increases noticeably to indicate secure fixation[1][3][8].
