Usage
The Fischer DuoPower 14x70 mm anchor is designed for secure standard fixings in a wide range of construction materials, including concrete, solid and perforated brick, aerated concrete, plasterboard, and natural stone. Ideal for mounting shelves, cabinets, or fixtures where strong anchorage is needed.
Advantages
- Adapts automatically to the substrate with expansion, folding, or knotting action for optimal hold in solid and hollow materials[1][10].
- Made from high-quality two-component nylon for increased load capacity and durability[1][4][10].
- Equipped with anti-rotation features to prevent turning during installation[5][6].
- Narrow plug rim prevents slipping into the drill hole and ensures correct positioning[6][7].
- The long version with a greater anchoring depth provides secure fixation even in problematic or thick substrates[4][10].
Specifications

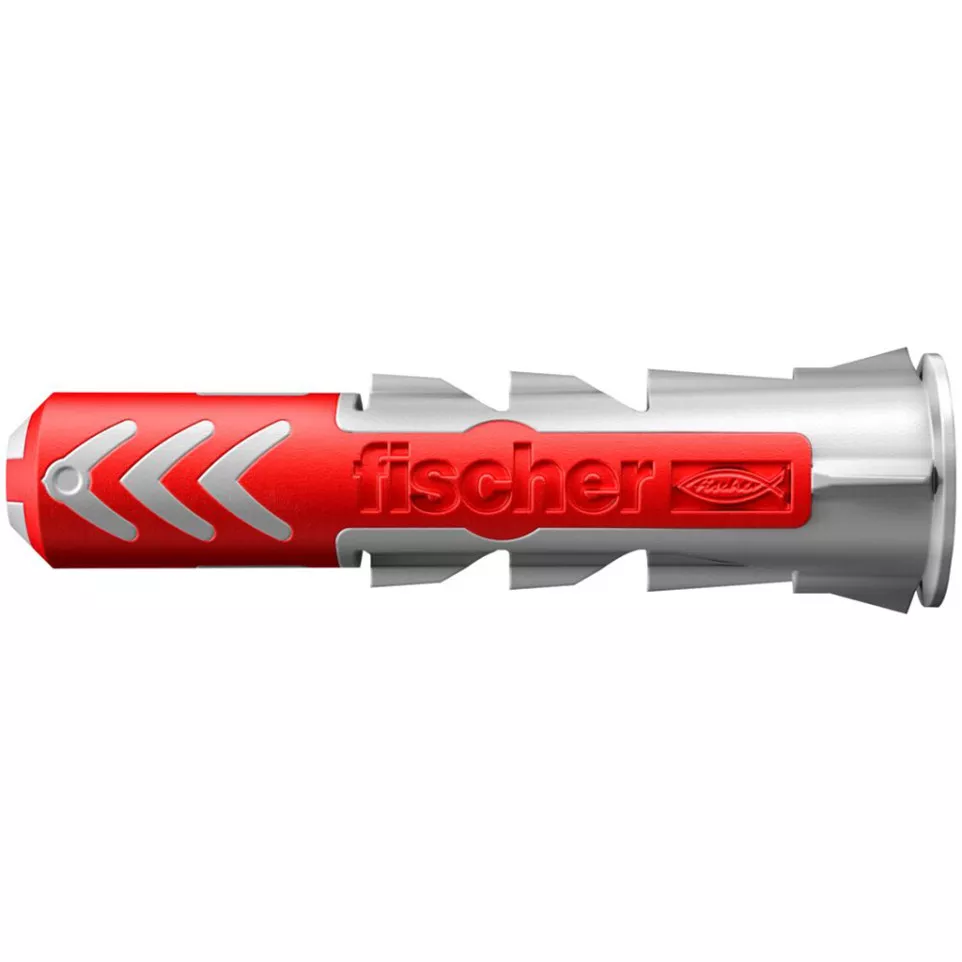

- Design: Two-component plastic anchor (gray nylon body with red expansion wings) facilitates multiple functions—spreading, folding, knotting—for superior adaptability across various substrates[3][6].
- Durability: High-performance nylon construction enhances corrosion resistance; suitable for long-term interior use; CE-certified (where required)[1][5].
- Measurable performance:
- Nominal diameter: 14 mm
- Anchor length: 70 mm
- Minimum drilling depth: 80–100 mm
- Compatible screw diameter: 10–12 mm
- Pack size: 20 pieces per box [1][4].
- Differentiating features:
- Functions equally well in both push-in and push-through mounting applications;
- Expansion pressure-free neck helps prevent damage at drill hole edges;
- Suitable for fixing heavy loads due to increased anchoring depth [4][6].
How it works
The DuoPower anchor combines hard and soft components that activate different mechanisms—expansion in solid materials or folding/knotting in hollow ones—when the screw is inserted. This ensures a secure hold tailored to each material type without slipping or turning during installation[3][6]. Simply drill the appropriate hole size (14 mm), insert the anchor flush with the surface, then drive in a compatible screw.
